TOYOTA COASTER BB42R-BRMSS / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

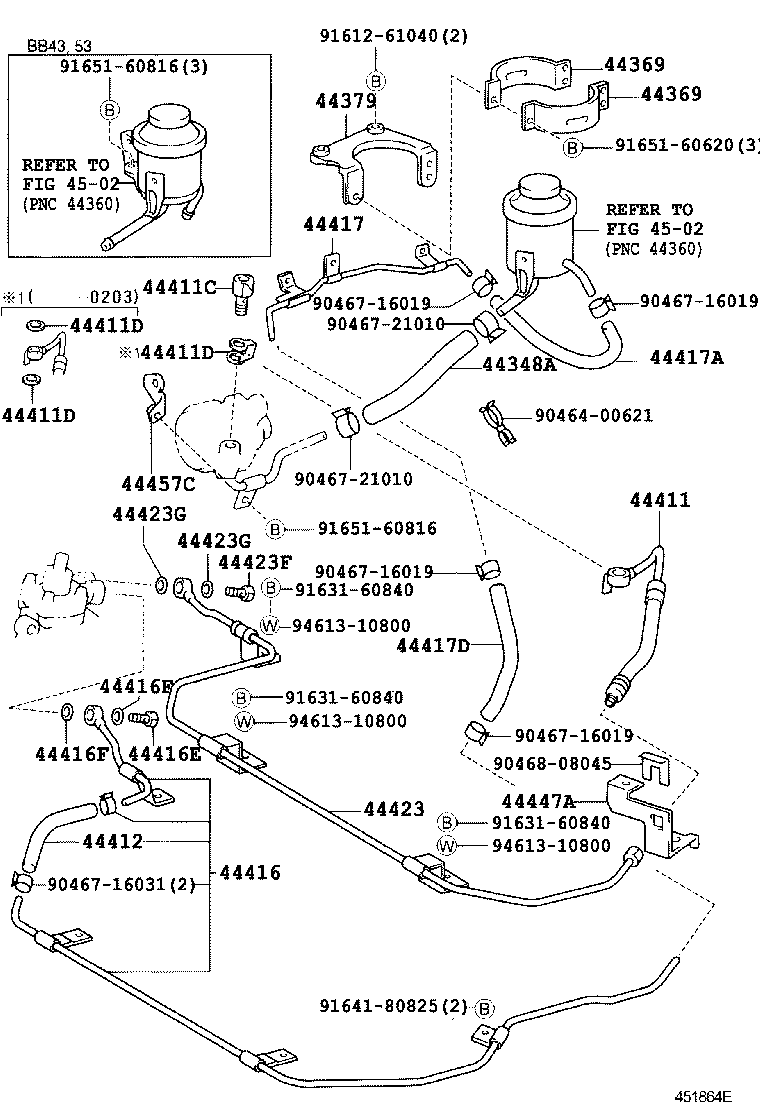

POWER STEERING TUBE

(9907- )BB4#,50..RHD..DSL,TD

COASTER | POWER STEERING TUBE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44369 - BRACKET, OIL RESERVOIR, NO.1 44369 - BRACKET, OIL RESERVOIR, NO.1 44379 - BRACKET, OIL RESERVOIR, NO.2 44411 - HOSE, PRESSURE FEED 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44412 - HOSE, RETURN 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44416E - BOLT, UNION(FOR RETURN TUBE) 44416F - GASKET(FOR RETURN TUBE) 44416F - GASKET(FOR RETURN TUBE) 44417 - TUBE, RETURN, NO.2 44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2) 44417D - HOSE(FOR RETURN TUBE TO RESERVOIR) 44423 - TUBE, OIL PUMP TO GEAR BOX 44423F - BOLT, UNION 44423G - GASKET, UNION BOLT 44423G - GASKET, UNION BOLT 44447A - BRACKET, HOSE SUPPORT, NO.1 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
