TOYOTA CROWN CHINA GRS208L-DETBKC / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

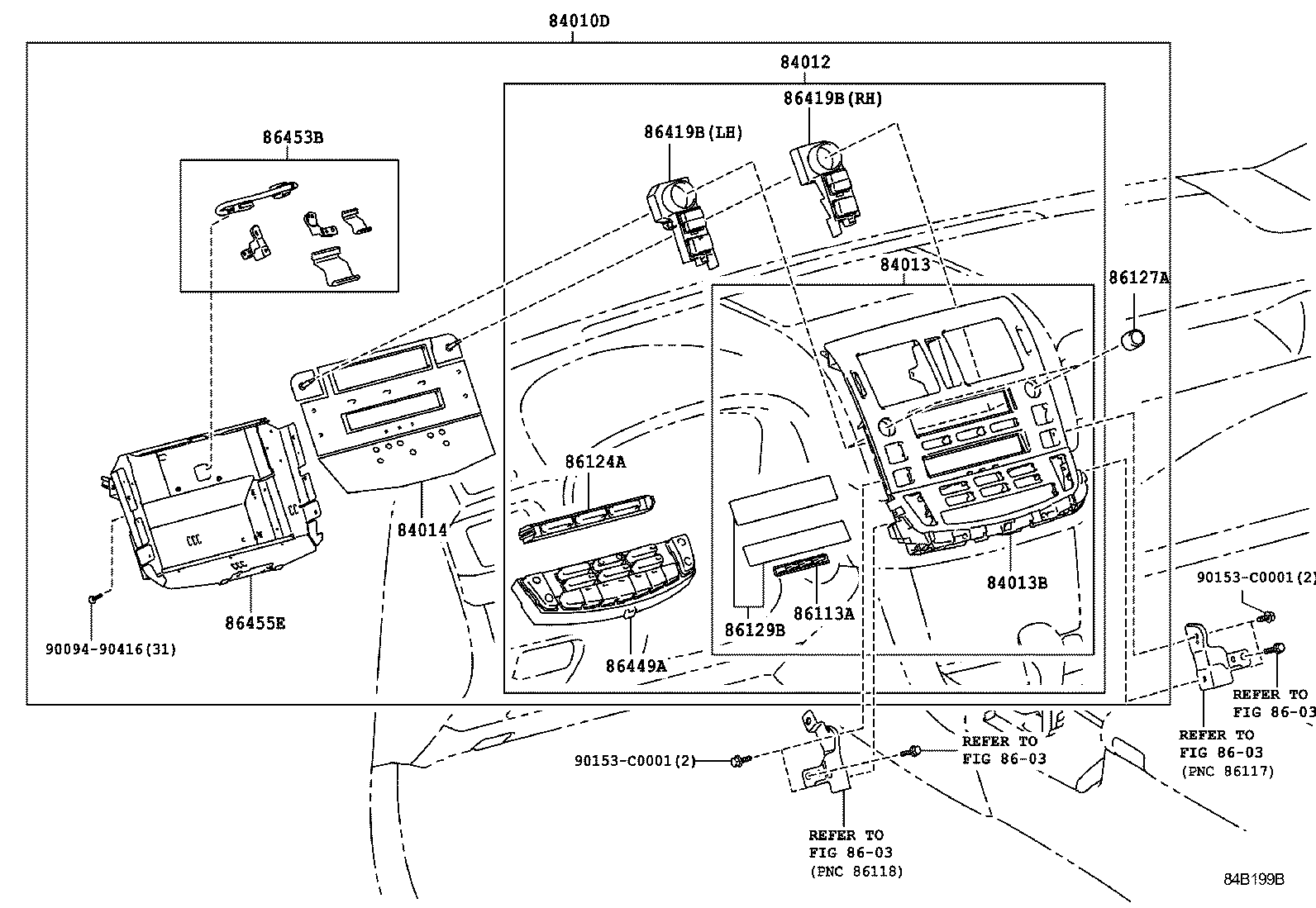

INSTRUMENT PANEL 2/2 ILLUST NO. 5 OF 9(0912- )ROYAL ; (0912- )GRS202..ROYEX

 CROWN CHINA |  SWITCH RELAY COMPUTER 84010D - CONTROL & PANEL ASSY, INTEGRATION 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION 84013 - PANEL SUB-ASSY, INTEGRATION 84013B - PANEL SUB-ASSY, INTEGRATION, NO.2 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 86113A - SWITCH, MULTI-DISPLAY 86124A - KNOB, RADIO RECEIVER TONE CONTROL 86127A - KNOB,RADIO RECEIVER, NO.1 86129B - FILTER, MULTI-DISPLAY 86419B - KNOB, AUDIO MODULE 86419B - KNOB, AUDIO MODULE 86449A - KNOB,HEATER CONTROL MODULE 86453B - WIRE, MULTI-MEDIA MODULE 86455E - CASE, MULTI-MEDIA MODULE  ** Std Part  ** Std Part  ** Std Part
