TOYOTA CROWN CHINA UZS200L-DETCKC / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CYLINDER HEAD

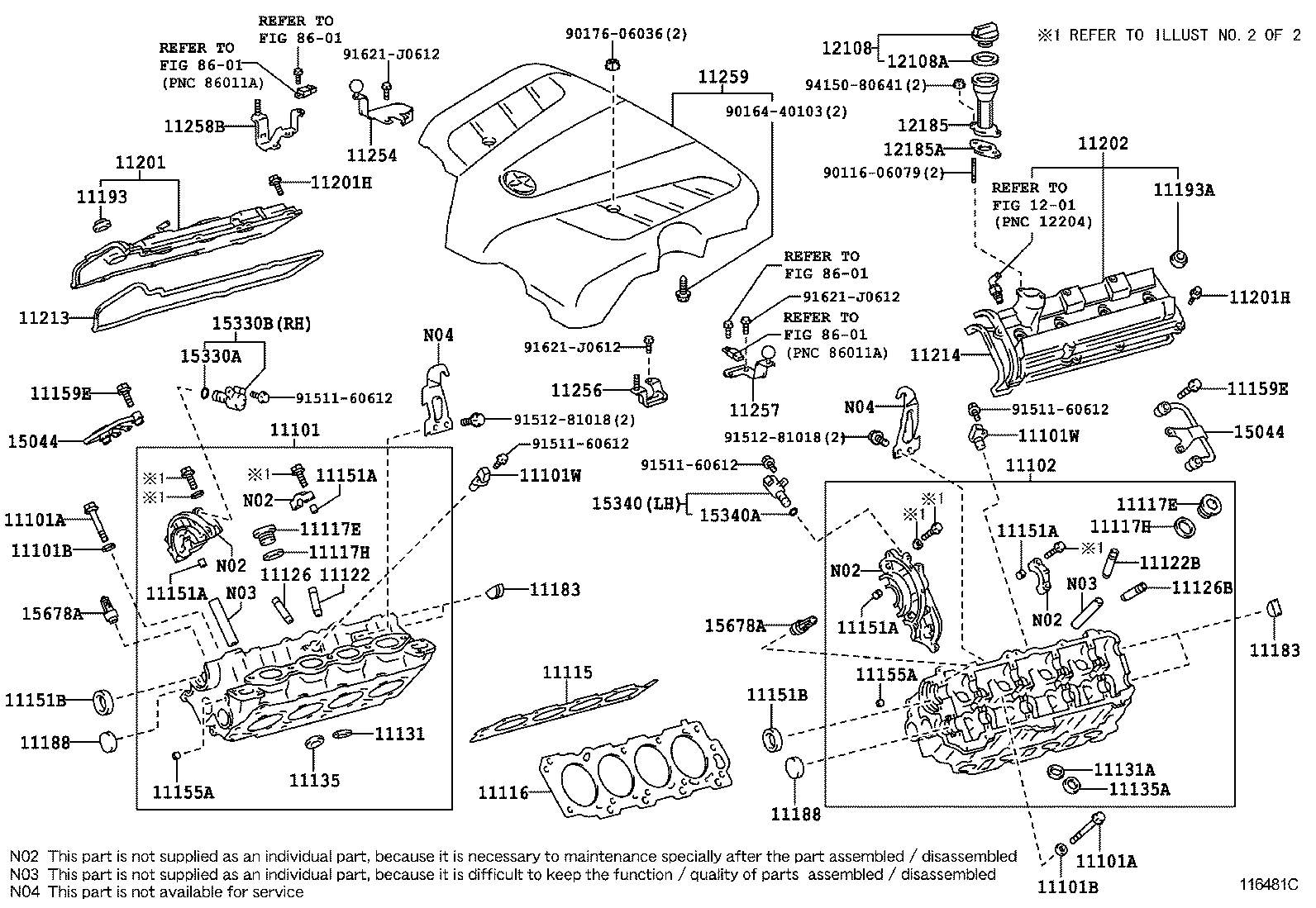

ILLUST NO. 1 OF 2(1002- )3UZFE

CROWN CHINA | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101W - SENSOR, CRANK POSITION, NO.1 11101W - SENSOR, CRANK POSITION, NO.1 11102 - HEAD, CYLINDER, LH 11115 - GASKET, CYLINDER HEAD 11116 - GASKET, CYLINDER HEAD, NO.2 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117H - GASKET(FOR WATER HOLE) 11117H - GASKET(FOR WATER HOLE) 11122 - BUSH, INTAKE VALVE GUIDE 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 11126 - BUSH, EXHAUST VALVE GUIDE 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 11131 - SEAT, INTAKE VALVE 11131A - SEAT, INTAKE VALVE, NO.2 11135 - SEAT, EXHAUST VALVE 11135A - SEAT, EXHAUST VALUE, NO.2 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) 11155A - PIN, RING W/HEAD 11155A - PIN, RING W/HEAD 11159E - BOLT(FOR CAMSHAFT OIL FEED PIPE) 11159E - BOLT(FOR CAMSHAFT OIL FEED PIPE) 11183 - PLUG, SEMICIRCULAR 11183 - PLUG, SEMICIRCULAR 11188 - PLUG, CAMSHAFT HOUSING 11188 - PLUG, CAMSHAFT HOUSING 11193 - GASKET, SPARK PLUG TUBE 11193A - GASKET, SPARK PLUG TUBE, LH 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201H - BOLT(FOR CYLINDER HEAD COVER) 11201H - BOLT(FOR CYLINDER HEAD COVER) 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH 11213 - GASKET, CYLINDER HEAD COVER 11214 - GASKET, CYLINDER HEAD COVER, NO.2 11254 - BRACKET, V-BANK COVER, NO.1 11256 - BRACKET, V-BANK COVER, NO.2 11257 - BRACKET, V-BANK COVER, NO.3 11258B - BRACKET, V-BANK COVER, NO.4 11259 - COVER, V-BANK ** Refer Fig 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12185 - HOUSING, OIL FILLER CAP 12185A - GASKET, OIL FILLER CAP HOUSING 15044 - PIPE SUB-ASSY, CAMSHAFT OIL FEED 15044 - PIPE SUB-ASSY, CAMSHAFT OIL FEED 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) 15678A - FILTER, OIL CONTROL VALVE 15678A - FILTER, OIL CONTROL VALVE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
