TOYOTA CROWN GRS202R-AETQK / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DOOR PANEL GLASS

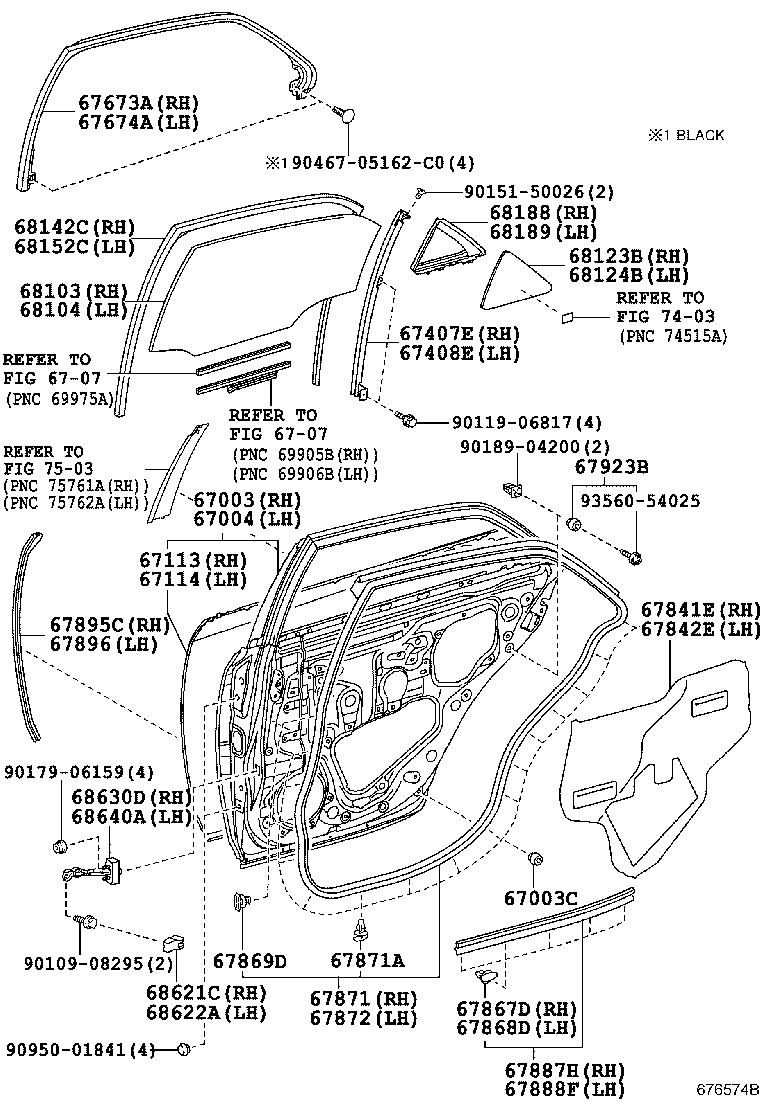

DOOR PANEL ILLUST NO. 1 OF 2(1009- )

CROWN | REAR DOOR PANEL GLASS 67003 - PANEL SUB-ASSY, REAR DOOR, RH 67003C - CUSHION, REAR DOOR PANEL 67004 - PANEL SUB-ASSY, REAR DOOR, LH ** Refer Fig ** Refer Fig 67113 - PANEL, REAR DOOR, OUTER RH 67114 - PANEL, REAR DOOR, OUTER LH 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH 67673A - GARNISH, REAR DOOR FRAME, RH 67674A - GARNISH, REAR DOOR FRAME, LH 67841E - COVER, REAR DOOR SERVICE HOLE, RH 67842E - COVER, REAR DOOR SERVICE HOLE, LH 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH 67869D - CLIP, DOOR WEATHERSTRIP 67871 - WEATHERSTRIP, REAR DOOR, RH 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) 67872 - WEATHERSTRIP, REAR DOOR, LH 67887H - WEATHERSTRIP, REAR DOOR, NO.2 RH 67888F - WEATHERSTRIP, REAR DOOR, NO.2 LH 67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH 67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH 67923B - CUSHION, REAR DOOR STIFFENER, NO.1 68103 - GLASS SUB-ASSY, REAR DOOR, RH 68104 - GLASS SUB-ASSY, REAR DOOR, LH 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH 68142C - RUN, REAR DOOR GLASS, RH 68152C - RUN, REAR DOOR GLASS, LH 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH 68621C - COVER, REAR DOOR CHECK, RH 68622A - COVER, REAR DOOR CHECK, LH 68630D - CHECK ASSY, REAR DOOR, RH 68640A - CHECK ASSY, REAR DOOR, LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
