TOYOTA CROWN GRS202R-AETQK / POWERTRAIN-CHASSIS / PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM

A960E (1009- )

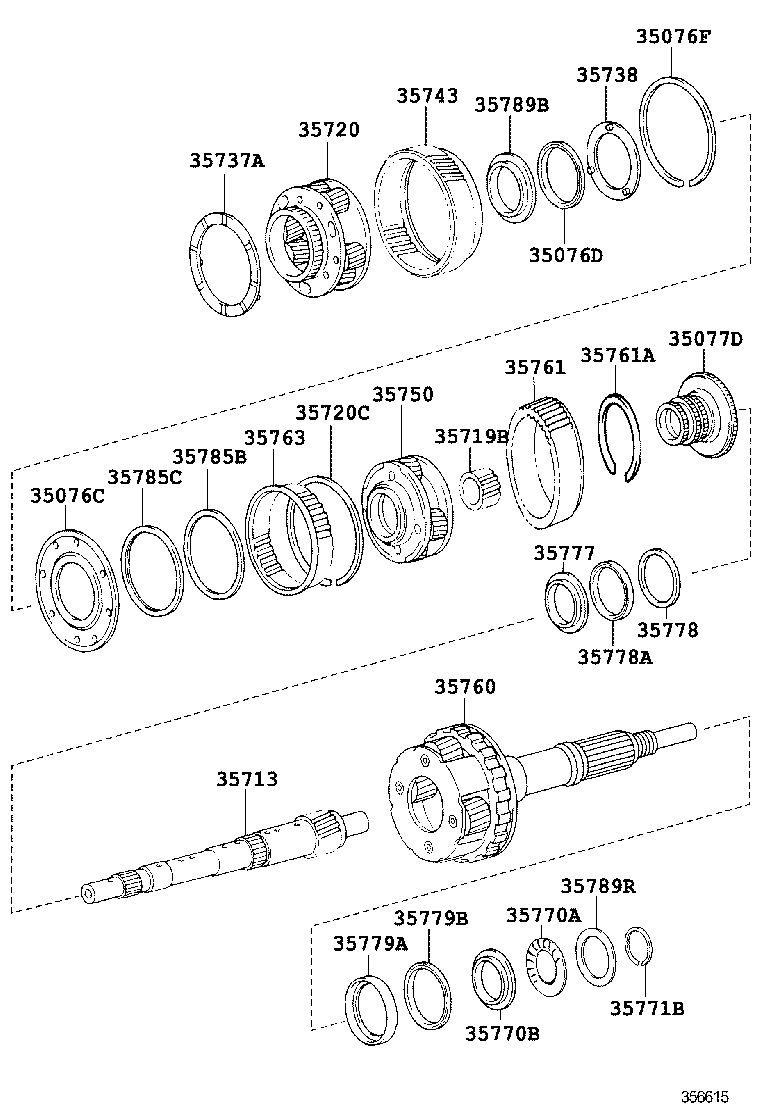

CROWN | PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR 35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE) 35076F - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE) 35077D - FLANGE SUB-ASSY, RR PLANETARY RING GEAR 35713 - SHAFT, INTERMEDIATE 35719B - GEAR, PLANETARY SUN 35720 - GEAR ASSY, FRONT PLANETARY 35720C - NUT (FOR FRONT PLANETARY GEAR) 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 35743 - GEAR, FRONT PLANETARY RING 35750 - GEAR ASSY, CENTER PLANETARY 35760 - GEAR ASSY, REAR PLANETARY 35761 - GEAR, REAR PLANETARY RING 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) 35763 - GEAR, CENTER PLANETARY RING 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) 35771B - RING, HOLE SNAP (FOR OUTPUT SHAFT, NO.1) 35777 - RACE, THRUST BEARING, NO.7 35778 - RACE, THRUST BEARING, NO.8 35778A - BEARING, THRUST NEEDLE ROLLER 35779A - RACE, THRUST BEARING, NO.9 35779B - BEARING, THRUST NEEDLE ROLLER 35785B - RACE, THRUST BEARING, NO.4 35785C - BEARING, THRUST NEEDLE ROLLER 35789B - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR) 35789R - RACE, THRUST BEARING (FOR REAR OUTPUT SHAFT)
