TOYOTA CROWN GRS202R-AETQK / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR AXLE SHAFT HUB

(1009- )

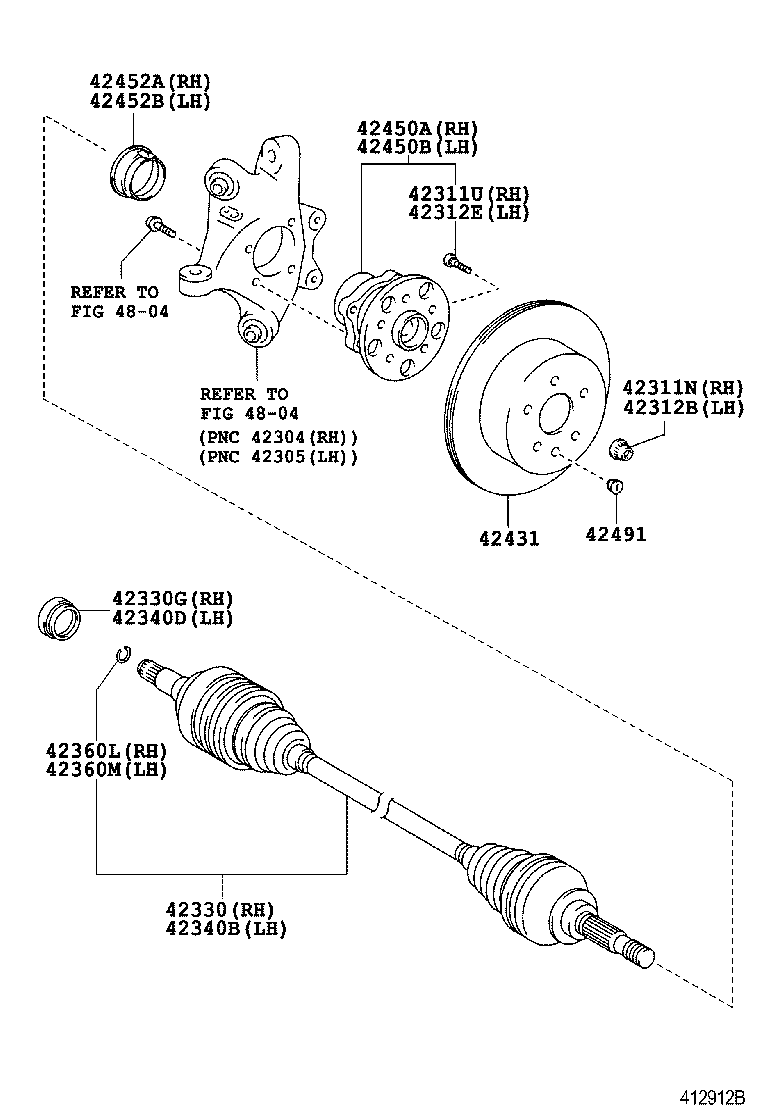

CROWN | REAR AXLE SHAFT HUB 42311N - NUT (FOR REAR AXLE SHAFT RH) 42311U - BOLT, HUB (FOR REAR AXLE RH) 42312B - NUT (FOR REAR AXLE SHAFT LH) 42312E - BOLT, HUB (FOR REAR AXLE LH) 42330 - SHAFT ASSY, REAR DRIVE, RH 42330G - OIL SEAL, REAR DRIVE SHAFT, RH 42340B - SHAFT ASSY, REAR DRIVE, LH 42340D - OIL SEAL, REAR DRIVE SHAFT, LH 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH) 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH) 42431 - DISC, REAR 42450A - HUB & BEARING ASSY, REAR AXLE, RH 42450B - HUB & BEARING ASSY, REAR AXLE, LH 42452A - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH 42452B - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) ** Refer Fig ** Refer Fig
