TOYOTA CROWN GRS202R-AETQK / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

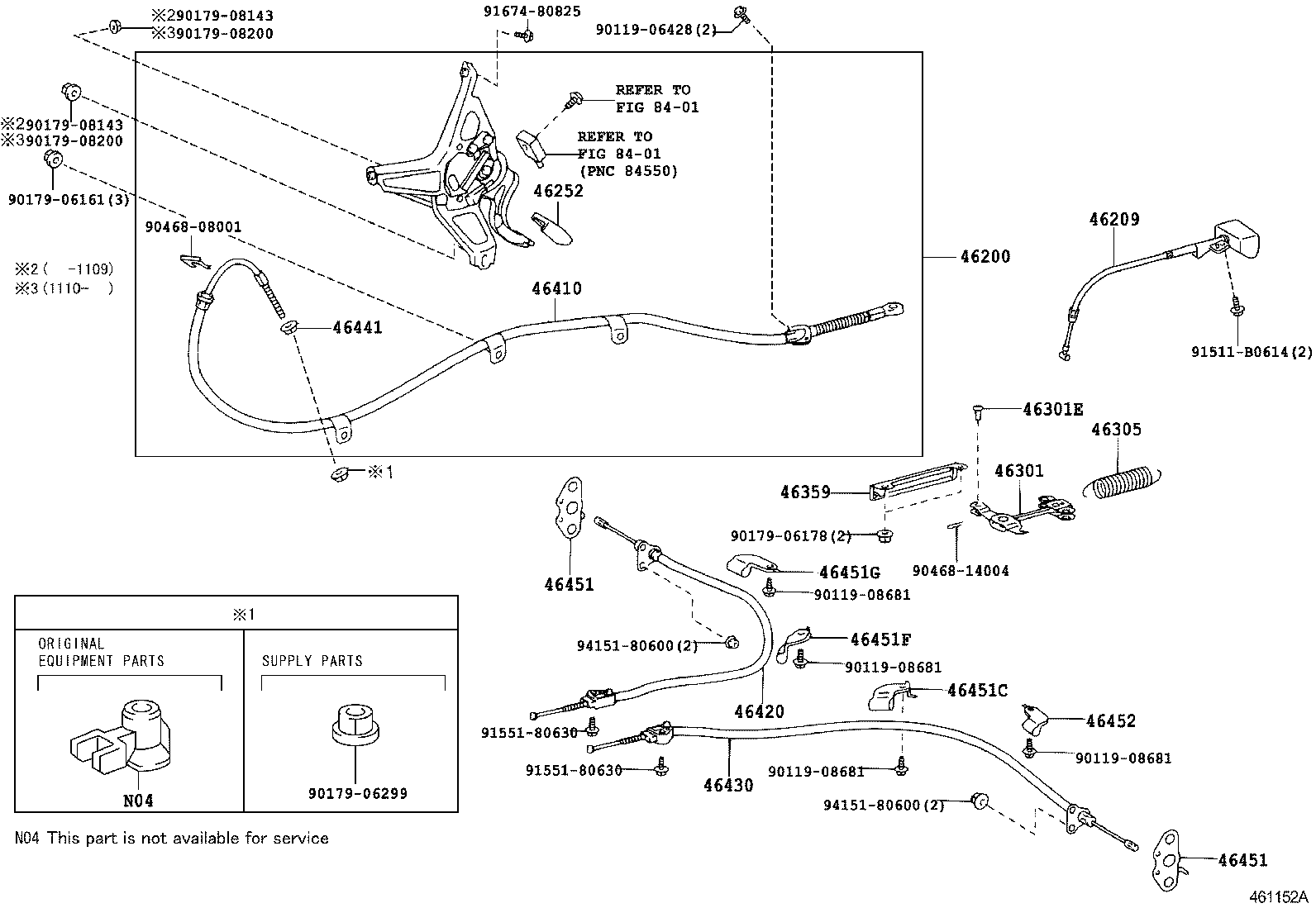

ILLUST NO. 1 OF 2(1009- )

 CROWN |  PARKING BRAKE CABLE 46200 - PEDAL ASSY, PARKING BRAKE CONTROL 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE 46252 - PAD, PARKING PEDAL 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) 46305 - SPRING, PARKING BRAKE RETURN W/DAMPER 46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46441 - NUT, WIRE ADJUSTING, NO.1 46451 - BRACKET, CABLE SUPPORT 46451 - BRACKET, CABLE SUPPORT 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 46451F - BRACKET, CABLE SUPPORT 46451G - BRACKET, CABLE SUPPORT 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
