TOYOTA CROWN GRS202R-AETQK / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

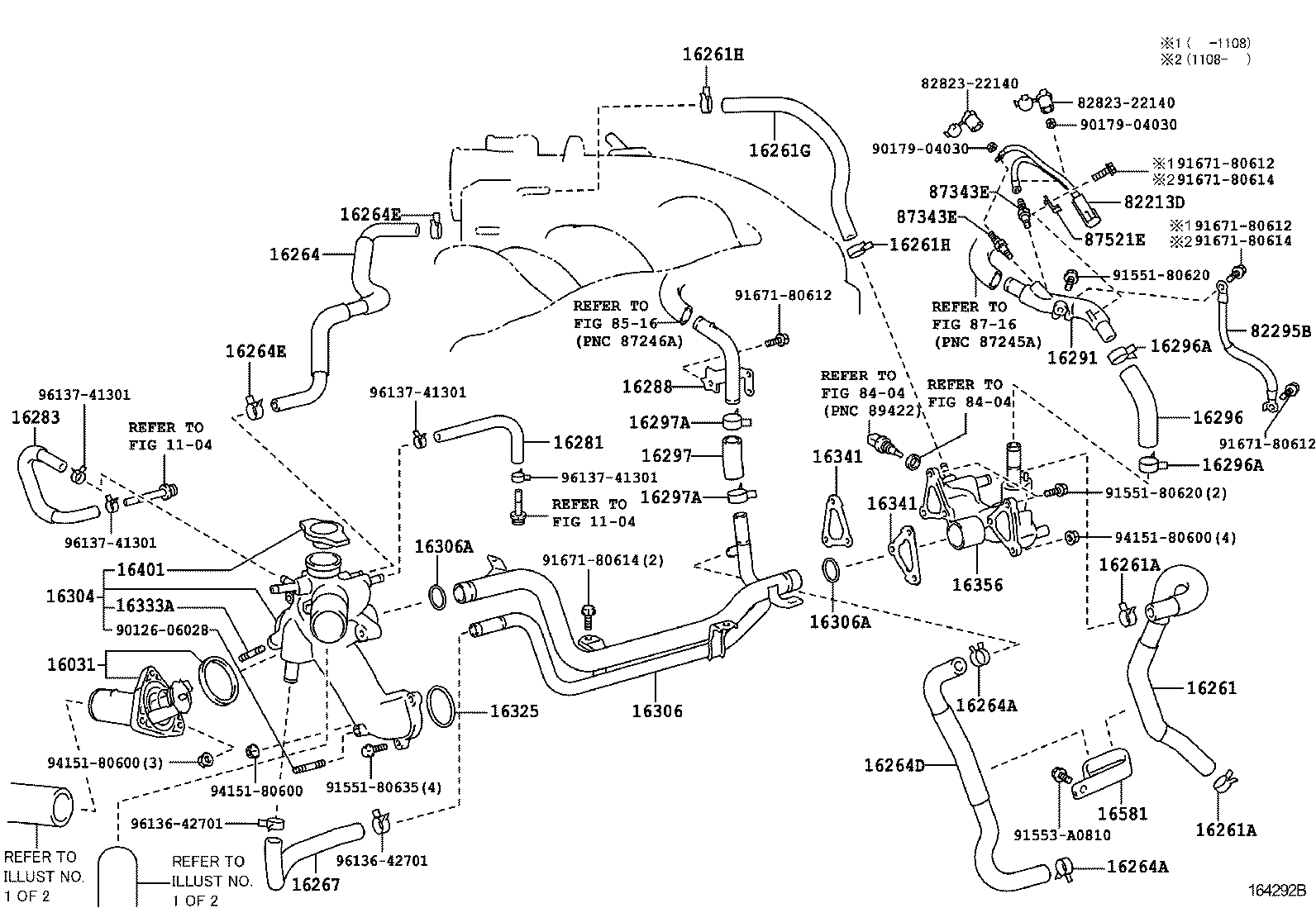

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(1009- )

CROWN | RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264D - HOSE, WATER BY-PASS, NO.2 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16281 - HOSE, WATER BY-PASS, NO.4 16283 - HOSE, WATER BY-PASS, NO.6 16288 - PIPE, WATER BY-PASS, NO.4 16291 - JOINT, WATER HOSE 16296 - HOSE, WATER BY-PASS, NO.8 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) 16297 - HOSE, WATER BY-PASS, NO.9 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) 16304 - OUTLET SUB-ASSY, WATER 16306 - PIPE SUB-ASSY, WATER OUTLET 16306A - RING, O(FOR WATER OUTLET PIPE) 16306A - RING, O(FOR WATER OUTLET PIPE) 16325 - GASKET, WATER INLET HOUSING, NO.1 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) 16341 - GASKET, WATER OUTLET 16341 - GASKET, WATER OUTLET 16356 - JOINT, WATER BY-PASS, REAR 16401 - CAP SUB-ASSY, RADIATOR 16581 - CLAMP, HOSE(FOR WATER HOSE) 82213D - WIRE,HEATER BLOWER 82295B - WIRE,WINCH EARTH ** Std Part ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87343E - PLUG, WATER BY-PASS GLOW 87343E - PLUG, WATER BY-PASS GLOW 87521E - BRACKET,ENGINE BLOCK HEATER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
