TOYOTA DYNA XZU429L-TKFRDW3 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

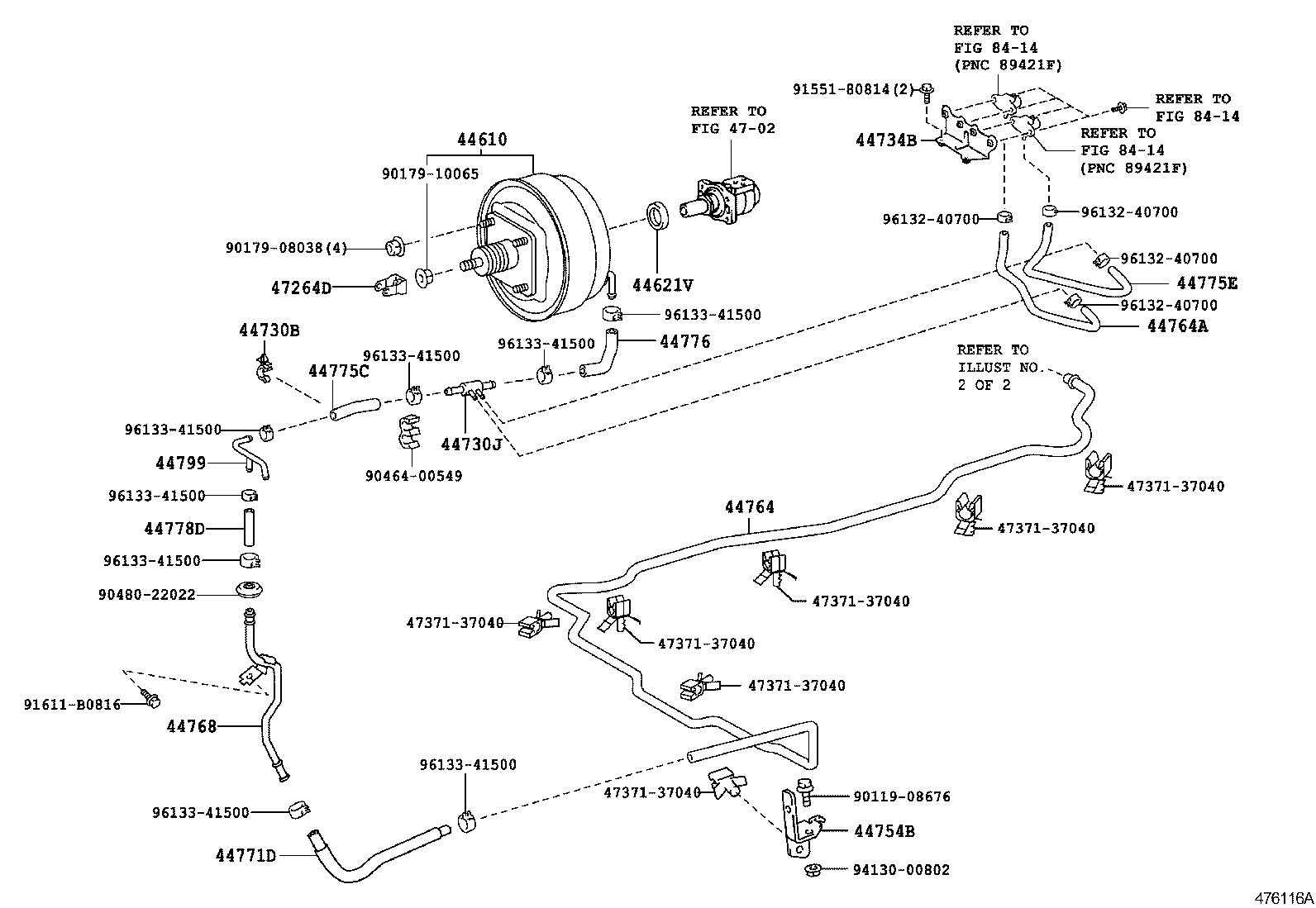

ILLUST NO. 1 OF 2(0708- )XZU415,419,425,429,435,439

DYNA | BRAKE BOOSTER VACUUM TUBE 44610 - BOOSTER ASSY, BRAKE 44621V - SEAL, BOOSTER BODY 44730B - CLAMP, VACUUM HOSE 44730J - WAY(FOR BOOSTER VACUUM) 44734B - BRACKET, BOOSTER SUPPORT 44754B - BRACKET, VACUUM TUBE 44764 - TUBE, BOOSTER VACUUM 44764A - HOSE, BOOSTER VACUUM 44768 - TUBE, BOOSTER VACUUM 44771D - HOSE, VACUUM TUBE CONNECTOR 44775C - HOSE, CONNECTOR TO WAY 44775E - HOSE, WAY TO CONNECTOR 44776 - HOSE, BRAKE BOOSTER 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE 44799 - WAY, BRAKE VACUUM HOSE ** Refer Fig 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
