TOYOTA EZ ZGR21L-GRFEKC / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

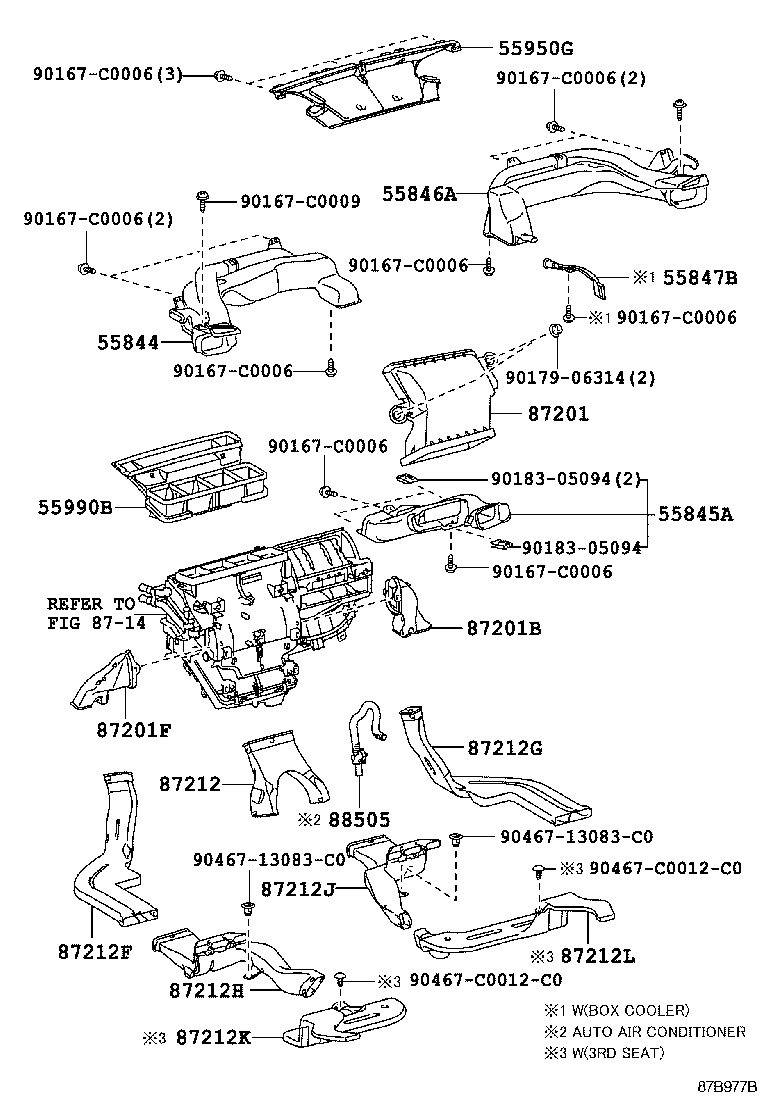

AIR DUCT ILLUST NO. 2 OF 3(1106- )

 EZ |  HEATING AIR CONDITIONING CONTROL AIR DUCT 55844 - DUCT, HEATER TO REGISTER, NO.2 55845A - DUCT, HEATER TO REGISTER, NO.3 55846A - DUCT, HEATER TO REGISTER, NO.4 55847B - DUCT, HEATER TO REGISTER, NO.5 55950G - NOZZLE ASSY, DEFROSTER 55990B - NOZZLE ASSY, DEFROSTER, LOWER ** Refer Fig 87201 - DUCT SUB-ASSY, AIR, NO.1 87201B - DUCT SUB-ASSY, AIR, NO.2 87201F - DUCT SUB-ASSY, AIR, NO.3 87212 - DUCT, AIR, REAR NO.1 87212F - DUCT, AIR, REAR NO.2 87212G - DUCT, AIR, REAR NO.3 87212H - DUCT, AIR, REAR NO.4 87212J - DUCT, AIR, REAR NO.5 87212K - DUCT, AIR, REAR NO.6 87212L - DUCT, AIR, REAR NO.7 88505 - DUCT SUB-ASSY,AIR CONDITIONER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
