TOYOTA EZ ZGR21L-GRFEKC / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

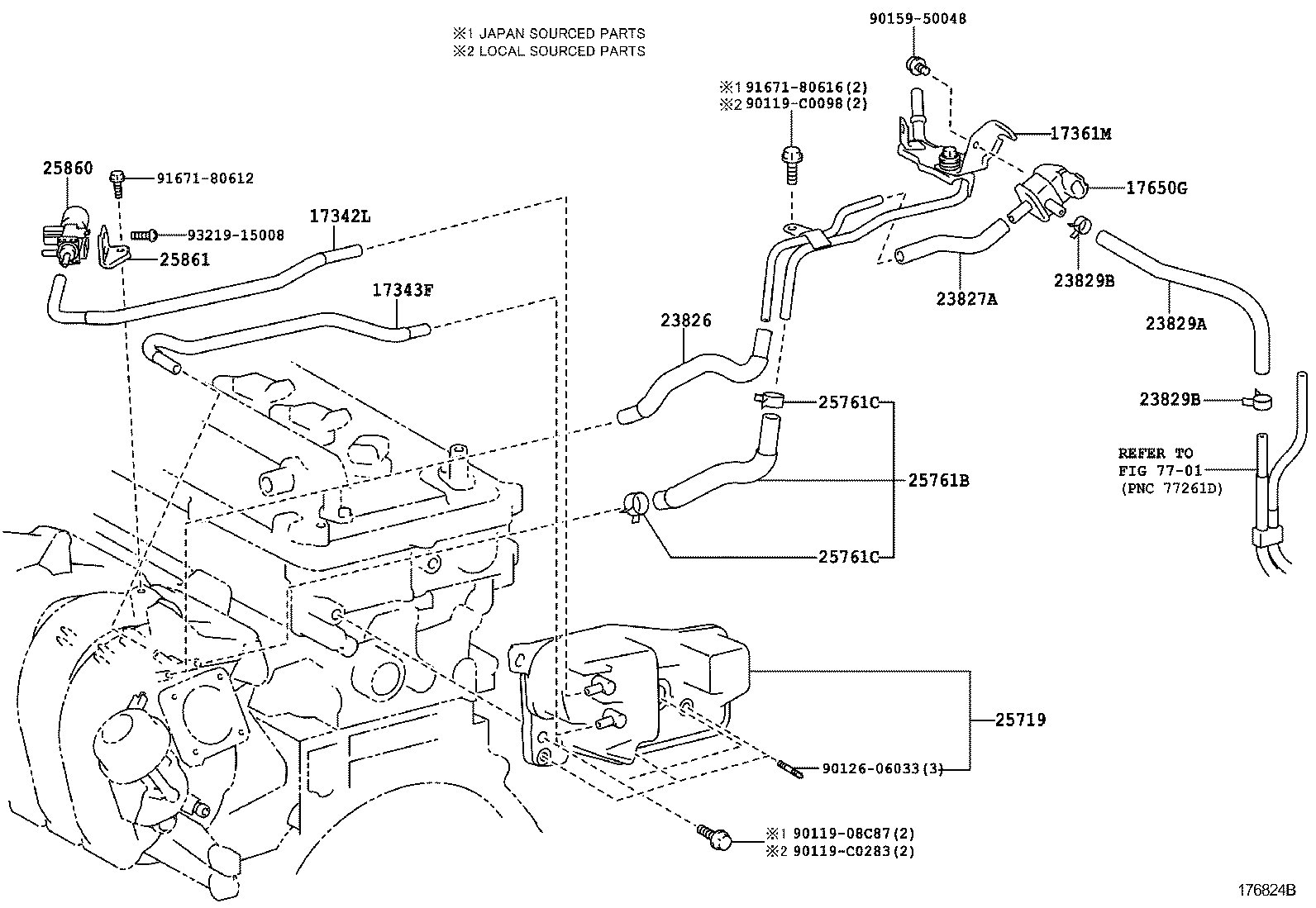

VACUUM PIPING

(1106- )2ZRFE,3ZRFE

EZ | VACUUM PIPING 17342L - HOSE, AIR, NO.2 17343F - HOSE, AIR, NO.3 17361M - TUBE, AIR 17650G - VALVE, DUTY VACUUM SWITCHING 23826 - HOSE, FUEL VAPOR FEED, NO.1 23827A - HOSE, FUEL VAPOR FEED, NO.2 23829A - HOSE, FUEL VAPOR FEED 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 25719 - TANK, VACUUM SURGE 25761B - HOSE, VACCUM TRANSMITTING, NO.1 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25861 - BRACKET, VACUUM SWITCHING VALVE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
