TOYOTA FJ CRUISER GSJ15R-GKASKQ / BODY / HOOD LOCK HINGE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

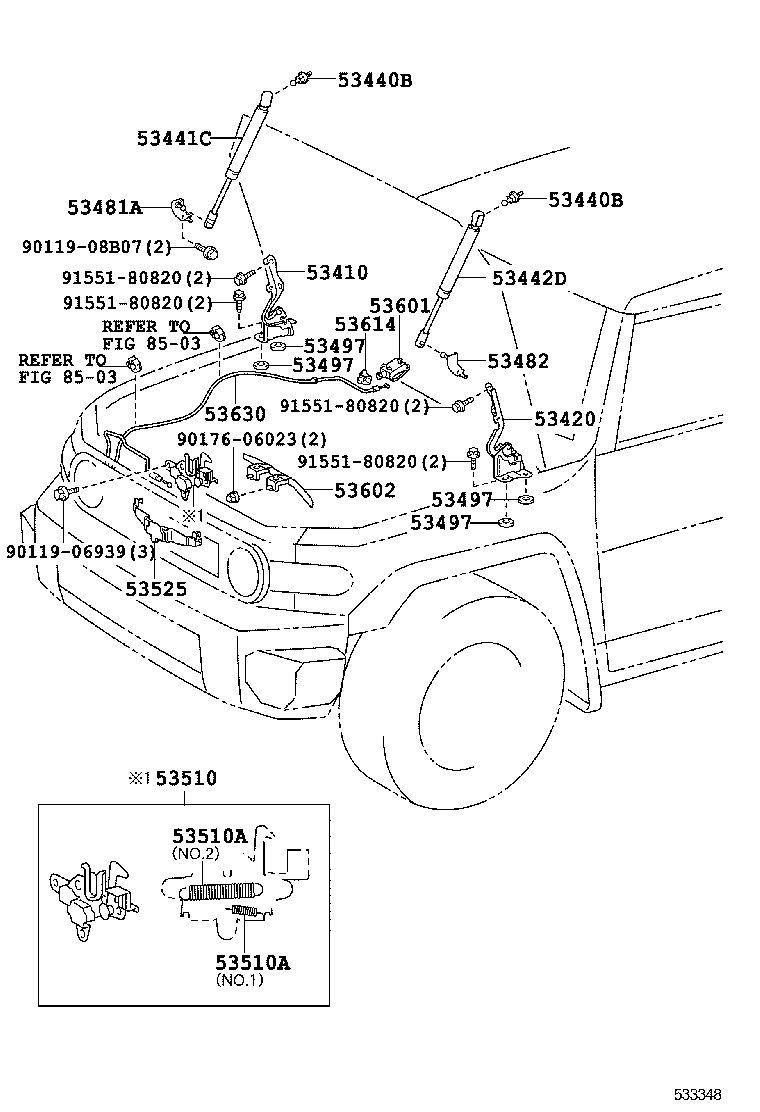

HOOD LOCK HINGE

(1011- )RHD

 FJ CRUISER |  HOOD LOCK HINGE 53410 - HINGE ASSY, HOOD, RH 53420 - HINGE ASSY, HOOD, LH 53440B - BOLT, HOOD SUPPORT, NO.1 53440B - BOLT, HOOD SUPPORT, NO.1 53441C - SUPPORT, HOOD, RH 53442D - SUPPORT, HOOD, LH 53481A - BRACKET, HOOD SUPPORT, RH 53482 - BRACKET, HOOD SUPPORT, LH 53497 - PAD, HOOD HINGE, NO.1 53497 - PAD, HOOD HINGE, NO.1 53497 - PAD, HOOD HINGE, NO.1 53497 - PAD, HOOD HINGE, NO.1 53510 - LOCK ASSY, HOOD 53510A - SPRING, TENSION(FOR HOOD LOCK) 53510A - SPRING, TENSION(FOR HOOD LOCK) 53525 - PROTECTOR, HOOD LOCK RELEASE LEVER 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL 53602 - PROTECTOR SUB-ASSY, HOOD LOCK CONTROL CABLE 53614 - CLAMP, HOOD LOCK CONTROL CABLE 53630 - CABLE ASSY, HOOD LOCK CONTROL ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
