TOYOTA FORTUNER GGN60L-NKASKL / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

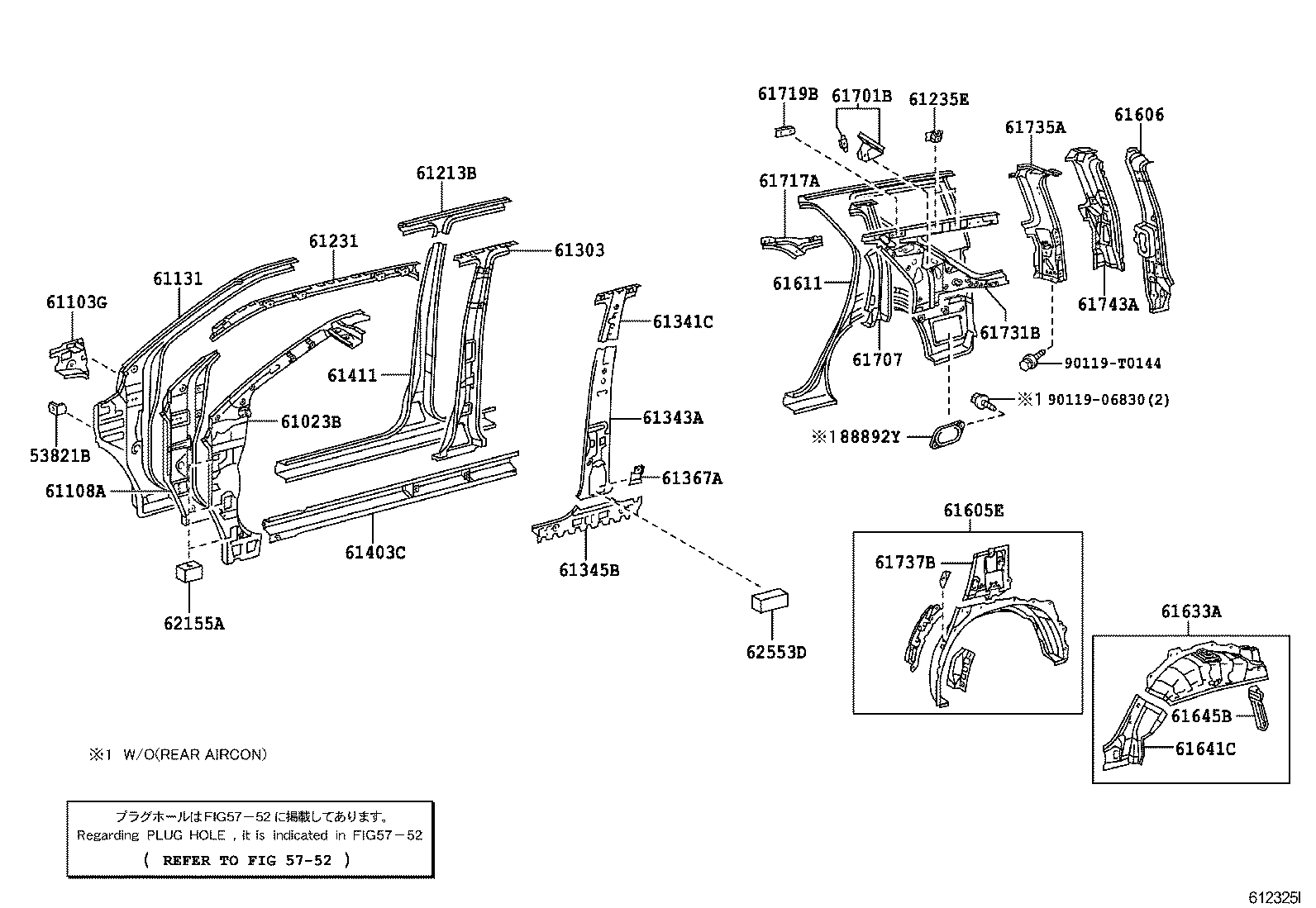

SIDE MEMBER

RH ILLUST NO. 1 OF 2(0509- )ANCOM,LA

FORTUNER | SIDE MEMBER 53821B - BRACKET, FRONT FENDER, REAR RH ** Refer Fig 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61131 - PILLAR, FRONT BODY, UPPER OUTER RH 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH 61231 - RAIL, ROOF SIDE, INNER RH 61235E - BRACKET, ASSIST GRIP, NO.1 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH 61341C - PILLAR, CENTER BODY, INNER UPPER RH 61343A - PILLAR, CENTER BODY, INNER RH 61345B - PILLAR, CENTER BODY, INNER LOWER RH 61367A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH 61411 - PANEL, ROCKER, OUTER RH 61605E - PANEL, QUARTER, RH 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH 61611 - PANEL, QUARTER, RH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH 61701B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH 61707 - PANEL SUB-ASSY, QUARTER, INNER RH 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH 61719B - BRACKET, ROOF SIDE, INNER 61731B - PANEL, ROOF SIDE, INNER RH 61735A - PANEL, ROOF SIDE, INNER REAR RH 61737B - PANEL, ROOF SIDE, INNER LOWER RH 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH 62155A - PAD, COWL SIDE LOWER SILENCER 62553D - PAD, PILLAR, NO.3 88892Y - COVER, COOLER, NO.3 ** Std Part ** Std Part
