TOYOTA FORTUNER LAN50R-NKMSEN / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

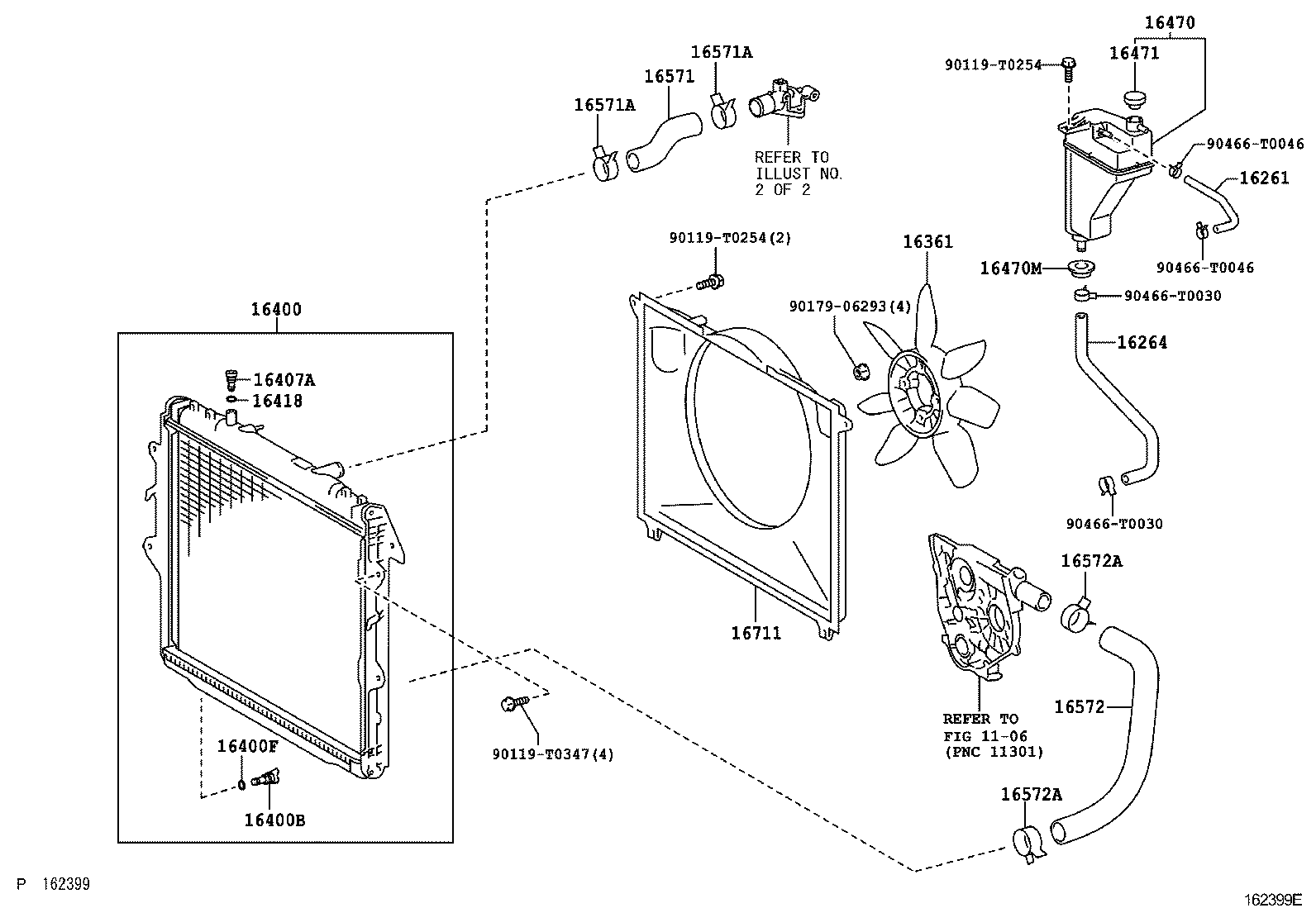

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(0605- )5LE

FORTUNER | RADIATOR WATER OUTLET ** Refer Fig 16261 - HOSE, WATER BY-PASS 16264 - HOSE, WATER BY-PASS, NO.2 16361 - FAN 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16407A - COCK SUB-ASSY, RADIATOR DRAIN 16418 - PACKING 16470 - TANK ASSY, RADIATOR RESERVE 16470M - GROMMET 16471 - CAP SUB-ASSY, RESERVE TANK 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16711 - SHROUD, FAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
