TOYOTA HIGHLANDER KLUGER GSU45L-BRANKX / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

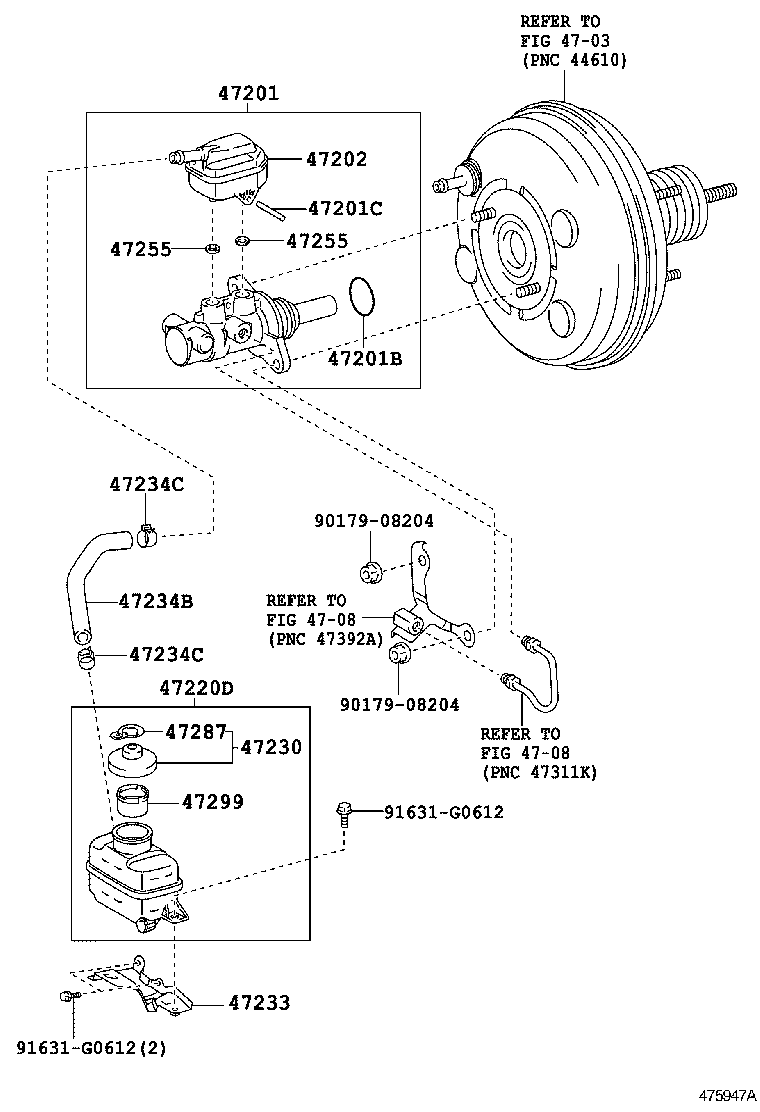

BRAKE MASTER CYLINDER

(0705- )LHD

 HIGHLANDER KLUGER |  BRAKE MASTER CYLINDER ** Refer Fig ** Refer Fig ** Refer Fig 47201 - CYLINDER SUB-ASSY, BRAKE MASTER 47201B - RING, O(FOR BRAKE MASTER CYLINDER) 47201C - RING PIN, BRAKE MASTER CYLINDER 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47233 - BRACKET, RESERVOIR 47234B - TUBE, RESERVOIR, NO.1 47234C - CLIP(FOR RESERVOIR TUBE NO.1) 47234C - CLIP(FOR RESERVOIR TUBE NO.1) 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47287 - LABEL, BRAKE FLUID INFORMATION 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR  ** Std Part  ** Std Part  ** Std Part  ** Std Part
