TOYOTA HIGHLANDER KLUGER GSU45R-BRAGKQ / BODY / SUSPENSION CROSSMEMBER UNDER COVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

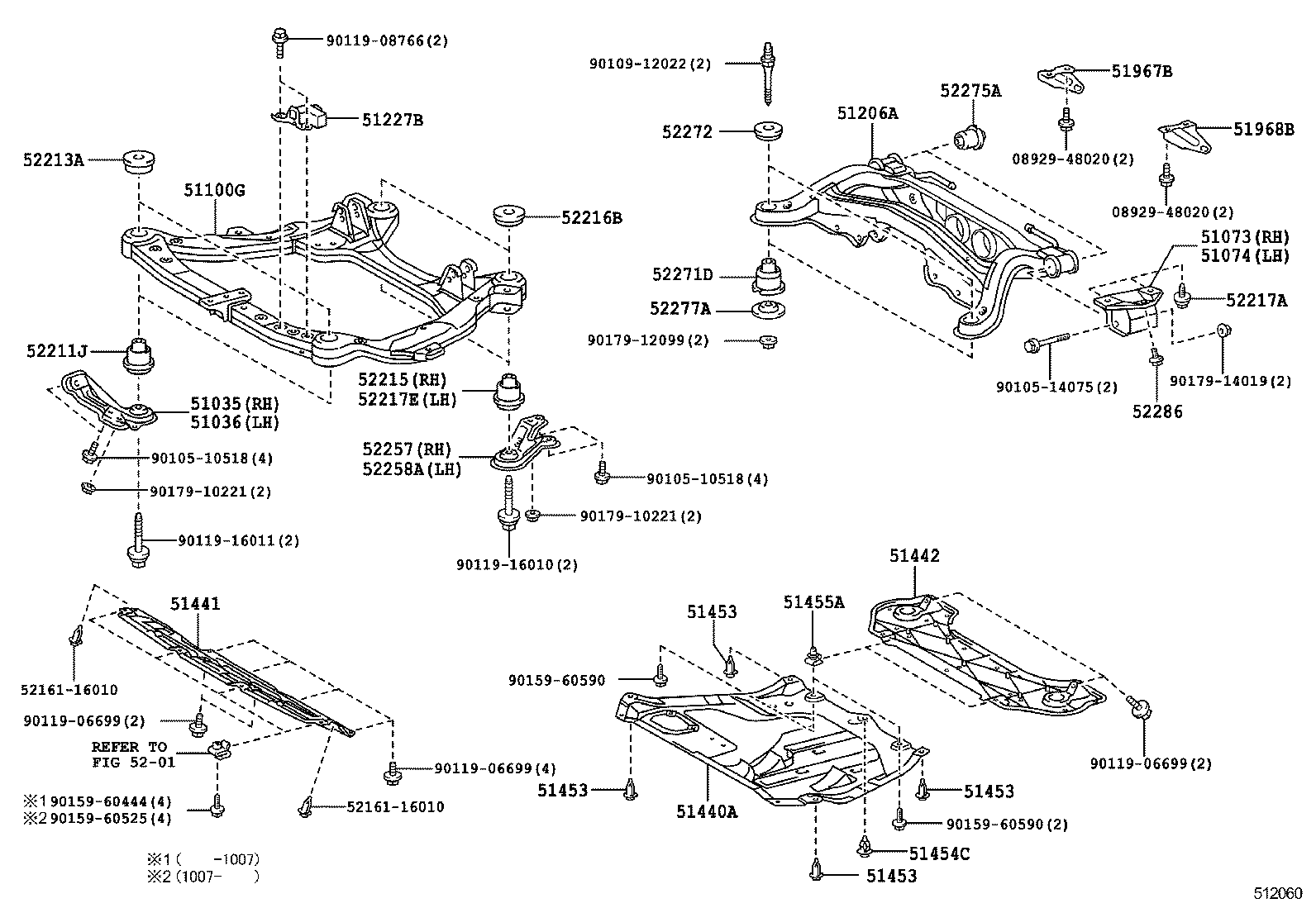

SUSPENSION CROSSMEMBER UNDER COVER

(0705- )GSU45

HIGHLANDER KLUGER | SUSPENSION CROSSMEMBER UNDER COVER ** Std Part ** Std Part 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH 51100G - FRAME ASSY, FRONT 51206A - MEMBER SUB-ASSY, REAR SUSPENSION 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC 51440A - COVER ASSY, ENGINE UNDER 51441 - COVER, ENGINE UNDER, NO.1 51442 - COVER, ENGINE UNDER, NO.2 51453 - SILENCER, ENGINE UNDER COVER, FRONT 51453 - SILENCER, ENGINE UNDER COVER, FRONT 51453 - SILENCER, ENGINE UNDER COVER, FRONT 51453 - SILENCER, ENGINE UNDER COVER, FRONT 51454C - SILENCER, ENGINE UNDER COVER, REAR 51455A - SEAL, ENGINE UNDER COVER, NO.1 51967B - HOOK, TRANSPORT, REAR RH 51968B - HOOK, TRANSPORT, REAR LH ** Refer Fig ** Std Part ** Std Part 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR 52217A - BOLT, BODY MOUNTING 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR 52277A - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
