TOYOTA HIGHLANDER KLUGER GSU45R-BRAGKQ / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

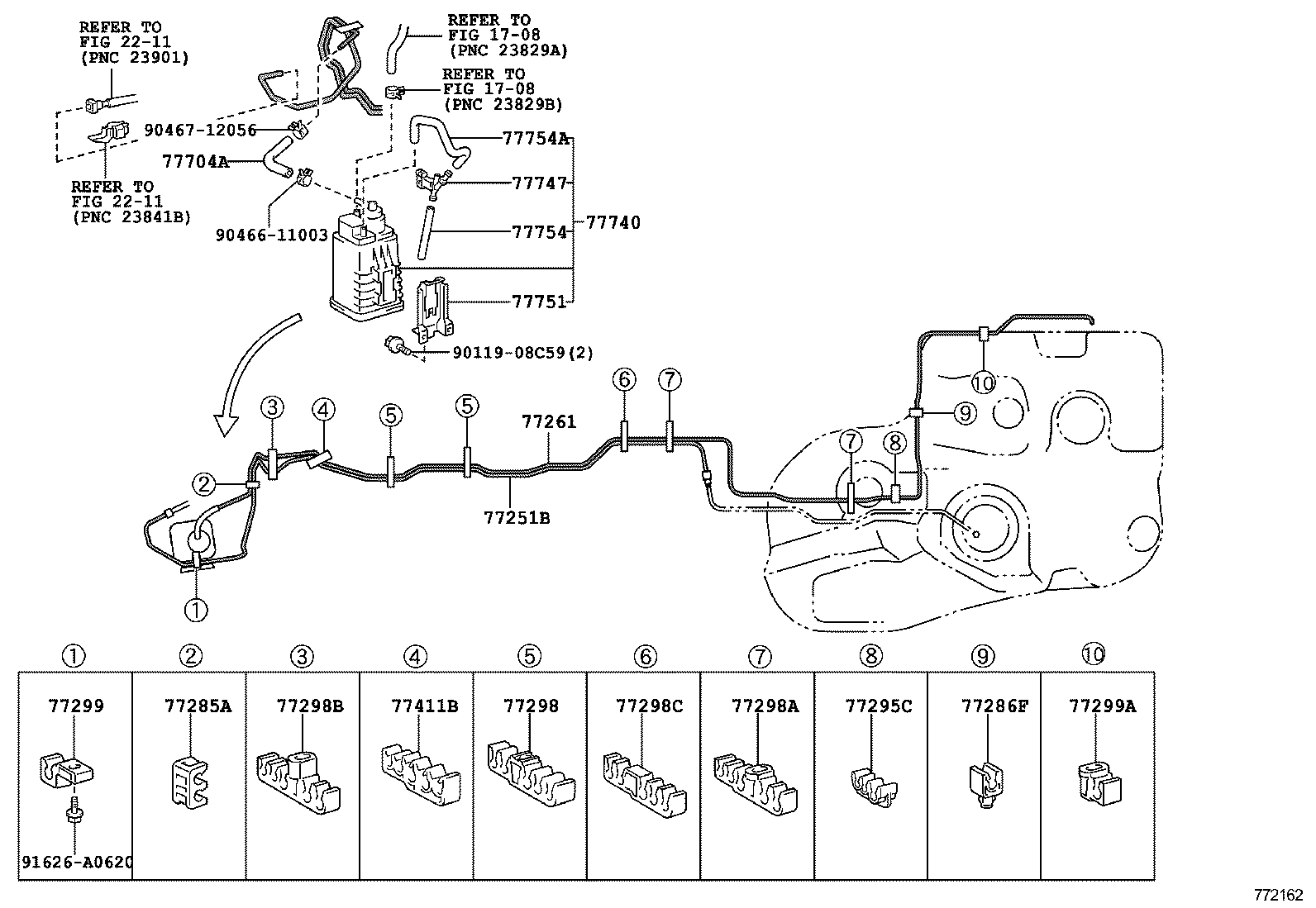

FUEL TANK TUBE

FUEL TUBE ILLUST NO. 2 OF 2(0705- )

HIGHLANDER KLUGER | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77261 - TUBE SUB-ASSY, FUEL EMISSION 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE 77286F - CLAMP, FUEL TUBE, NO.2 77295C - GROMMET, FUEL TUBE 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 77298A - CLAMP, FUEL TUBE, NO.4 77298B - CLAMP, FUEL TUBE, NO.4 77298C - CLAMP, FUEL TUBE, NO.4 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 77299A - CLAMP, FUEL TUBE, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77704A - HOSE, FUEL(FOR CHARCOAL CANISTER) 77740 - CANISTER ASSY, CHARCOAL 77747 - PIPE, CHARCOAL CANISTER, NO.1 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part
