TOYOTA INNOVA KIJANG INNOVA TGN40L-GKMRKM / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

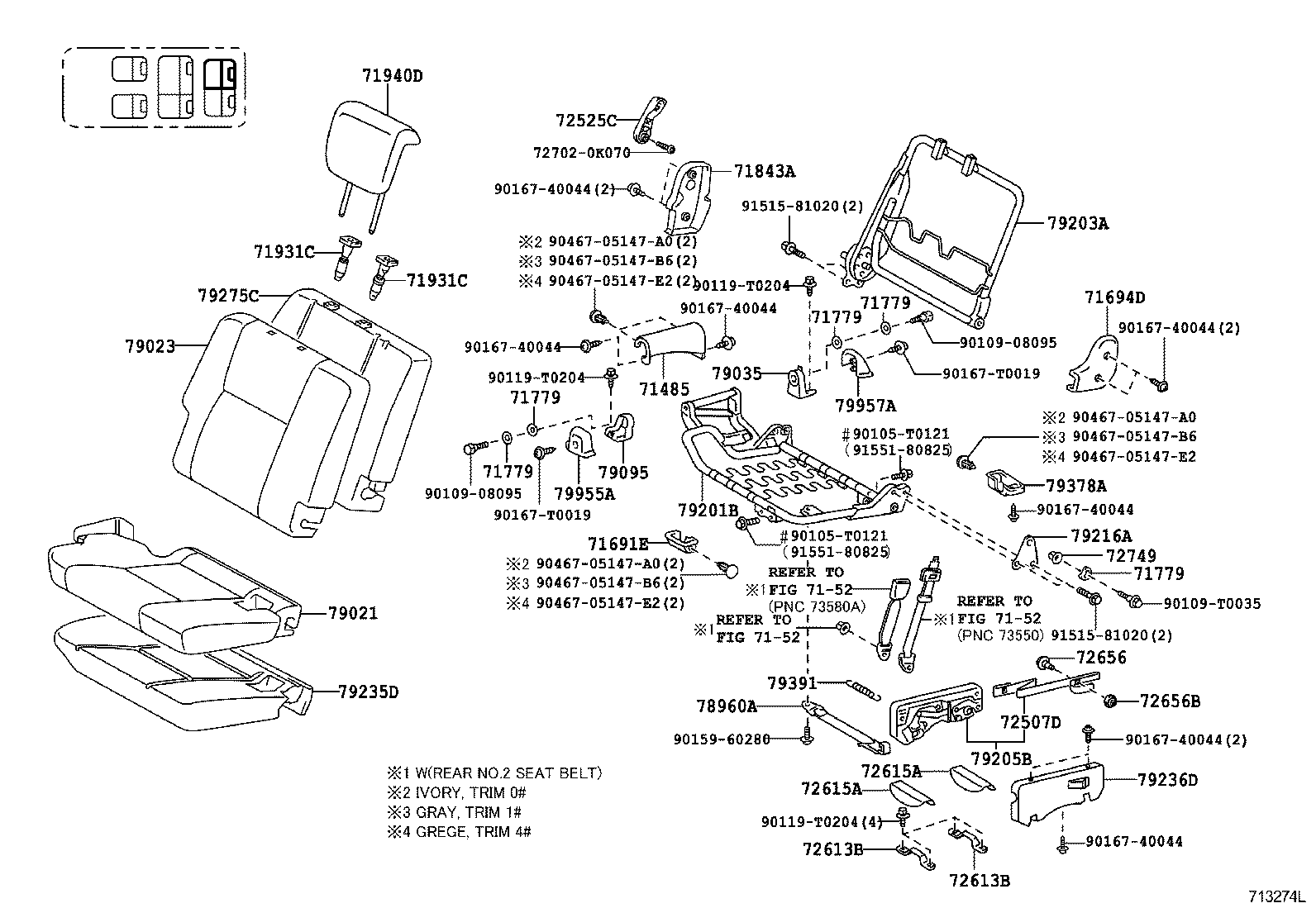

SEAT SEAT TRACK

REAR NO.2 SEAT(RH) ILLUST NO. 4 OF 4(0408- )GCC,IDN,IND,MA,PHL,TH,VN

 INNOVA KIJANG INNOVA |  SEAT SEAT TRACK 71485 - COVER, REAR SEAT HINGE ** Refer Fig ** Refer Fig ** Refer Fig 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 71694D - COVER, REAR SEAT CUSHION HINGE, OUTER LH 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH 71843A - COVER, REAR SEAT RECLINING, NO.2 RH 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71940D - HEADREST ASSY, REAR NO.2 SEAT, RH 72507D - HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH 72613B - STRIKER, REAR SEAT LOCK 72613B - STRIKER, REAR SEAT LOCK 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH 72656 - BUTTON, REAR SEAT BACK STOP RELEASE 72656B - BUTTON, REAR SEAT BACK STOP RELEASE  ** Std Part 72749 - SPACER, REAR SEAT RECLINING 78960A - BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.2 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH 79035 - LEG SUB ASSY, NO.3 SEAT OUTER REAR, RH 79095 - LEG SUB ASSY, NO.3 SEAT OUTER FRONT, RH 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH 79205B - LEG SUB-ASSY, NO.2 SEAT, RH 79216A - PLATE, NO.2 SEAT CUSHION 79235D - PAD, NO.2 SEAT CUSHION, RH 79236D - COVER, REAR SEAT LEG, RH (FOR RH SEAT) 79275C - PAD, NO.2 SEAT BACK, RH 79378A - COVER, NO.3 SEAT CUSHION HINGE, RH 79391 - SPRING, REAR SEAT CUSHION 79955A - COVER, REAR SEAT FRONT BRACKET, RH 79957A - COVER, REAR SEAT REAR BRACKET, RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
