TOYOTA INNOVA KIJANG TGN41L-GKMDKV / POWERTRAIN-CHASSIS / CLUTCH HOUSING TRANSMISSION CASE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH HOUSING TRANSMISSION CASE MTM

R150 (1107- )TGN41..5F

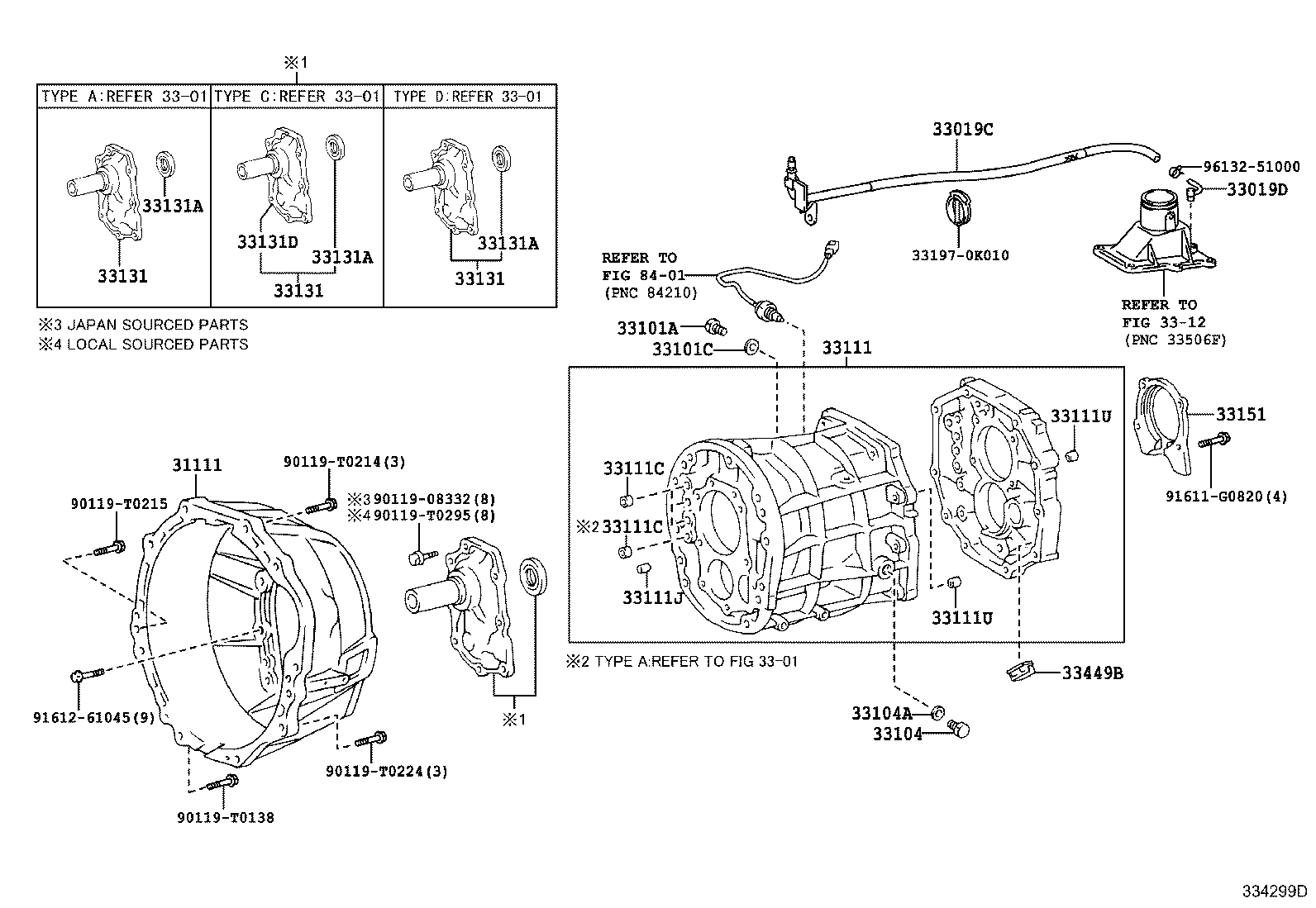

INNOVA KIJANG | CLUTCH HOUSING TRANSMISSION CASE MTM 31111 - HOUSING, CLUTCH 33019C - BREATHER SUB-ASSY, TRANSMISSION 33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE) 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) 33104 - PLUG SUB-ASSY, DRAIN(MTM) 33104A - GASKET, DRAIN PLUG(MTM) 33111 - CASE, MANUAL TRANSMISSION 33111C - PLUG(FOR TRANSMISSION CASE) 33111C - PLUG(FOR TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) ** Refer Fig 33131 - RETAINER, BEARING, FRONT(MTM) 33131 - RETAINER, BEARING, FRONT(MTM) 33131 - RETAINER, BEARING, FRONT(MTM) 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) 33131D - RETAINER, BEARING, FRONT 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) ** Std Part 33449B - MAGNET, TRANSMISSION ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
