TOYOTA LAND CRUISER CHINA GRJ200L-GNANKC / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DOOR PANEL GLASS

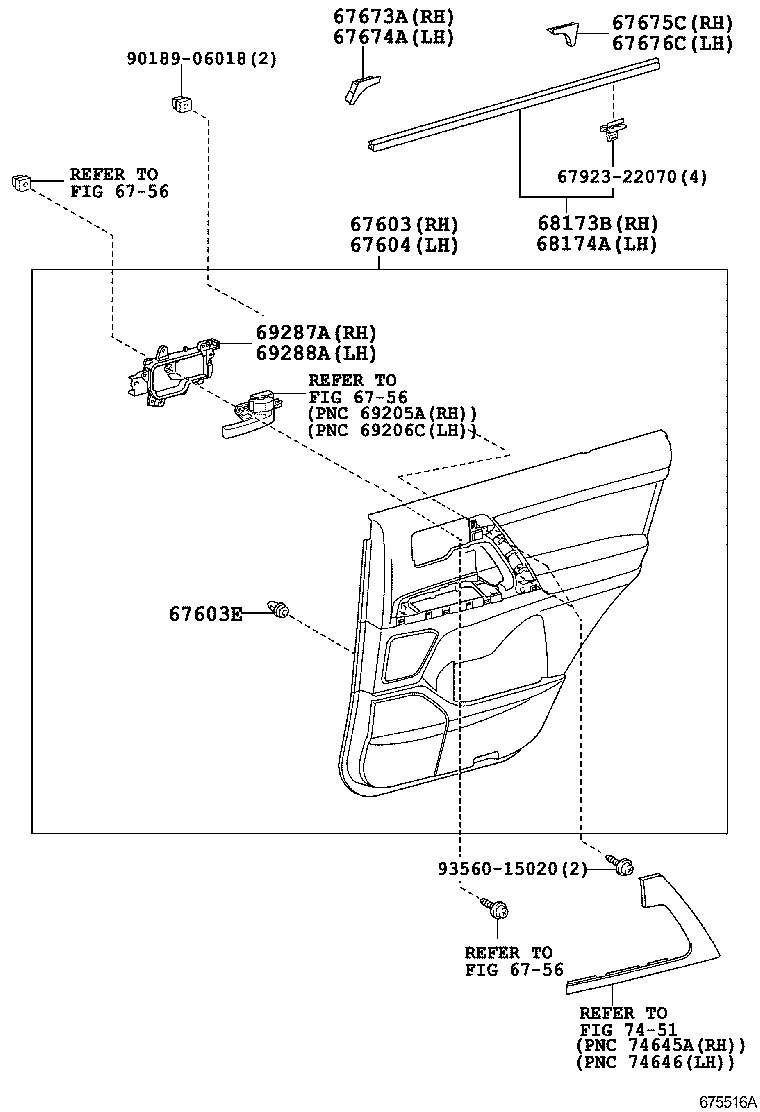

DOOR TRIM ILLUST NO. 2 OF 2(0712- )

 LAND CRUISER CHINA |  REAR DOOR PANEL GLASS ** Refer Fig ** Refer Fig ** Refer Fig 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH 67603E - CLIP(FOR REAR DOOR TRIM BOARD) 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH 67673A - GARNISH, REAR DOOR FRAME, RH 67674A - GARNISH, REAR DOOR FRAME, LH 67675C - GARNISH, REAR DOOR FRAME, NO.2 RH 67676C - GARNISH, REAR DOOR FRAME, NO.2 LH  ** Std Part 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH 69287A - BEZEL, REAR DOOR INSIDE HANDLE, RH 69288A - BEZEL, REAR DOOR INSIDE HANDLE, LH ** Refer Fig  ** Std Part  ** Std Part
