TOYOTA LAND CRUISER CHINA GRJ200L-GNANKC / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

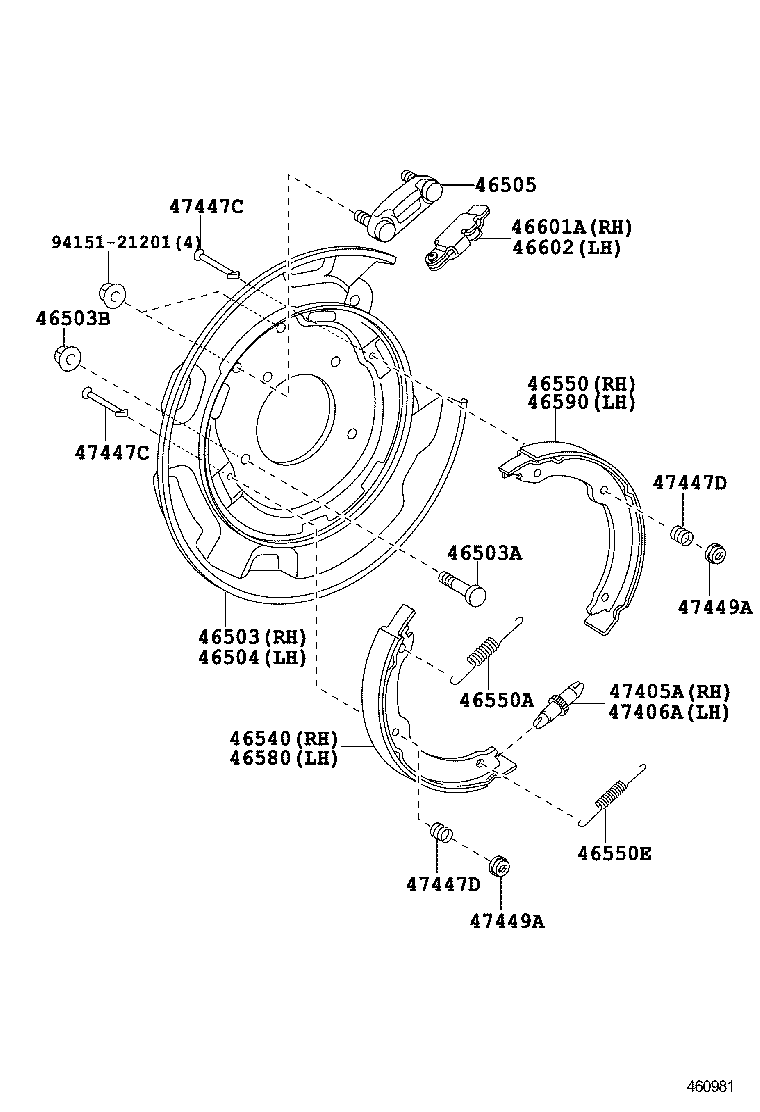

ILLUST NO. 2 OF 2(0712- )

LAND CRUISER CHINA | PARKING BRAKE CABLE 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH 46503A - BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) 46503B - NUT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH 46505 - BLOCK SUB-ASSY, PARKING BRAKE ANCHOR 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 46601A - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH 46602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) ** Std Part
