TOYOTA LAND CRUISER CHINA GRJ200L-GNANKC / POWERTRAIN-CHASSIS / FRONT AXLE ARM STEERING KNUCKLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

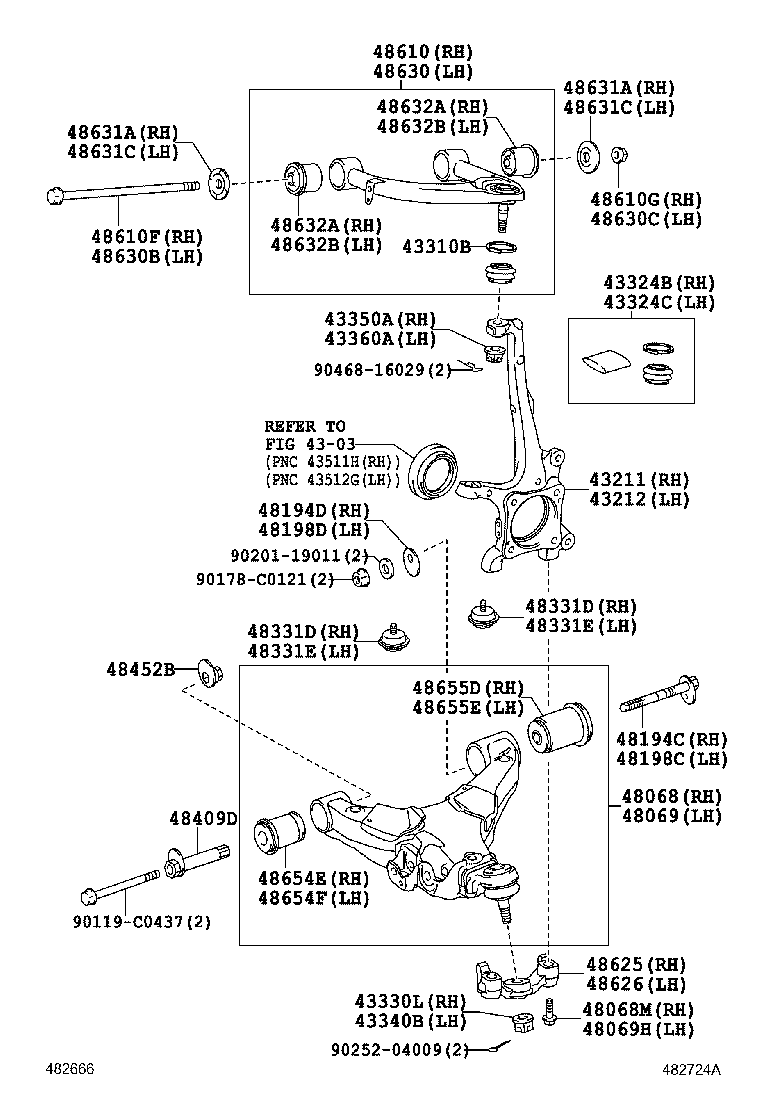

FRONT AXLE ARM STEERING KNUCKLE

(0712- )

LAND CRUISER CHINA | FRONT AXLE ARM STEERING KNUCKLE ** Refer Fig 43211 - KNUCKLE, STEERING, RH 43212 - KNUCKLE, STEERING, LH 43310B - RING, SET (FOR DUST COVER) 43324B - COVER, FRONT UPPER BALL JOINT DUST, RH 43324C - COVER, FRONT UPPER BALL JOINT DUST, LH 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) 43350A - NUT (FOR FRONT UPPER BALL JOINT RH) 43360A - NUT (FOR FRONT UPPER BALL JOINT LH) 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) 48194C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH 48194D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH 48198C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH 48198D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH 48331D - BUMPER, FRONT SPRING, NO.1 RH 48331D - BUMPER, FRONT SPRING, NO.1 RH 48331E - BUMPER, FRONT SPRING, NO.1 LH 48331E - BUMPER, FRONT SPRING, NO.1 LH 48409D - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST 48452B - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) 48625 - ATTACHMENT, FRONT LOWER BALL JOINT, RH 48626 - ATTACHMENT, FRONT LOWER BALL JOINT, LH 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH 48654E - BUSH, FRONT LOWER ARM, NO.1 RH 48654F - BUSH, FRONT LOWER ARM, NO.1 LH 48655D - BUSH, FRONT LOWER ARM, NO.2 RH 48655E - BUSH, FRONT LOWER ARM, NO.2 LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
