TOYOTA LAND CRUISER PRADO GRJ150L-GKAEKC / BODY / FLOOR MAT SILENCER PAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR MAT SILENCER PAD

(1005-1311)

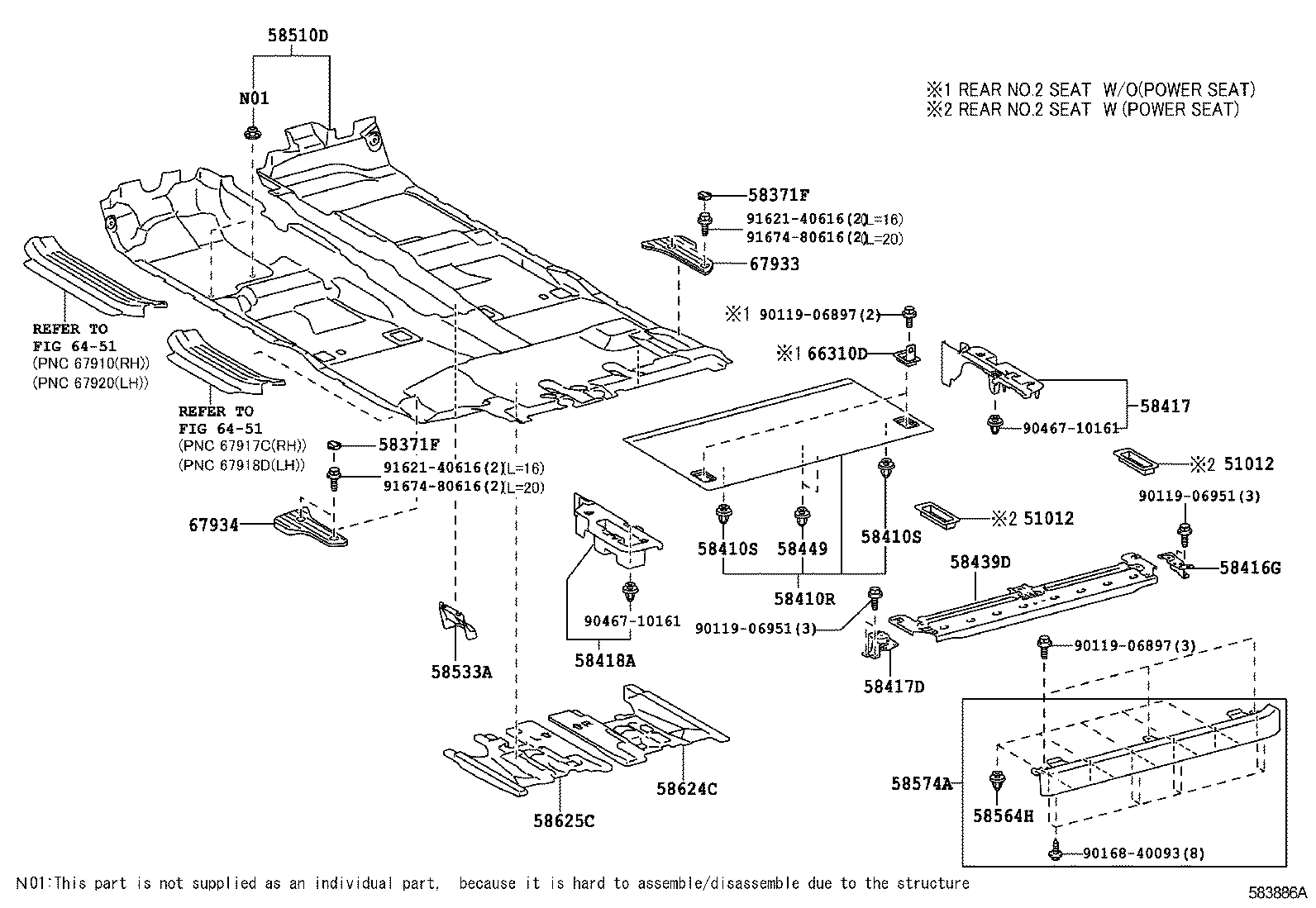

 LAND CRUISER PRADO |  FLOOR MAT SILENCER PAD 51012 - RAIL SUB-ASSY, REAR FRAME 51012 - RAIL SUB-ASSY, REAR FRAME 58371F - COVER, REAR FLOOR STEP, NO.1 58371F - COVER, REAR FLOOR STEP, NO.1 58410R - BOARD ASSY, DECK 58410S - CLIP, DECK BOARD 58410S - CLIP, DECK BOARD 58416G - BRACKET, DECK BOARD, NO.1 RH 58417 - BOARD, REAR FLOOR, NO.3 58417D - BRACKET, DECK BOARD, NO.1 LH 58418A - BOARD, REAR FLOOR, NO.4 58439D - REINFORCEMENT, DECK BOARD BRACKET 58449 - CLIP, DECK BOARD 58510D - CARPET ASSY, FLOOR, FRONT 58533A - COVER, FLOOR CARPET, CENTER RH 58564H - CLIP(FOR REAR FLOOR CARPET) 58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR 58624C - PAD, CENTER FLOOR SILENCER, RH 58625C - PAD, CENTER FLOOR SILENCER, LH ** Refer Fig ** Refer Fig 66310D - HOOK ASSY, ROPE 67933 - PLATE, QUARTER SCUFF, INNER RH 67934 - PLATE, QUARTER SCUFF, INSIDE LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
