TOYOTA LAND CRUISER PRADO GRJ150L-GKAEKC / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR PANEL GLASS

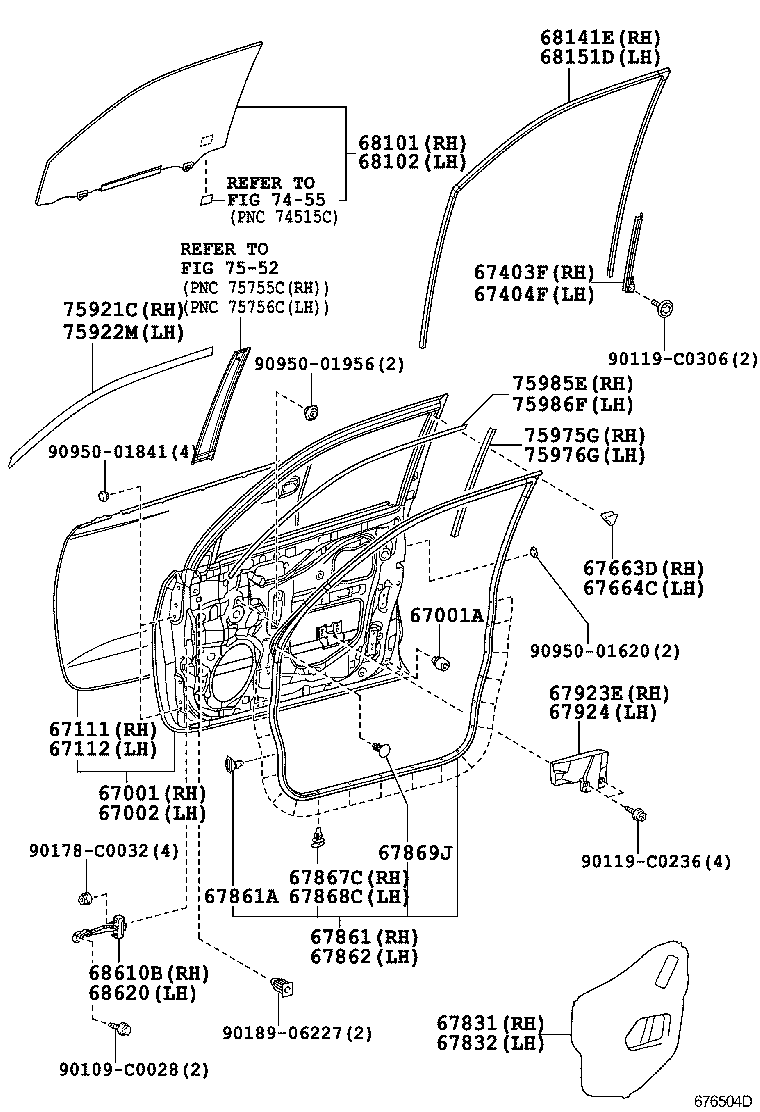

DOOR PANEL ILLUST NO. 1 OF 2(1005- )

LAND CRUISER PRADO | FRONT DOOR PANEL GLASS 67001 - PANEL SUB-ASSY, FRONT DOOR, RH 67001A - CUSHION, FRONT DOOR PANEL 67002 - PANEL SUB-ASSY, FRONT DOOR, LH 67111 - PANEL, FRONT DOOR, OUTER RH 67112 - PANEL, FRONT DOOR, OUTER LH 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH 67663D - GARNISH, DOOR FRAME, RH 67664C - GARNISH, DOOR FRAME, LH 67831 - COVER, FRONT DOOR SERVICE HOLE, RH 67832 - COVER, FRONT DOOR SERVICE HOLE, LH 67861 - WEATHERSTRIP, FRONT DOOR, RH 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) 67862 - WEATHERSTRIP, FRONT DOOR, LH 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH 67869J - CLIP, FRONT DOOR WEATHERSTRIP 67923E - CUSHION, FRONT DOOR STIFFENER, NO.1 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68141E - RUN, FRONT DOOR GLASS, RH 68151D - RUN, FRONT DOOR GLASS, LH 68610B - CHECK ASSY, FRONT DOOR, RH 68620 - CHECK ASSY, FRONT DOOR, LH ** Refer Fig ** Refer Fig 75921C - TAPE, BLACK OUT, NO.1 RH 75922M - TAPE, BLACK OUT, NO.1 LH 75975G - STRIPE, FRONT DOOR, OUTSIDE LWR RH 75976G - STRIPE, FRONT DOOR, OUTSIDE LWR LH 75985E - STRIPE, FRONT DOOR OUTSIDE, RH 75986F - STRIPE, FRONT DOOR OUTSIDE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
