TOYOTA LAND CRUISER PRADO GRJ150L-GKAEKC / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

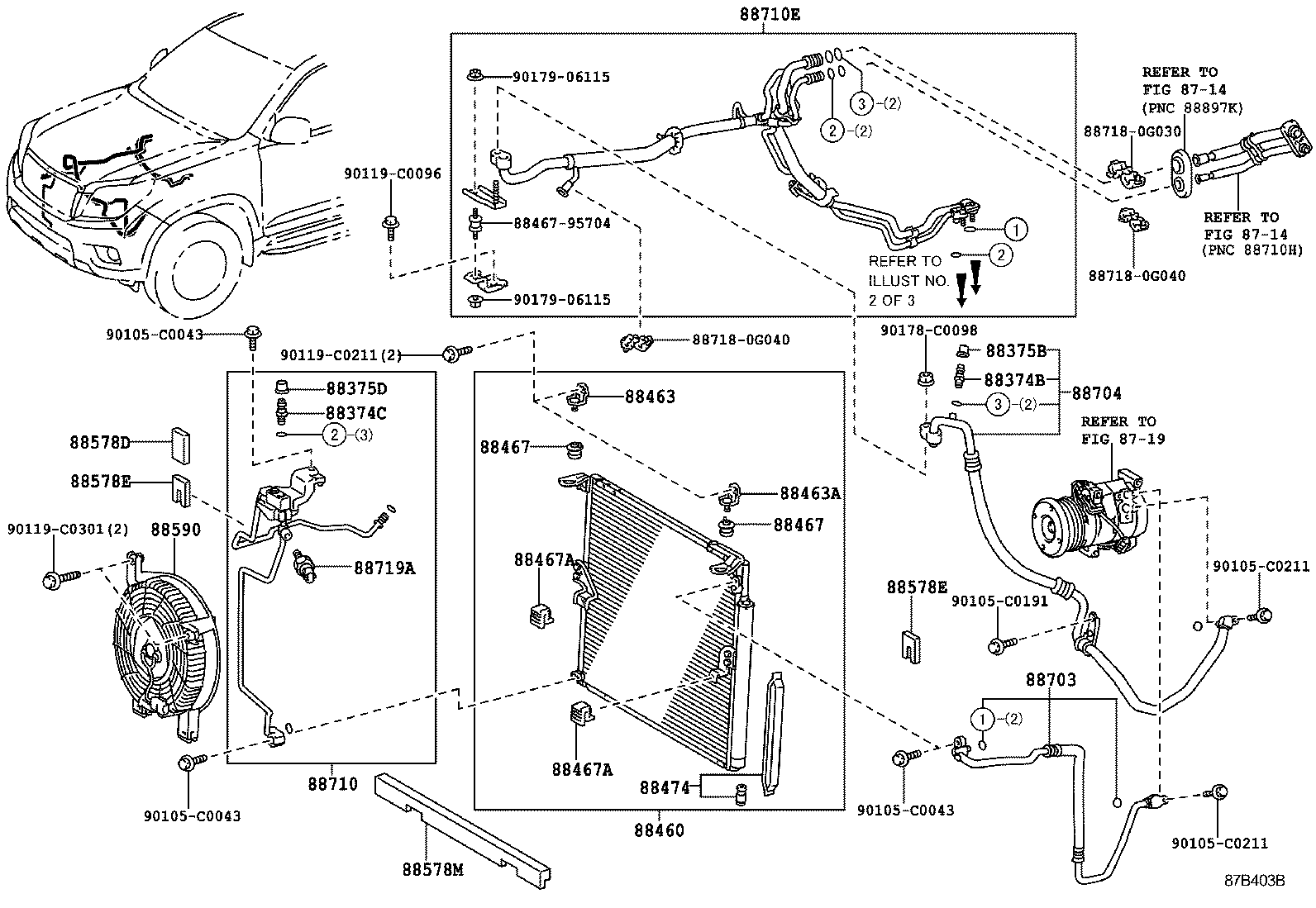

FRONT ILLUST NO. 1 OF 3(1005- )

LAND CRUISER PRADO | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER 88463 - BRACKET, COOLER CONDENSER, NO.1 88463A - BRACKET, COOLER CONDENSER, NO.2 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 ** Std Part 88467A - CUSHION, COOLER CONDENSER, NO.2 88467A - CUSHION, COOLER CONDENSER, NO.2 88474 - DRYER, COOLER 88578D - PACKING, COOLER PIPE, NO.1 88578E - PACKING, COOLER PIPE, NO.2 88578E - PACKING, COOLER PIPE, NO.2 88578M - PACKING, COOLING PIPE, NO.3 88590 - BLOWER ASSY, W/SHROUD 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88710 - TUBE ASSY, AIRCONDITIONER 88710E - TUBE & ACCESSORY ASSY, AIRCONDITIONER ** Std Part ** Std Part ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
