TOYOTA LAND CRUISER PRADO GRJ150L-GKAEKC / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

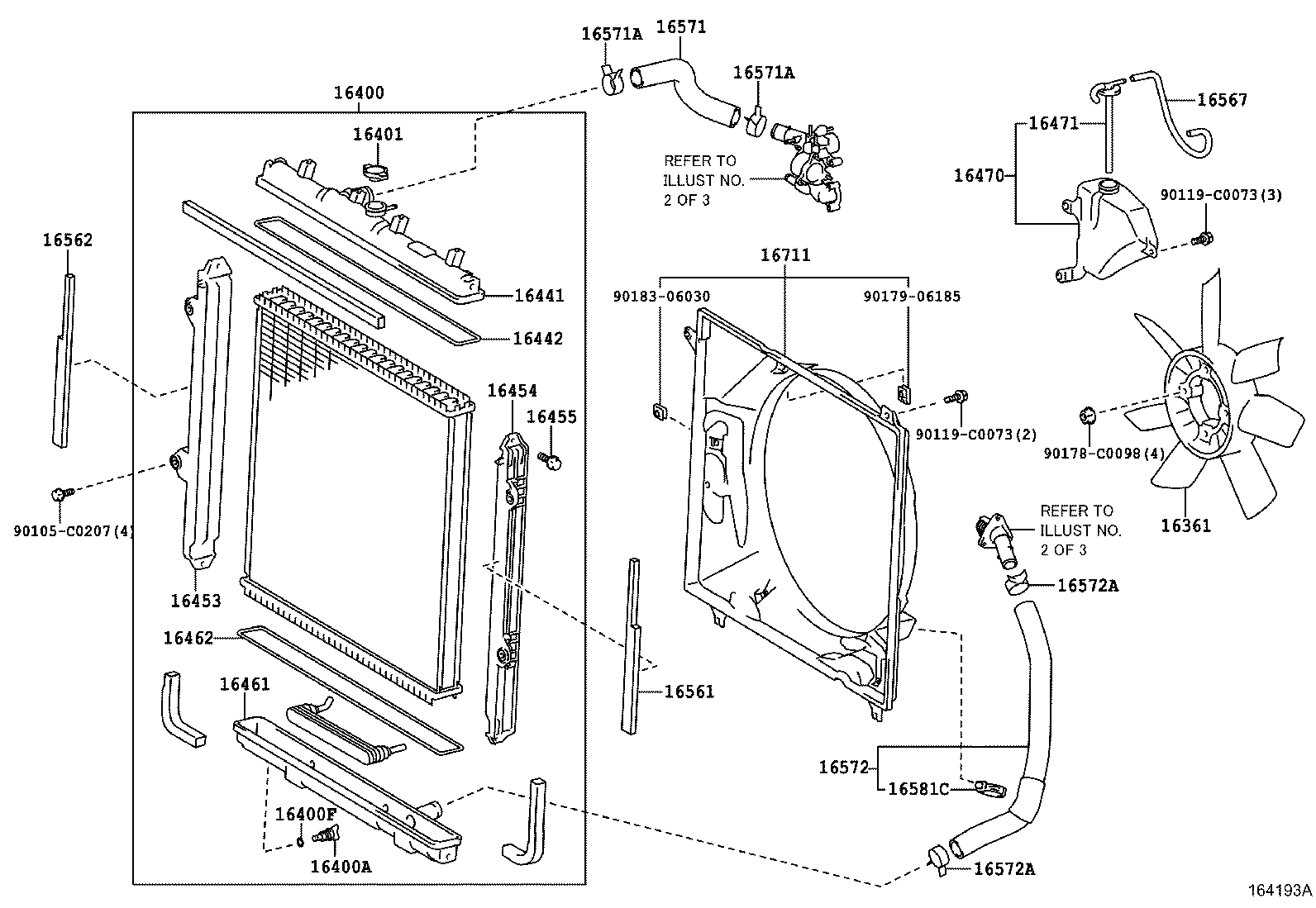

ILLUST NO. 1 OF 3(1005- )

LAND CRUISER PRADO | RADIATOR WATER OUTLET 16361 - FAN 16400 - RADIATOR ASSY 16400A - COCK SUB-ASSY, RADIATOR DRAIN 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16441 - TANK, RADIATOR, UPPER 16442 - RING, O(FOR RADIATOR UPPER TANK) 16453 - PLATE, RADIATOR SIDE 16454 - PLATE, RADIATOR SIDE 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE 16461 - TANK, RADIATOR, LOWER 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470 - TANK ASSY, RADIATOR RESERVE 16471 - CAP SUB-ASSY, RESERVE TANK 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 16567 - HOSE(FOR RADIATOR RESERVE TANK) 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) 16711 - SHROUD, FAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
