TOYOTA LAND CRUISER PRADO TRJ150L-GKPEKV / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

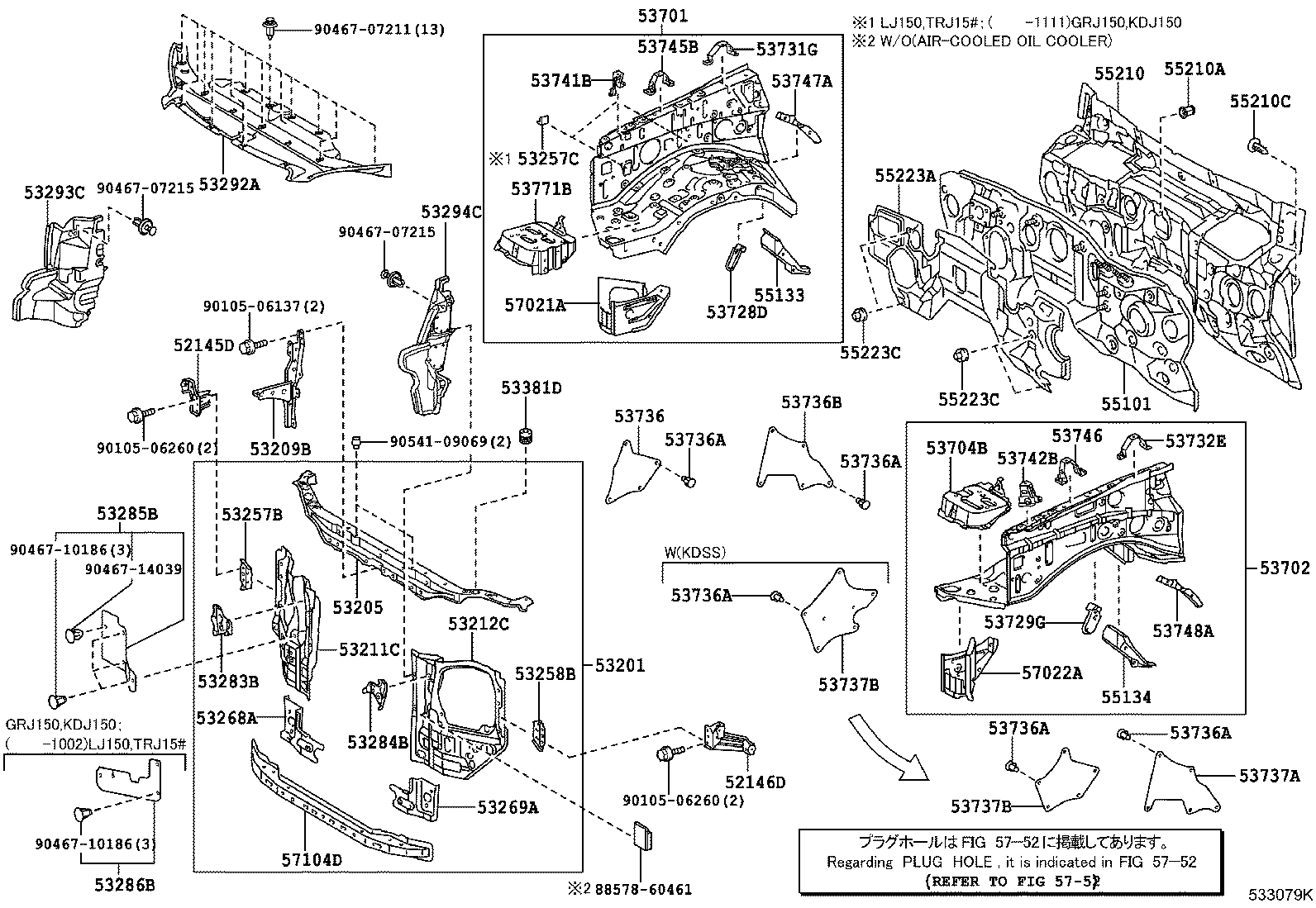

FRONT FENDER APRON DASH PANEL

(0908-1308)

 LAND CRUISER PRADO |  FRONT FENDER APRON DASH PANEL 52145D - BRACKET, FRONT BUMPER SIDE MOUNTING, RH 52146D - BRACKET, FRONT BUMPER SIDE MOUNTING, LH 53201 - SUPPORT SUB-ASSY, RADIATOR 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT 53211C - SUPPORT, RADIATOR, RH 53212C - SUPPORT, RADIATOR, LH 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER 53257C - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH 53283B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH 53284B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH 53285B - SEAL, RADIATOR SIDE AIR, NO.1 53286B - SEAL, RADIATOR SIDE AIR, NO.2 53292A - SEAL, RADIATOR SUPPORT, UPPER 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53381D - BUMPER, HOOD TO FRONT SHROUD 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53704B - SUPPORT SUB-ASSY, BATTERY, LH 53728D - BRACKET, FENDER APRON, RH 53729G - BRACKET, FENDER APRON, LH 53731G - REINFORCEMENT, FRONT FENDER APRON, RH 53732E - REINFORCEMENT, FRONT FENDER APRON, LH 53736 - SEAL, FRONT FENDER APRON, RH 53736A - CLIP(FOR FRONT FENDER APRON SEAL) 53736A - CLIP(FOR FRONT FENDER APRON SEAL) 53736A - CLIP(FOR FRONT FENDER APRON SEAL) 53736A - CLIP(FOR FRONT FENDER APRON SEAL) 53736A - CLIP(FOR FRONT FENDER APRON SEAL) 53736B - SEAL, FRONT FENDER APRON TO FRAME, NO.1 RH 53737A - SEAL, FRONT FENDER APRON TO FRAME, NO.1 LH 53737B - SEAL, FRONT FENDER APRON, LH 53737B - SEAL, FRONT FENDER APRON, LH 53741B - PLATE, FENDER APRON REINFORCE, RH 53742B - PLATE, FENDER APRON REINFORCE, LH 53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH 53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH 53747A - EXTENSION, APRON FENDER SIDE, RH 53748A - EXTENSION, APRON FENDER SIDE, LH 53771B - SUPPORT, BATTERY CARRIER, RH 55101 - PANEL SUB-ASSY, DASH 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55210C - CLIP 55223A - INSULATOR, DASH PANEL, OUTER 55223C - CLIP 55223C - CLIP 57021A - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH 57022A - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH 57104D - MEMBER SUB-ASSY, FRONT CROSS ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
