TOYOTA LAND CRUISER PRADO TRJ150L-GKPEKV / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

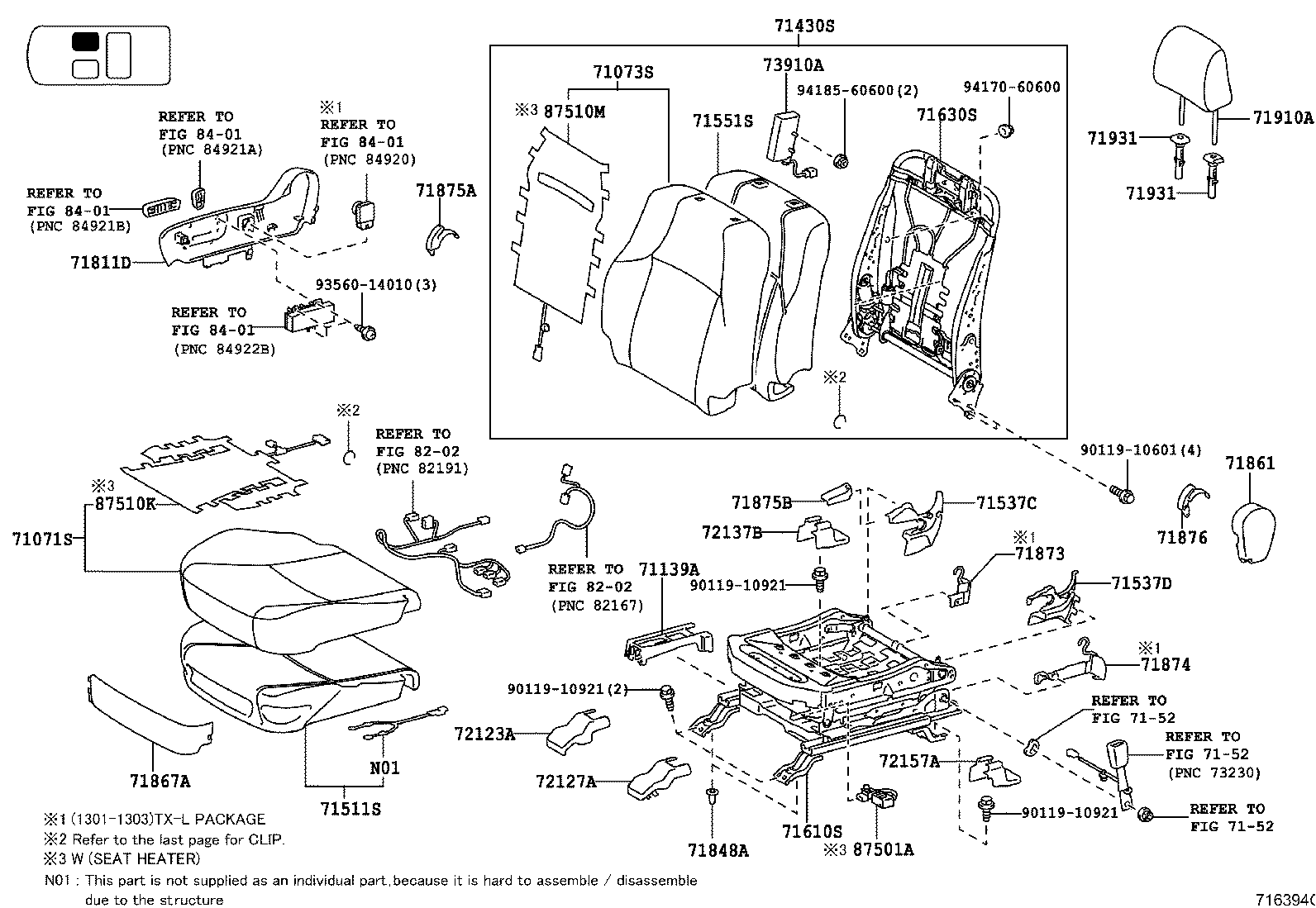

SEAT SEAT TRACK

PASSENGER,W(POWER,SRS SIDE AIR BAG)ILLUST NO. 2 OF 4(0908-1308)GRJ150,KDJ150,LJ150,TRJ150..LHD

 LAND CRUISER PRADO |  SEAT SEAT TRACK 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71139A - COVER, FRONT SEAT LEG, NO.1 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig ** Refer Fig 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71811D - SHIELD, FRONT SEAT CUSHION, RH 71848A - CAP, SEAT ADJUSTER COVER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72137B - COVER, SEAT TRACK, RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 73910A - AIR BAG ASSY, FRONT SEAT, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH 87510M - HEATER ASSY, FRONT SEAT BACK, RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
