TOYOTA LAND CRUISER PRADO TRJ155L-GJPEKV / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

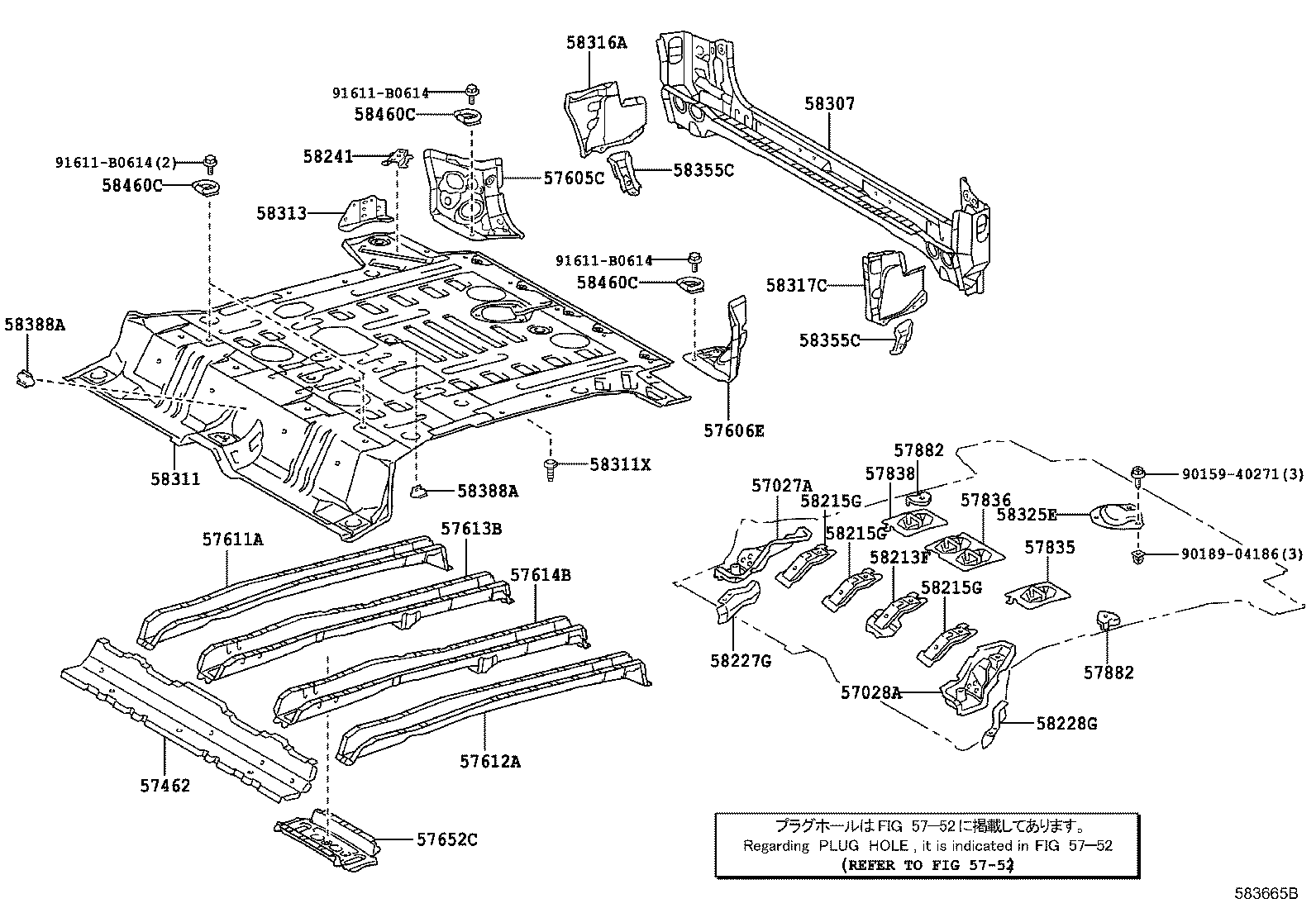

REAR FLOOR PANEL REAR FLOOR MEMBER

(0908- )TRJ155

LAND CRUISER PRADO | REAR FLOOR PANEL REAR FLOOR MEMBER 57027A - BRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH 57028A - BRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 ** Refer Fig 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57611A - MEMBER, REAR FLOOR SIDE, RH 57612A - MEMBER, REAR FLOOR SIDE, LH 57613B - MEMBER, REAR FLOOR SIDE CENTER, RH 57614B - MEMBER, REAR FLOOR SIDE, CENTER LH 57652C - MEMBER, REAR FLOOR CROSS, NO.1 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 57838 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4 57882 - REINFORCEMENT, BELT ANCHOR, NO.4 57882 - REINFORCEMENT, BELT ANCHOR, NO.4 58213F - REINFORCEMENT, CENTER FLOOR PANEL 58215G - BRACKET, REAR SEAT MOUNTING, NO.1 58215G - BRACKET, REAR SEAT MOUNTING, NO.1 58215G - BRACKET, REAR SEAT MOUNTING, NO.1 58227G - PLATE, FLOOR PANEL SIDE, RH 58228G - PLATE, FLOOR PANEL SIDE, LH 58241 - BRACKET, JACK 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58311X - BOLT, REAR FLOOR WELD 58313 - PANEL, REAR FLOOR SIDE, RH 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH 58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58355C - BRACKET, REAR BUMPER ARM 58355C - BRACKET, REAR BUMPER ARM 58388A - BRACKET,REAR FLOOR PLATE 58388A - BRACKET,REAR FLOOR PLATE 58460C - STRIKER ASSY, LUGGAGE HOLD BELT 58460C - STRIKER ASSY, LUGGAGE HOLD BELT 58460C - STRIKER ASSY, LUGGAGE HOLD BELT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
