TOYOTA LAND CRUISER PRADO TRJ155L-GJPEKV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

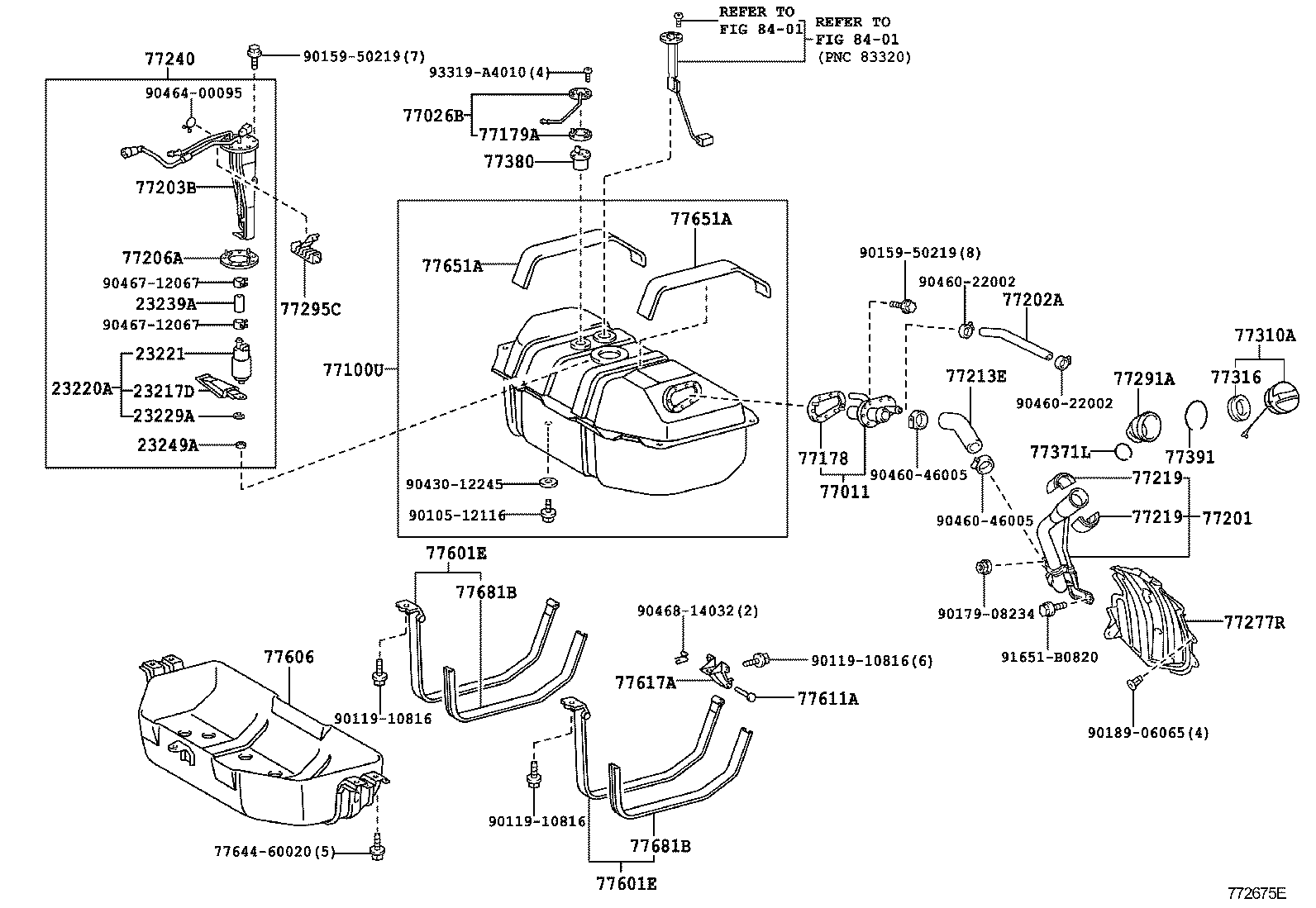

FUEL TANK ILLUST NO. 1 OF 3(0908- )TRJ155

LAND CRUISER PRADO | FUEL TANK TUBE 23217D - FILTER, FUEL PUMP 23220A - PUMP ASSY, FUEL W/FILTER 23221 - PUMP, FUEL 23229A - CLIP(FOR FUEL PUMP FILTER) 23239A - HOSE 23249A - RUBBER, CUSHION(FOR FUEL PUMP) 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77100U - TANK SUB-ASSY, FUEL 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179A - GASKET, FUEL TANK BREATHER TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) 77203B - TUBE SUB-ASSY, FUEL SUCTION 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77213E - HOSE, FUEL TANK TO FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77240 - TUBE ASSY, FUEL SUCTION 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77295C - GROMMET, FUEL TUBE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77371L - RING, FUEL TANK FILLER PIPE SHIELD 77380 - VALVE ASSY, FUEL CUT OFF 77391 - RING, FUEL INLET BOX 77601E - BAND SUB-ASSY, FUEL TANK 77601E - BAND SUB-ASSY, FUEL TANK 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611A - PIN (FOR FUEL TANK BAND) 77617A - UNION, AUXILIARY FUEL BAND ** Std Part 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77681B - SEAT, FUEL TANK BAND 77681B - SEAT, FUEL TANK BAND ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
