TOYOTA MARK X GRX130R-AETZH / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

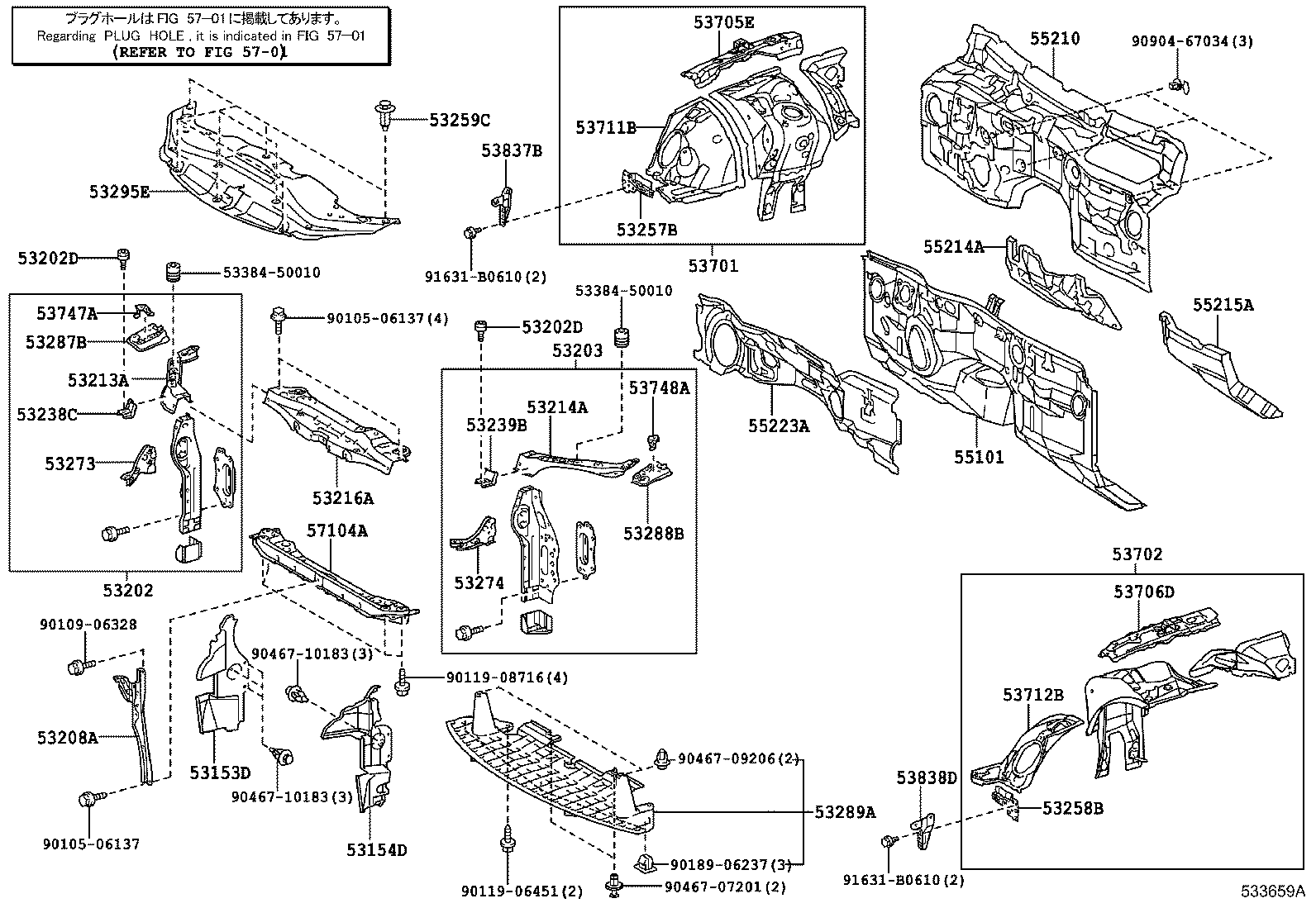

FRONT FENDER APRON DASH PANEL

(1112- )

MARK X | FRONT FENDER APRON DASH PANEL 53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH 53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53202D - CUSHION, RADIATOR SUPPORT 53202D - CUSHION, RADIATOR SUPPORT 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53213A - SUPPORT, RADIATOR, UPPER RH 53214A - SUPPORT, RADIATOR, UPPER LH 53216A - SUPPORT, RADIATOR, UPPER 53238C - BRACKET, HOOD BUMPER MOUNTING, RH 53239B - BRACKET, HOOD BUMPER MOUNTING, LH 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH 53287B - EXTENSION, RADIATOR SUPPORT, RH 53288B - EXTENSION, RADIATOR SUPPORT, LH 53289A - COVER, RADIATOR SUPPORT OPENING 53295E - SEAL, COOL AIR INTAKE DUCT ** Std Part ** Std Part 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53747A - EXTENSION, APRON FENDER SIDE, RH 53748A - EXTENSION, APRON FENDER SIDE, LH 53837B - BRACKET, FRONT SIDE PANEL, NO.2 53838D - BRACKET, FRONT SIDE PANEL, NO.2 LH 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 55214A - PAD, DASH PANEL INSULATOR, NO.2 55215A - PAD, DASH PANEL INSULATOR, NO.3 55223A - INSULATOR, DASH PANEL, OUTER ** Refer Fig 57104A - MEMBER SUB-ASSY, FRONT CROSS ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
