TOYOTA MARK X GRX130R-AETZH / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SIDE MEMBER

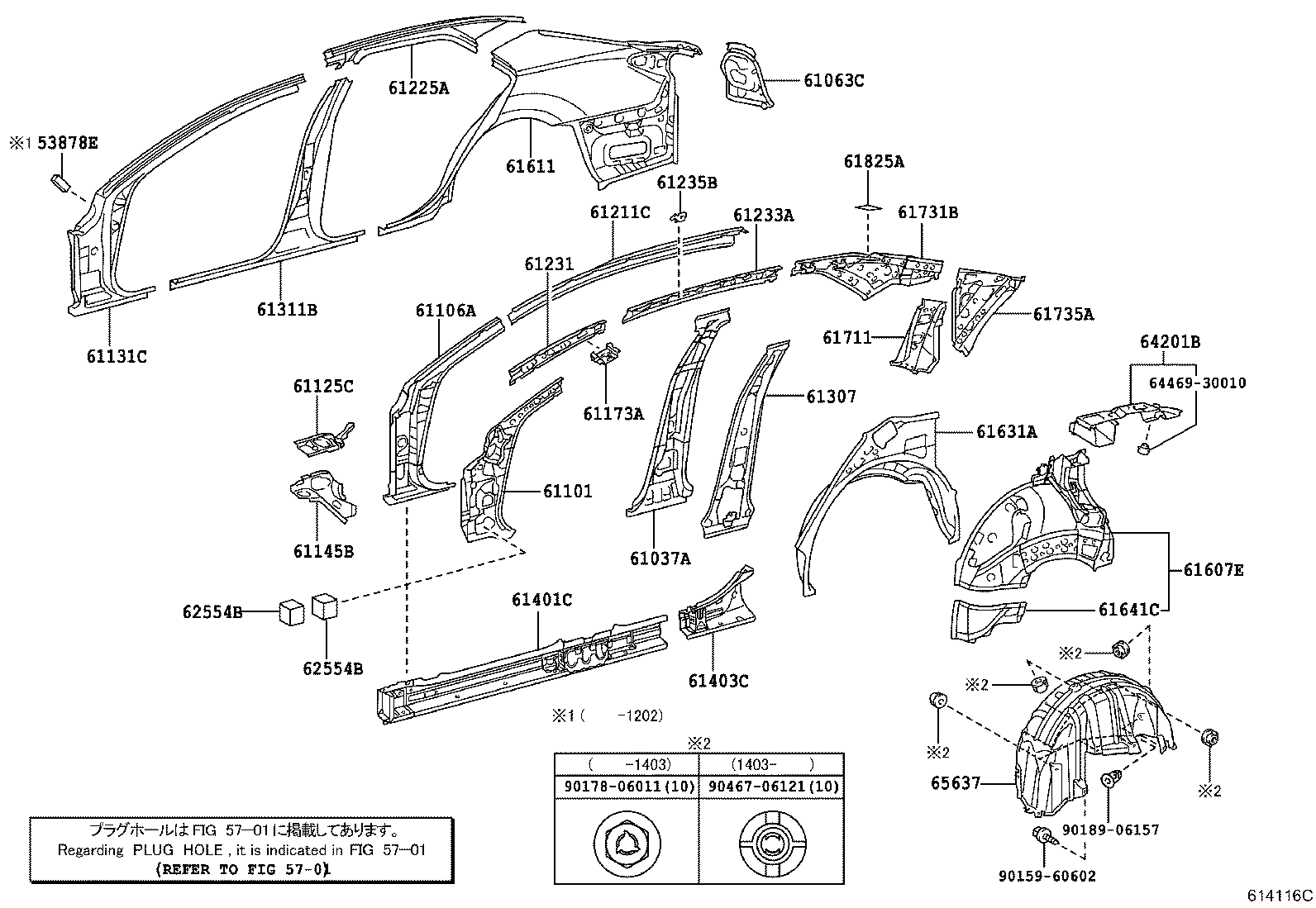

RH ILLUST NO. 1 OF 2(1112- )

MARK X | SIDE MEMBER 53878E - SPACER, FRONT FENDER ** Refer Fig 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH 61063C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH 61101 - PANEL SUB-ASSY, COWL SIDE, RH 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH 61125C - REINFORCEMENT, COWL SIDE PANEL, RH 61131C - PILLAR, FRONT BODY, OUTER RH 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH 61173A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH 61211C - RAIL, ROOF SIDE, RH 61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH 61231 - RAIL, ROOF SIDE, INNER RH 61233A - RAIL, ROOF SIDE, INNER NO.2 RH 61235B - BRACKET, ASSIST GRIP 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH 61311B - PILLAR, CENTER BODY, OUTER RH 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH 61611 - PANEL, QUARTER, RH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH 61711 - PANEL, ROOF SIDE, OUTER RH 61731B - PANEL, ROOF SIDE, INNER RH 61735A - PANEL, ROOF SIDE, INNER REAR RH 61825A - PLATE, NOISE CONTROL, NO.2 62554B - PAD, PILLAR, NO.4 62554B - PAD, PILLAR, NO.4 64201B - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH ** Std Part 65637 - LINER, REAR WHEEL HOUSE, RH ** Std Part ** Std Part ** Std Part ** Std Part
