TOYOTA MARK X GRX130R-AETZH / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR PANEL GLASS

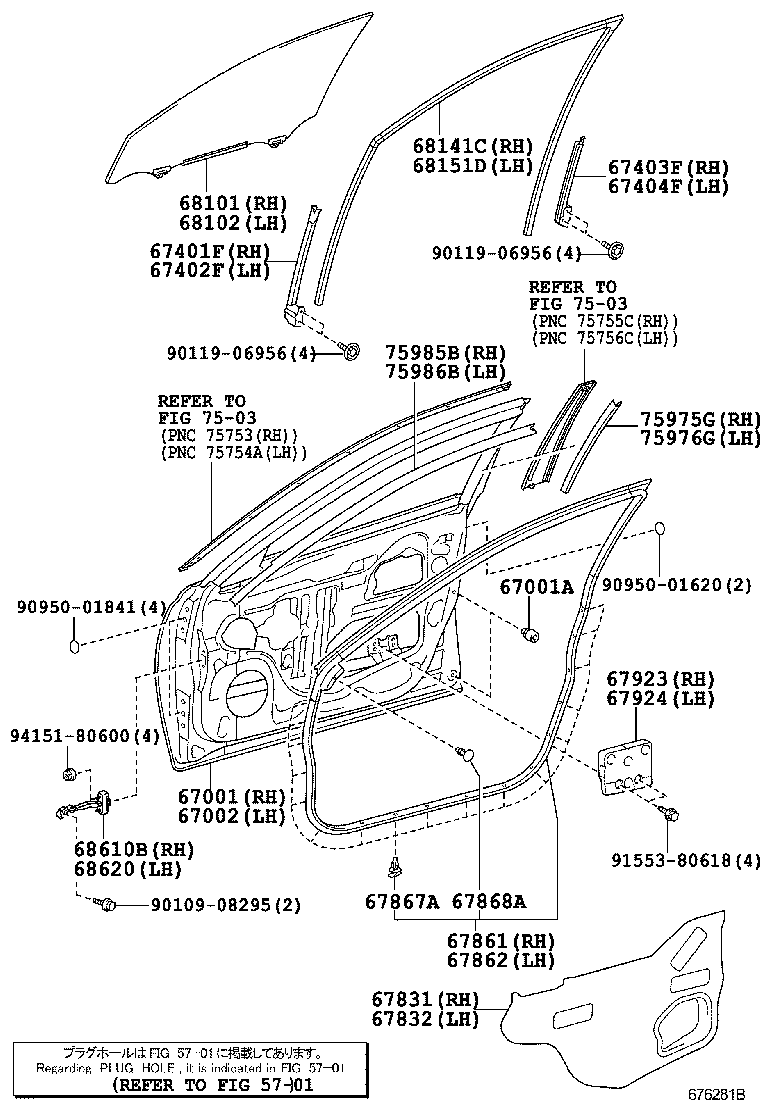

DOOR PANEL ILLUST NO. 1 OF 2(1112- )

MARK X | FRONT DOOR PANEL GLASS ** Refer Fig 67001 - PANEL SUB-ASSY, FRONT DOOR, RH 67001A - CUSHION, FRONT DOOR PANEL 67002 - PANEL SUB-ASSY, FRONT DOOR, LH 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH 67831 - COVER, FRONT DOOR SERVICE HOLE, RH 67832 - COVER, FRONT DOOR SERVICE HOLE, LH 67861 - WEATHERSTRIP, FRONT DOOR, RH 67862 - WEATHERSTRIP, FRONT DOOR, LH 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68141C - RUN, FRONT DOOR GLASS, RH 68151D - RUN, FRONT DOOR GLASS, LH 68610B - CHECK ASSY, FRONT DOOR, RH 68620 - CHECK ASSY, FRONT DOOR, LH ** Refer Fig ** Refer Fig 75975G - STRIPE, FRONT DOOR, OUTSIDE LWR RH 75976G - STRIPE, FRONT DOOR, OUTSIDE LWR LH 75985B - STRIPE, FRONT DOOR, RH 75986B - STRIPE, FRONT DOOR, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
