TOYOTA PREVIA TARAGO ACR50R-GFXGK / POWERTRAIN-CHASSIS / TORQUE CONVERTER FRONT OIL PUMP CVT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TORQUE CONVERTER FRONT OIL PUMP CVT

K112 (1003- )CVFC..DLX,GL..GEN

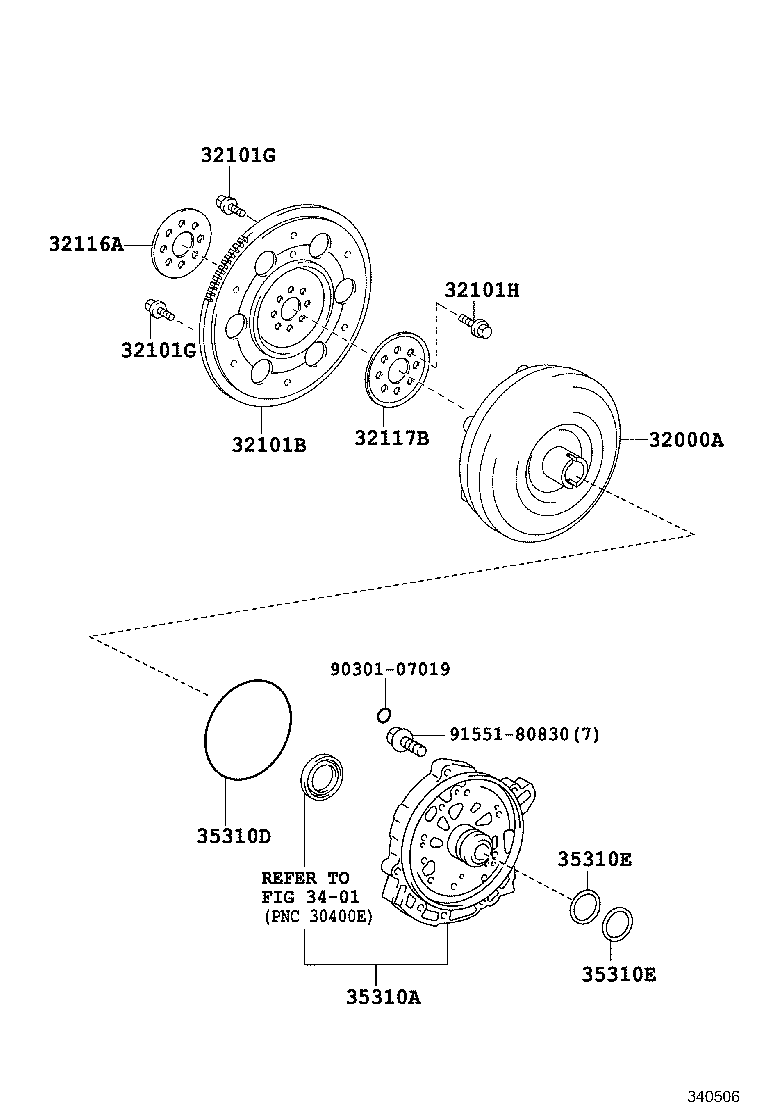

PREVIA TARAGO | TORQUE CONVERTER FRONT OIL PUMP CVT 32000A - CONVERTER ASSY, TORQUE 32101B - GEAR SUB-ASSY, DRIVE PLATE & RING 32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) 32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) 32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) 32116A - SPACER, DRIVE PLATE, FRONT 32117B - SPACER, DRIVE PLATE, REAR ** Refer Fig 35310A - PUMP ASSY, FRONT OIL 35310D - RING, O (FOR FRONT OIL PUMP) 35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP) 35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP) ** Std Part ** Std Part
