TOYOTA PRIUS C NHP10R-AHXVB / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

(1112- )RHD

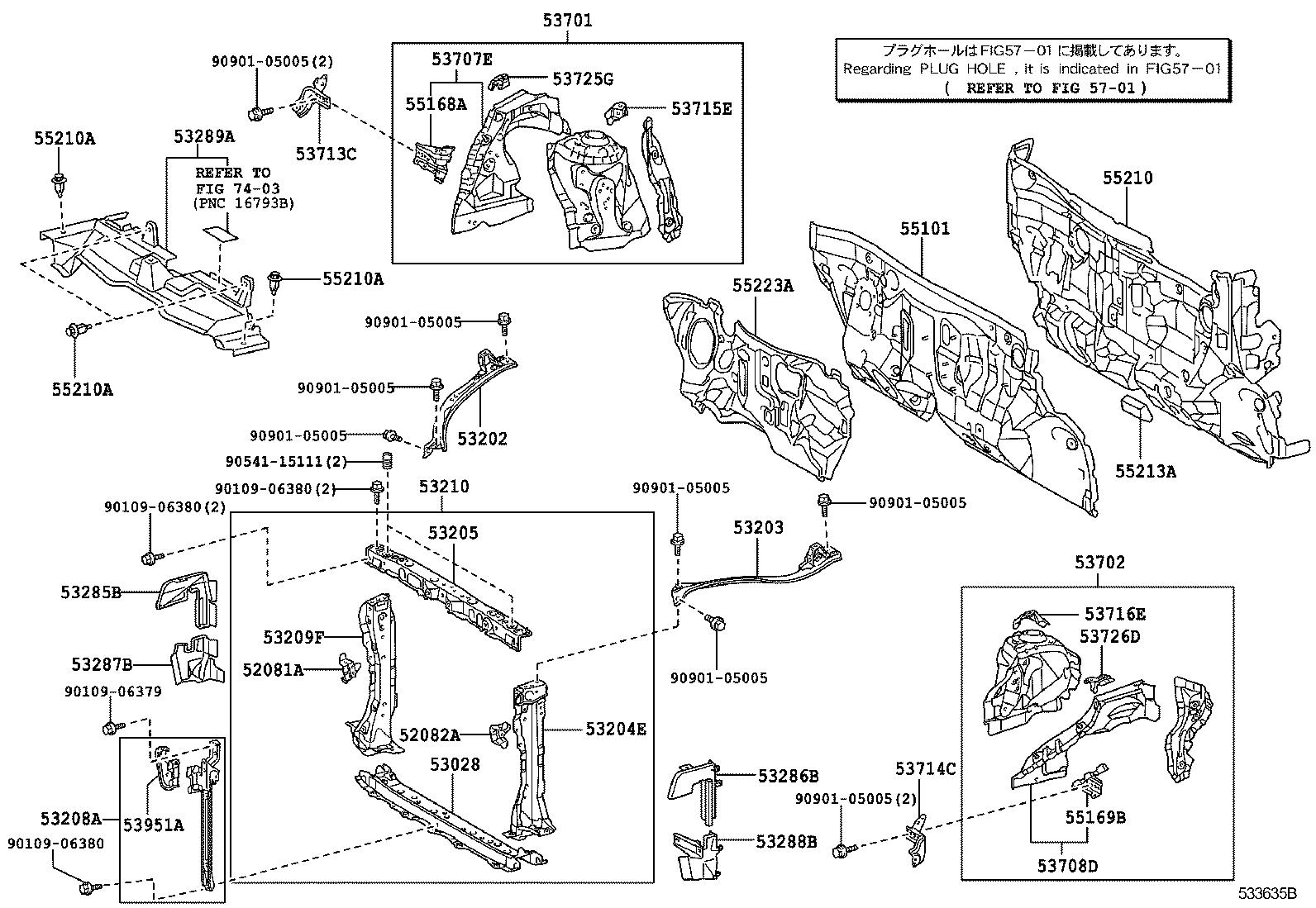

PRIUS C | FRONT FENDER APRON DASH PANEL 52081A - STAY SUB-ASSY, FRONT BUMPER, RH 52082A - STAY SUB-ASSY, FRONT BUMPER, LH 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH 53210 - SUPPORT ASSY, RADIATOR 53285B - SEAL, RADIATOR SIDE AIR, NO.1 53286B - SEAL, RADIATOR SIDE AIR, NO.2 53287B - EXTENSION, RADIATOR SUPPORT, RH 53288B - EXTENSION, RADIATOR SUPPORT, LH 53289A - COVER, RADIATOR SUPPORT OPENING 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53707E - APRON SUB-ASSY, FENDER SIDE, RH 53708D - APRON SUB-ASSY, FENDER SIDE, LH 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH 53715E - EXTENSION, FRONT FENDER APRON, REAR RH 53716E - EXTENSION, FRONT FENDER APRON, REAR LH 53725G - APRON, FRONT FENDER NO.2 SIDE, RH 53726D - APRON, FRONT FENDER NO.2 SIDE, LH 53951A - SUPPORT, FRONT END PANEL, UPPER 55101 - PANEL SUB-ASSY, DASH 55168A - BRACKET, FRONT FENDER MOUNTING, RH 55169B - BRACKET, FRONT FENDER MOUNTING, LH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55210A - CLIP 55210A - CLIP 55213A - PAD, DASH PANEL SILENCER 55223A - INSULATOR, DASH PANEL, OUTER ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
