TOYOTA PRIUS C NHP10R-AHXVB / ELECTRICAL / HEADLAMP CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEADLAMP CLEANER

(1112- )

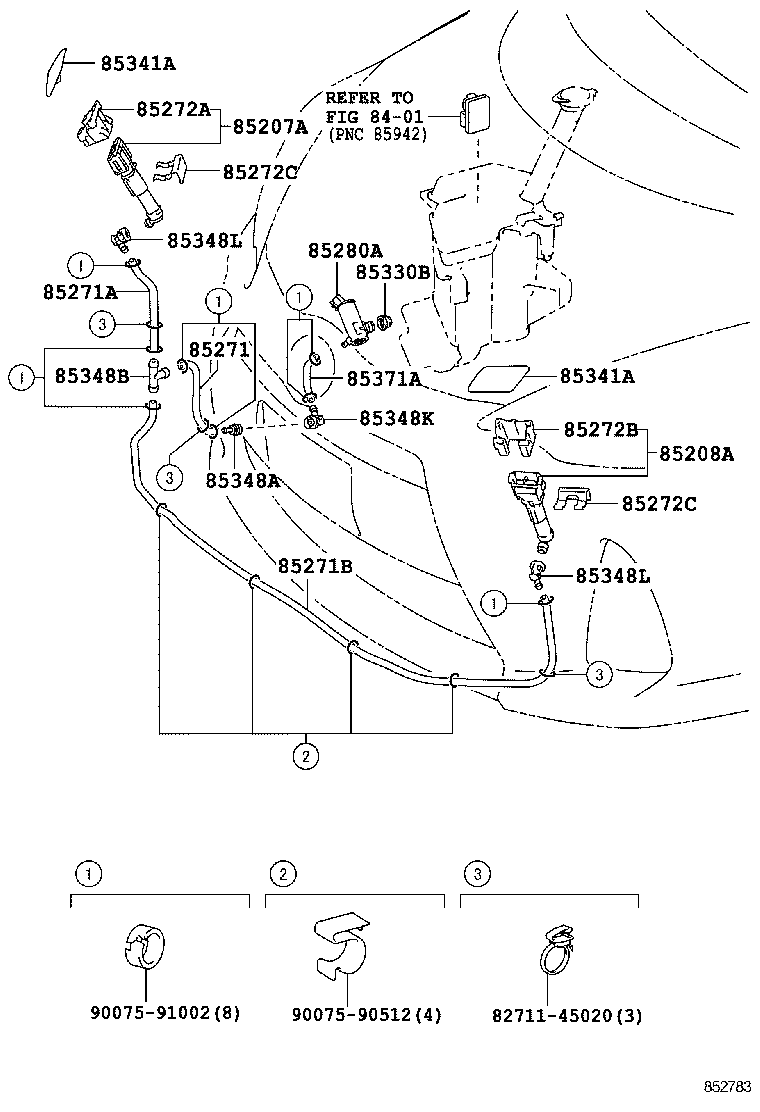

 PRIUS C |  HEADLAMP CLEANER  ** Std Part ** Refer Fig 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH 85271 - HOSE, HEADLAMP CLEANER, NO.1 85271A - HOSE, HEADLAMP CLEANER, NO.2 85271B - HOSE, HEADLAMP CLEANER, NO.3 85272A - CLAMP, HEADLAMP CLEANER, NO.1 85272B - CLAMP, HEADLAMP CLEANER, NO.2 85272C - CLAMP, HEADLAMP CLEANER, NO.3 85272C - CLAMP, HEADLAMP CLEANER, NO.3 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER 85330B - BUSH, HEADLAMP CLEANER WASHER JAR 85341A - COVER, HEADLAMP CLEANER WASHER NOZZLE 85341A - COVER, HEADLAMP CLEANER WASHER NOZZLE 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)  ** Std Part  ** Std Part
