TOYOTA PRIUS CHINA ZVW30L-AHXEBC / BODY / SEAT BELT CHILD RESTRAINT SEAT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT BELT CHILD RESTRAINT SEAT

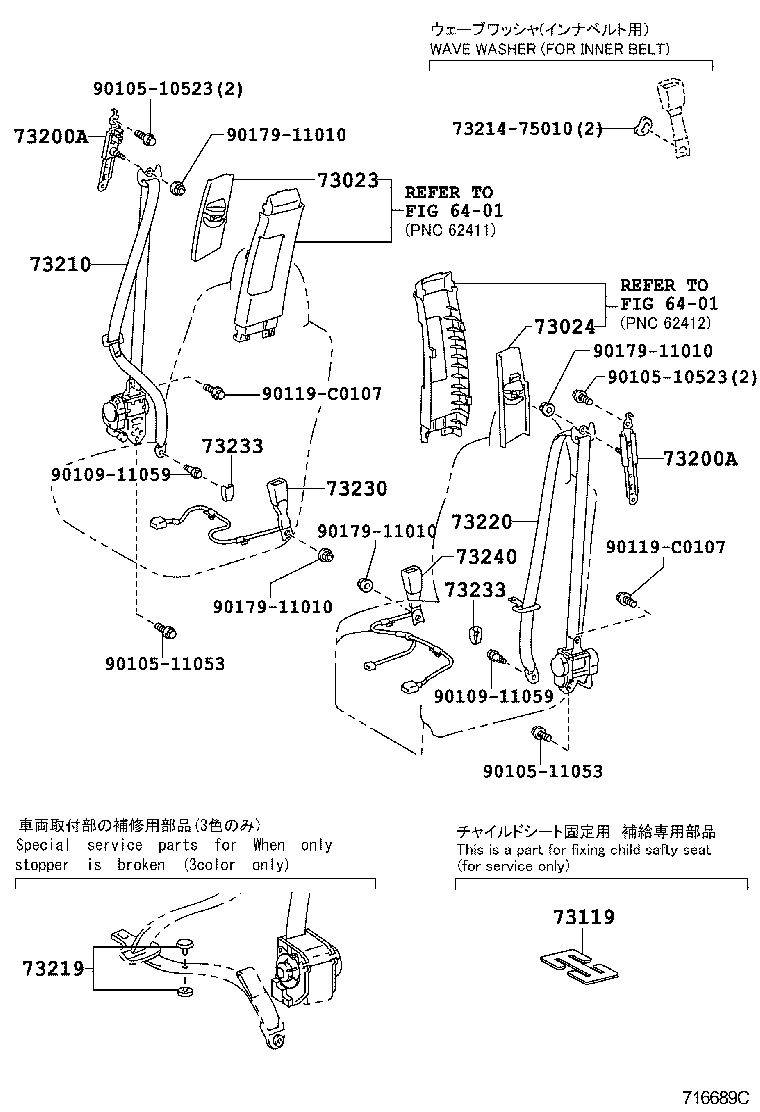

FRONT ILLUST NO. 1 OF 2(1112- )

PRIUS CHINA | SEAT BELT CHILD RESTRAINT SEAT ** Refer Fig ** Refer Fig 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH 73119 - PLATE, SEAT BELT WEBBING CLIP 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR 73210 - BELT ASSY, FRONT SEAT OUTER, RH ** Std Part 73219 - STOPPER, TONGUE PLATE 73220 - BELT ASSY, FRONT SEAT OUTER, LH 73230 - BELT ASSY, FRONT SEAT INNER, RH 73233 - COVER, LAP BELT OUTER ANCHOR 73233 - COVER, LAP BELT OUTER ANCHOR 73240 - BELT ASSY, FRONT SEAT INNER, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
