TOYOTA PRIUS CHINA ZVW30L-AHXEBC / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING WATER PIPING

(1112- )

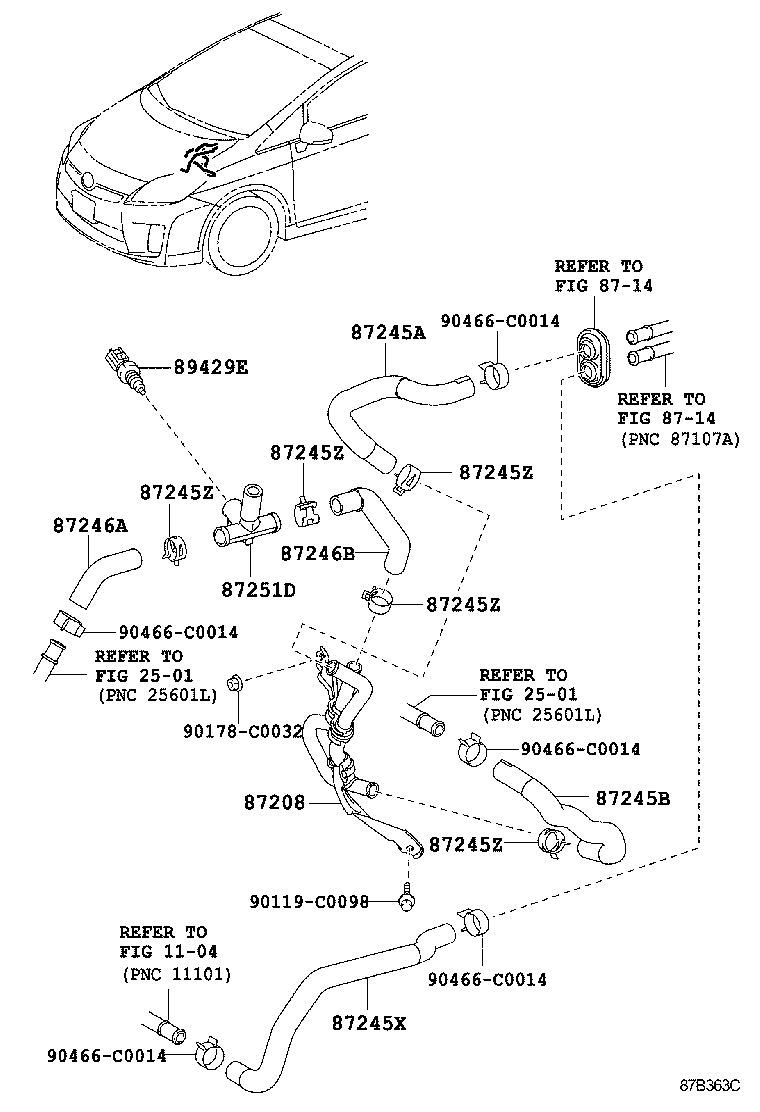

 PRIUS CHINA |  HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87208 - PIPE SUB-ASSY, HEATER WATER 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87245X - HOSE, HEATER WATER 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87246A - HOSE, HEATER WATER, OUTLET A 87246B - HOSE, HEATER WATER, OUTLET B 87251D - JOINT, WATER, NO.1 89429E - SENSOR, WATER TEMPERATURE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
