TOYOTA PRIUS CHINA ZVW30L-AHXEBC / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

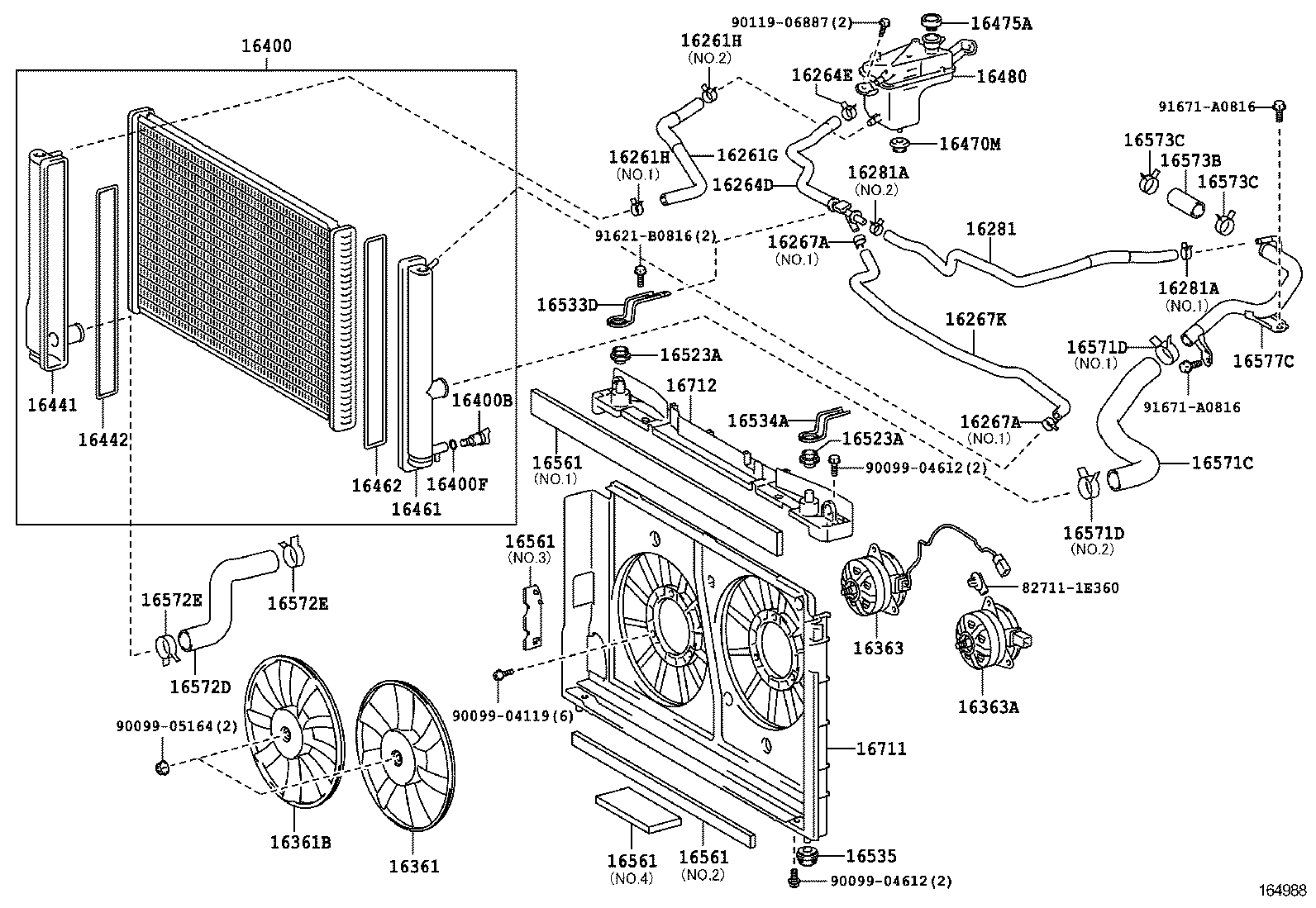

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(1112- )

PRIUS CHINA | RADIATOR WATER OUTLET 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16264D - HOSE, WATER BY-PASS, NO.2 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267K - HOSE, WATER BY-PASS, NO.3 16281 - HOSE, WATER BY-PASS, NO.4 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16361 - FAN 16361B - FAN, NO.2 16363 - MOTOR, COOLING FAN 16363A - MOTOR, COOLING FAN, NO.2 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16441 - TANK, RADIATOR, UPPER 16442 - RING, O(FOR RADIATOR UPPER TANK) 16461 - TANK, RADIATOR, LOWER 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470M - GROMMET 16475A - CAP, RESERVE TANK 16480 - RESERVE TANK ASSY, RADIATOR W/O CAP 16523A - CUSHION, RADIATOR SUPPORT 16523A - CUSHION, RADIATOR SUPPORT 16533D - SUPPORT, RADIATOR, RH 16534A - SUPPORT, RADIATOR, LH 16535 - SUPPORT, RADIATOR, LOWER 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16573B - HOSE, RADIATOR, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16577C - PIPE, RADIATOR 16711 - SHROUD, FAN 16712 - SHROUD, FAN, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
