TOYOTA PRIUS ZVW30L-AHXEBW / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

(0904- )LHD

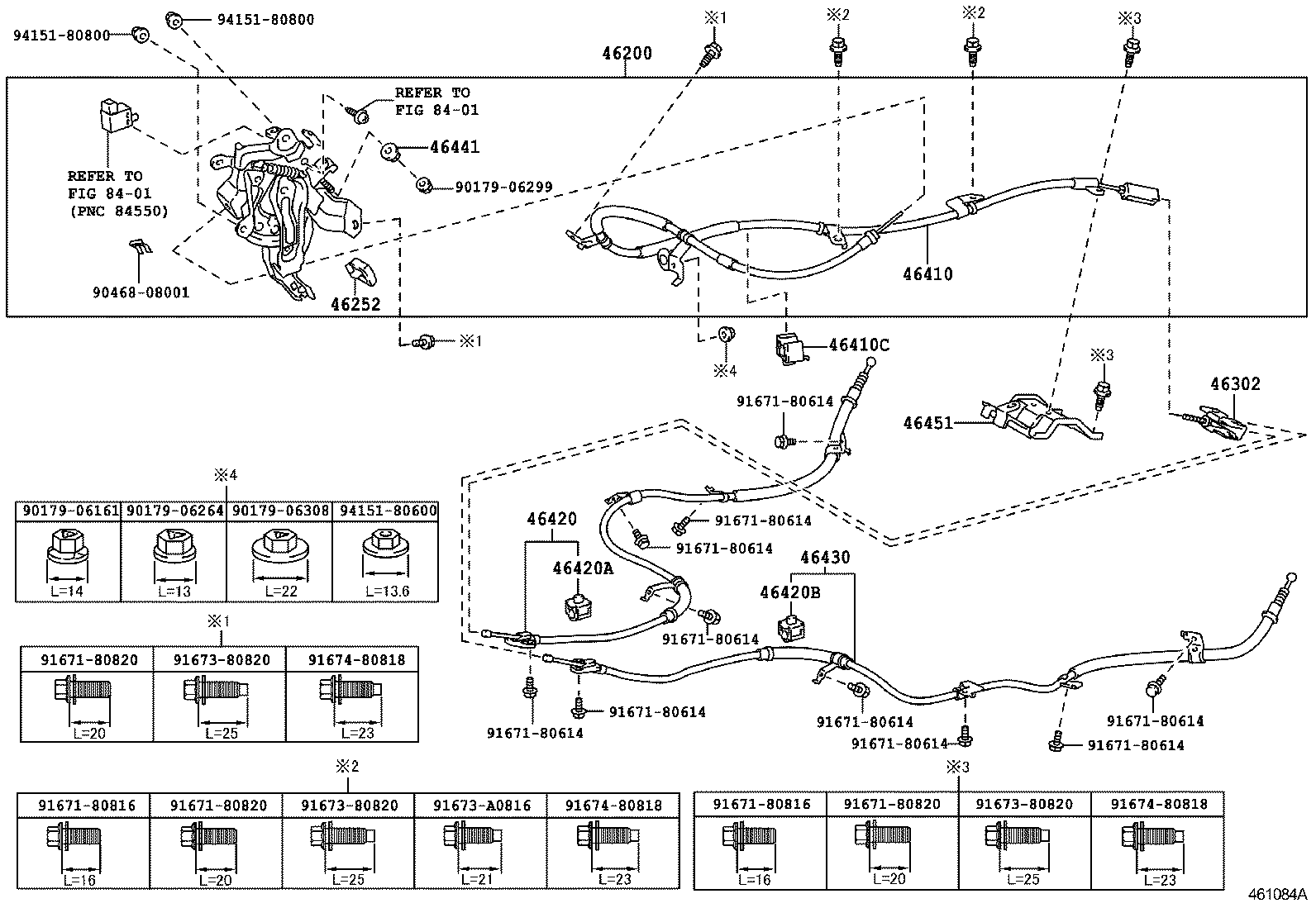

 PRIUS |  PARKING BRAKE CABLE 46200 - PEDAL ASSY, PARKING BRAKE CONTROL 46252 - PAD, PARKING PEDAL 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46441 - NUT, WIRE ADJUSTING, NO.1 46451 - BRACKET, CABLE SUPPORT ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
