TOYOTA PRIUS ZVW30R-AHXEBW / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

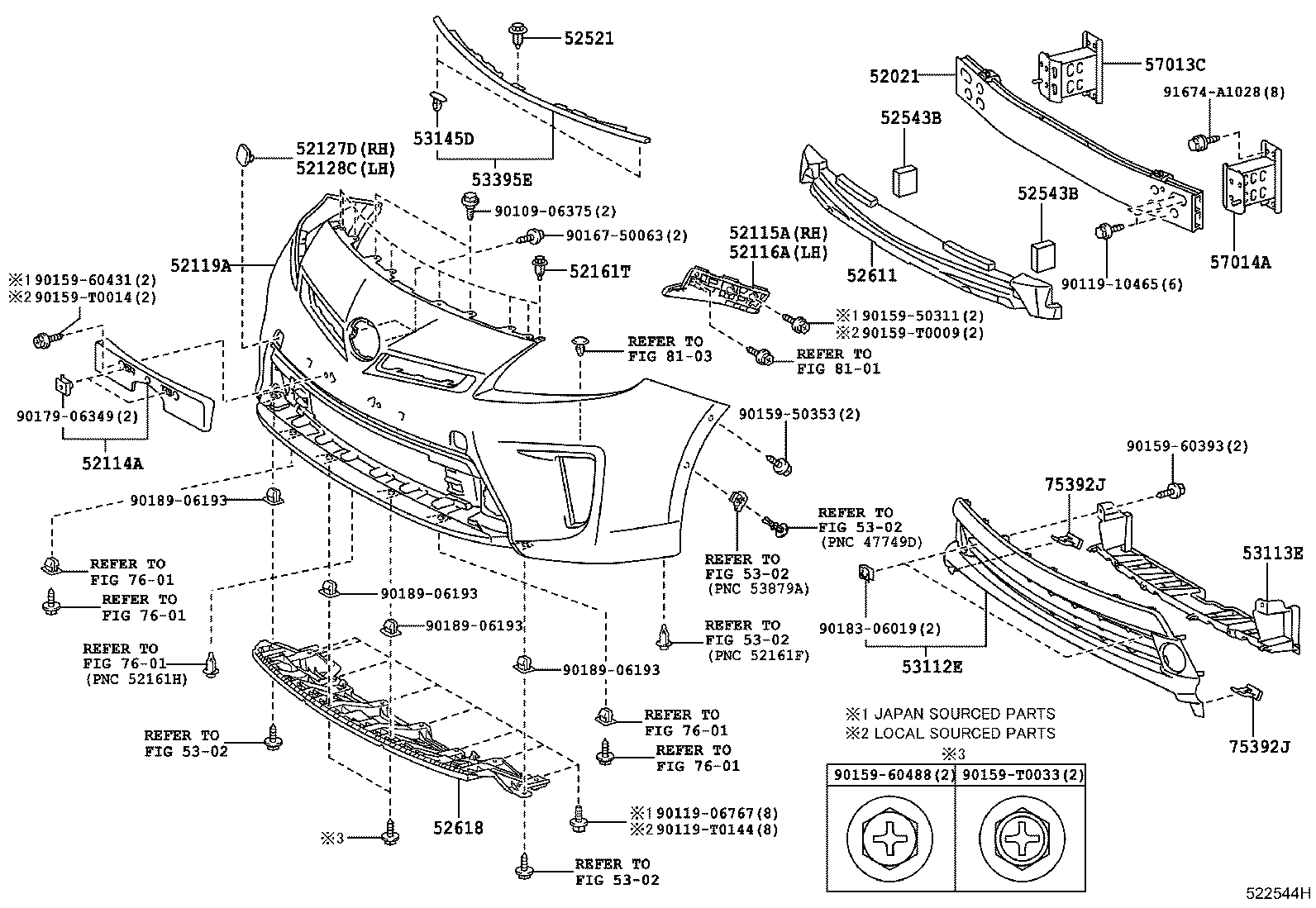

FRONT BUMPER BUMPER STAY

(1112- )ARL,EUR ; (1204- )TH

 PRIUS |  FRONT BUMPER BUMPER STAY 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52115A - SUPPORT, FRONT BUMPER SIDE, RH 52116A - SUPPORT, FRONT BUMPER SIDE, LH 52119A - COVER, FRONT BUMPER 52127D - COVER, FRONT BUMPER HOLE, RH 52128C - COVER, FRONT BUMPER HOLE, LH 52161T - PIECE, FRONT BUMPER 52521 - RETAINER, FRONT BUMPER, UPPER CENTER 52543B - SEAL, FRONT BUMPER 52543B - SEAL, FRONT BUMPER 52611 - ABSORBER, FRONT BUMPER ENERGY 52618 - ABSORBER, FRONT BUMPER, LOWER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 53112E - GRILLE, RADIATOR, LOWER NO.1 53113E - GRILLE, RADIATOR, LOWER NO.2 53145D - CLIP, RADIATOR GRILLE 53395E - SEAL, HOOD TO FRONT END PANEL 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH 75392J - RETAINER, OUTSIDE MOULDING 75392J - RETAINER, OUTSIDE MOULDING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
