TOYOTA RACTIS NCP120R-CHXXKH / POWERTRAIN-CHASSIS / TRANSAXLE ASSY CVT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSAXLE ASSY CVT

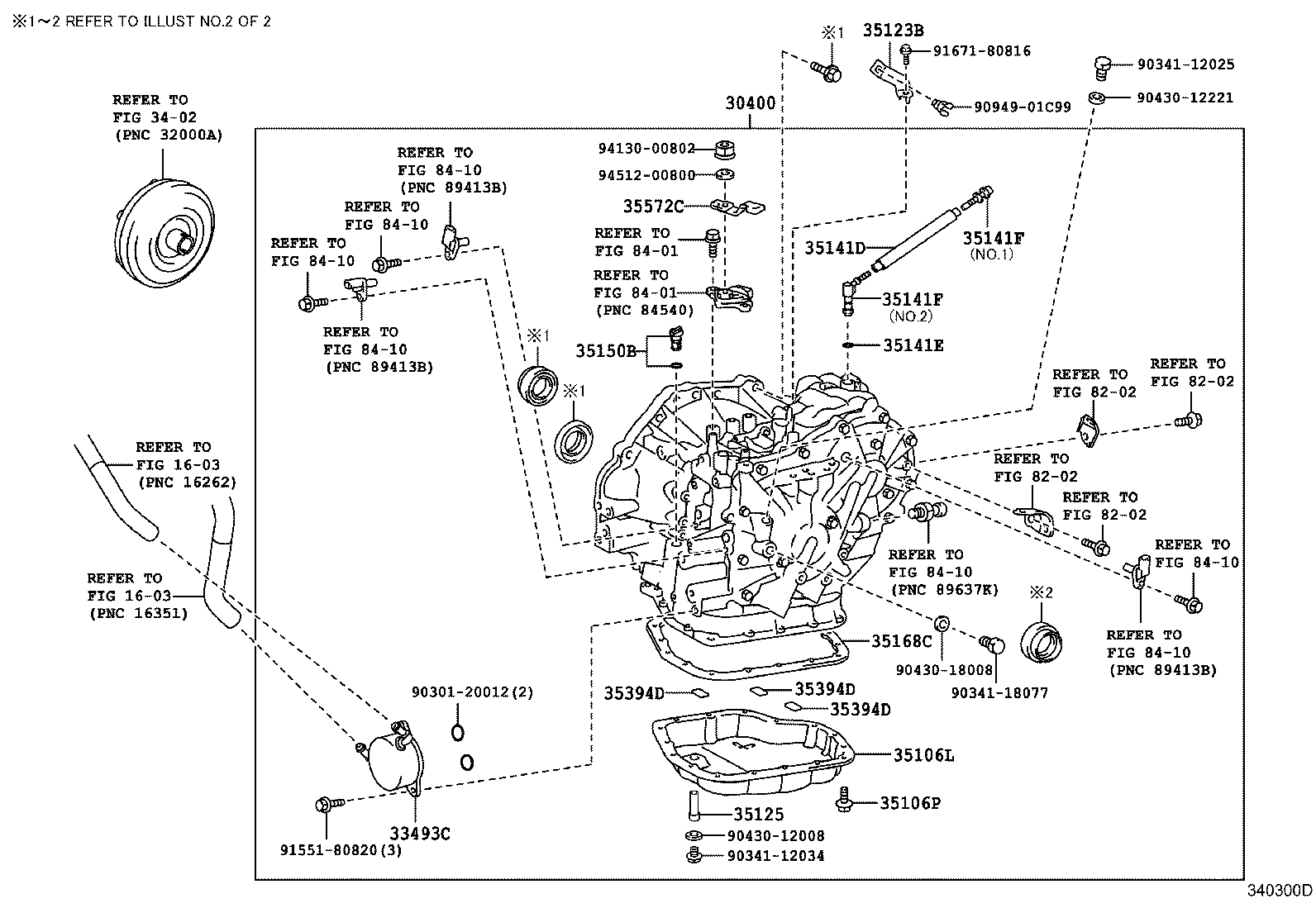

K310 ILLUST NO. 1 OF 2(1011- )

RACTIS | TRANSAXLE ASSY CVT ** Refer Fig ** Refer Fig 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE 33493C - COOLER, TRANSMISSION OIL ** Refer Fig 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) 35106P - BOLT(FOR TRANSAXLE OIL PAN) 35123B - SKIRT,TRANSMISSION BREATHER 35125 - TUBE, TRANSMISSION OIL FILLER, NO.1 35141D - HOSE(FOR BREATHER PLUG) 35141E - RING, O(FOR BREATHER PLUG) 35141F - PLUG, BREATHER, NO.1(CVT) 35141F - PLUG, BREATHER, NO.1(CVT) 35150B - PLUG ASSY, TRANSMISSION CASE 35168C - GASKET, TRANSAXLE OIL PAN(CVT) 35394D - MAGNET, OIL CLEANER(CVT) 35394D - MAGNET, OIL CLEANER(CVT) 35394D - MAGNET, OIL CLEANER(CVT) 35572C - LEVER, TRANSMISSION CONTROL SHAFT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
