TOYOTA RAV4 CHINA ACA37L-ANMXKC / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

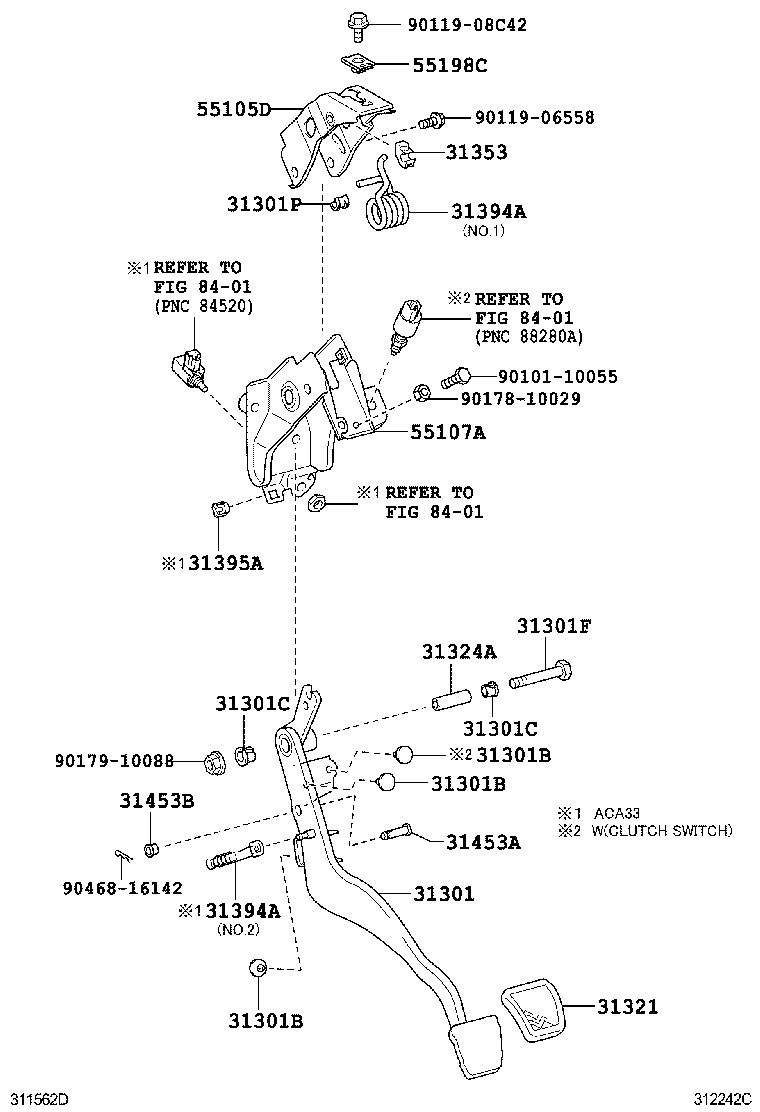

ILLUST NO. 1 OF 2(0903- )5F

RAV4 CHINA | CLUTCH PEDAL FLEXIBLE HOSE 31301 - PEDAL SUB-ASSY, CLUTCH 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) 31321 - PAD, CLUTCH PEDAL 31324A - COLLAR, CLUTCH PEDAL SHAFT 31353 - HOLDER, CLUTCH PEDAL SPRING 31394A - SPRING, PEDAL W/HOOK 31394A - SPRING, PEDAL W/HOOK 31395A - HOOK, PEDAL SPRING, NO.1 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL 55198C - HOLDER, BRAKE AWAY MOUNTING BOLT ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
