TOYOTA RAV4 CHINA ACA37L-ANPXKC / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

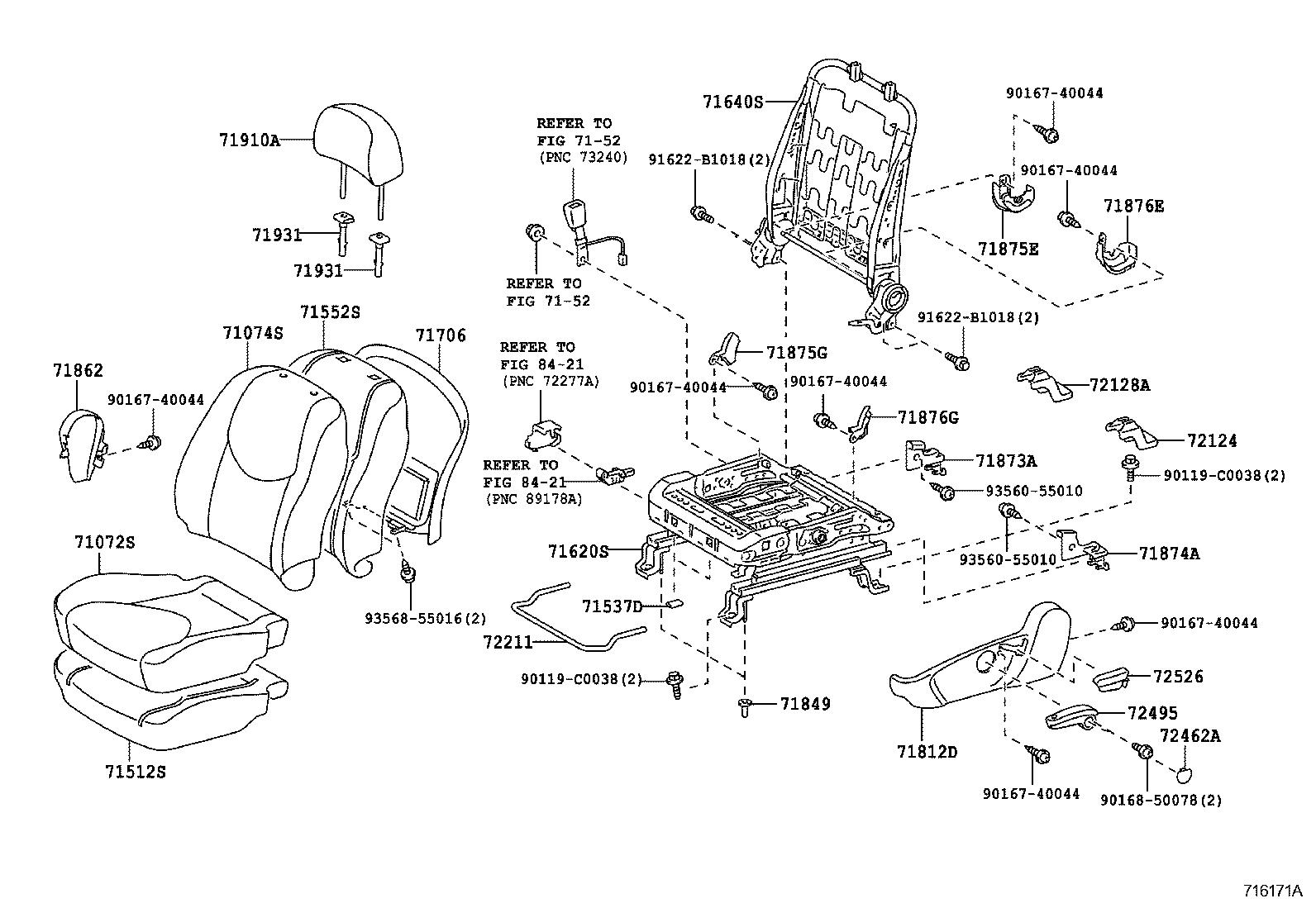

DRIVER SEAT ILLUST NO. 1 OF 3(0903-1108)ACA37

 RAV4 CHINA |  SEAT SEAT TRACK 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71873A - SHIELD, FRONT SEAT CUSHION, LOWER 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875E - COVER, RECLINING ADJUSTER INSIDE, RH 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876E - COVER, RECLINING ADJUSTER INSIDE, LH 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72211 - HANDLE, SEAT TRACK ADJUSTING 72462A - COVER, VERTICAL ADJUSTER LH 72495 - HANDLE, VERTICAL ADJUSTING, LH 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
