TOYOTA RAV4 ALA30R-BWFGRW / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

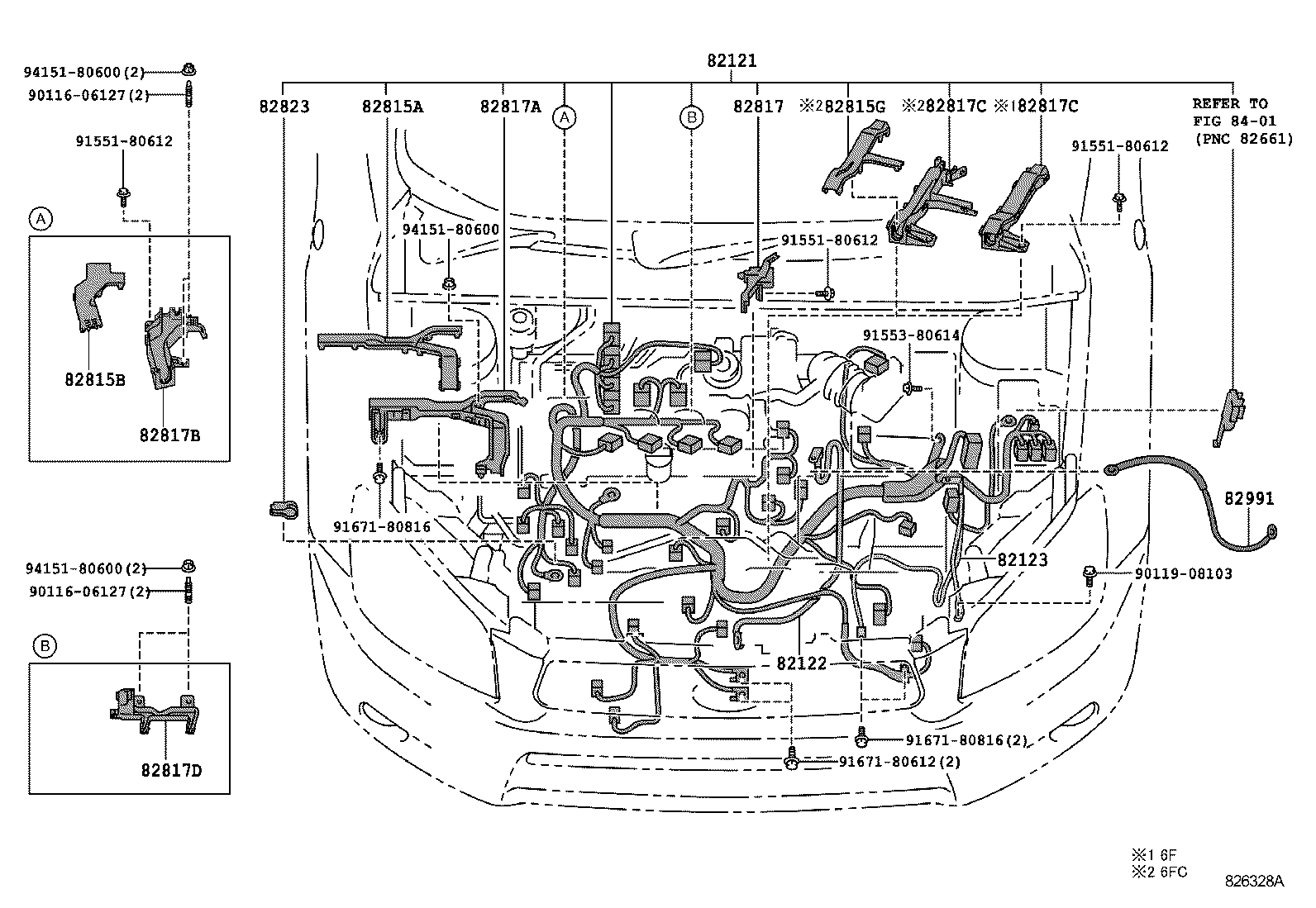

ENGINE ILLUST NO. 2 OF10(0812- )ALA3#

 RAV4 |  WIRING CLAMP 82121 - WIRE, ENGINE 82122 - WIRE, ENGINE, NO.2 82123 - WIRE, ENGINE, NO.3 82815A - COVER, WIRING HARNESS PROTECTOR 82815B - COVER, WIRING HARNESS PROTECTOR 82815G - COVER, WIRING HARNESS PROTECTOR 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817D - PROTECTOR, WIRING HARNESS, NO.5 82823 - CAP, TERMINAL, NO.1 82991 - WIRE, FUSIBLE LINK REPAIR ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
