TOYOTA RUKUS AZE151R-FHPNKQ / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

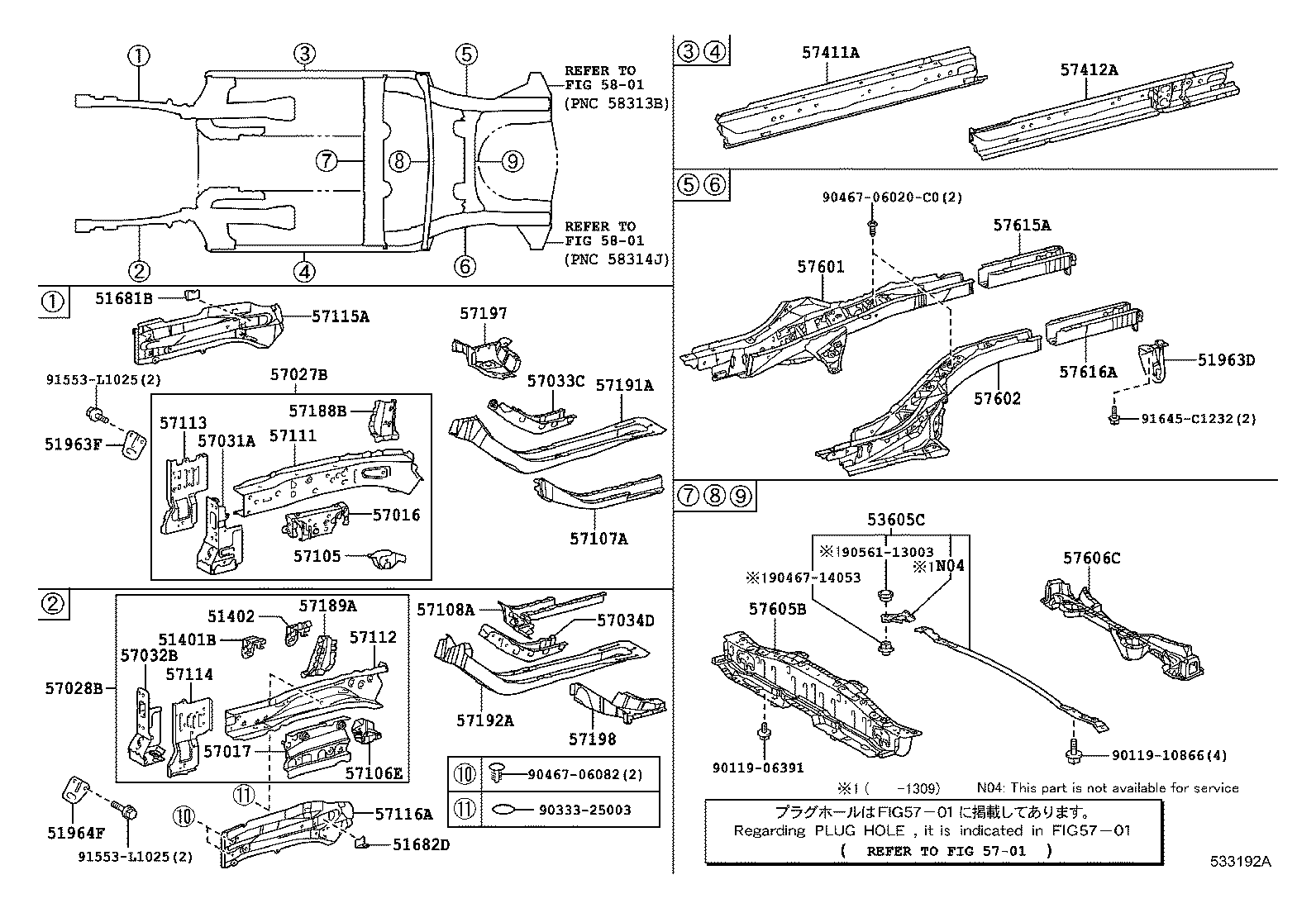

FLOOR SIDE MEMBER

(1003- )

RUKUS | FLOOR SIDE MEMBER 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH 51963D - HOOK, TRANSPORT, REAR LH 51963F - HOOK, TRANSPORT 51964F - HOOK, TRANSPORT, LH 53605C - BRACE SUB-ASSY, REAR FLOOR SIDE MEMBER ** Refer Fig 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH 57191A - MEMBER, FRONT SIDE, INNER REAR RH 57192A - MEMBER, FRONT SIDE, INNER REAR LH 57197 - BOX, TORQUE, FRONT RH 57198 - BOX, TORQUE, FRONT LH 57411A - MEMBER, FLOOR SIDE, INNER RH 57412A - MEMBER, FLOOR SIDE, INNER LH 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57615A - MEMBER, REAR FLOOR SIDE, REAR RH 57616A - MEMBER, REAR FLOOR SIDE, REAR LH ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
