TOYOTA RUKUS AZE151R-FHPNKQ / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT AXLE HOUSING DIFFERENTIAL

U241E (1003- )

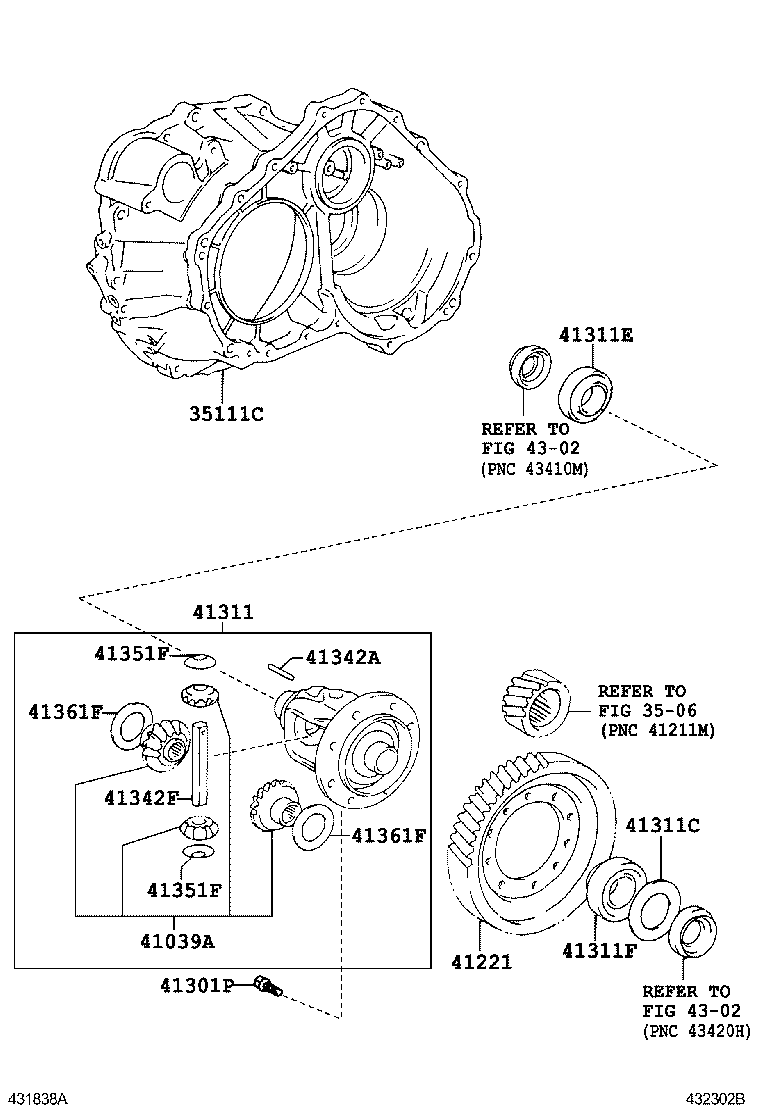

RUKUS | FRONT AXLE HOUSING DIFFERENTIAL ** Refer Fig 35111C - HOUSING, TRANSAXLE 41039A - GEAR KIT, DIFFERENTIAL 41221 - GEAR, FRONT DIFFERENTIAL RING 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) 41311 - CASE, FRONT DIFFERENTIAL 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 ** Refer Fig ** Refer Fig
