TOYOTA RUKUS AZE151R-FHPSKQ / BODY / FRONT DOOR LOCK HANDLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR LOCK HANDLE

(1003- )

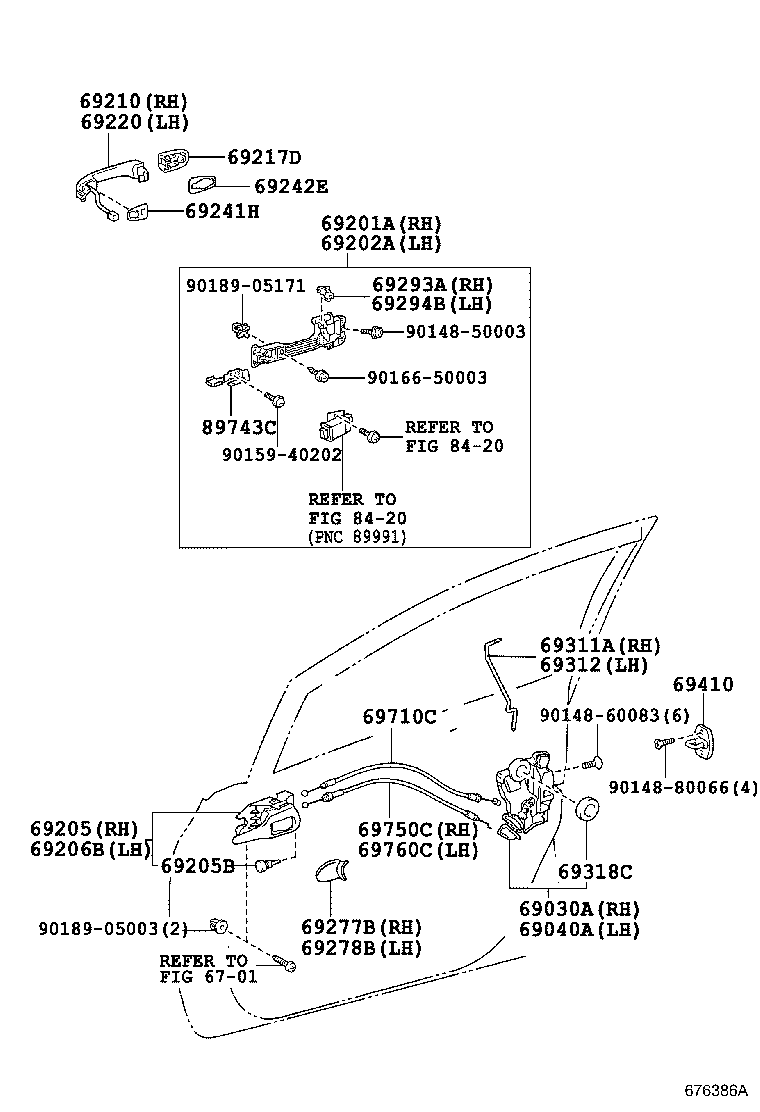

RUKUS | FRONT DOOR LOCK HANDLE ** Refer Fig 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH 69217D - COVER, FRONT DOOR OUTSIDE HANDLE 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH 69311A - ROD, FRONT DOOR LOCK OPEN, RH 69312 - ROD, FRONT DOOR LOCK OPEN, LH 69318C - SEAL, DOOR LOCK WIRING HARNESS 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER 69710C - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH ** Refer Fig ** Refer Fig 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
