TOYOTA SIENNA GSL30L-PFTQKK / POWERTRAIN-CHASSIS / TRANSMISSION CASE OIL PAN ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

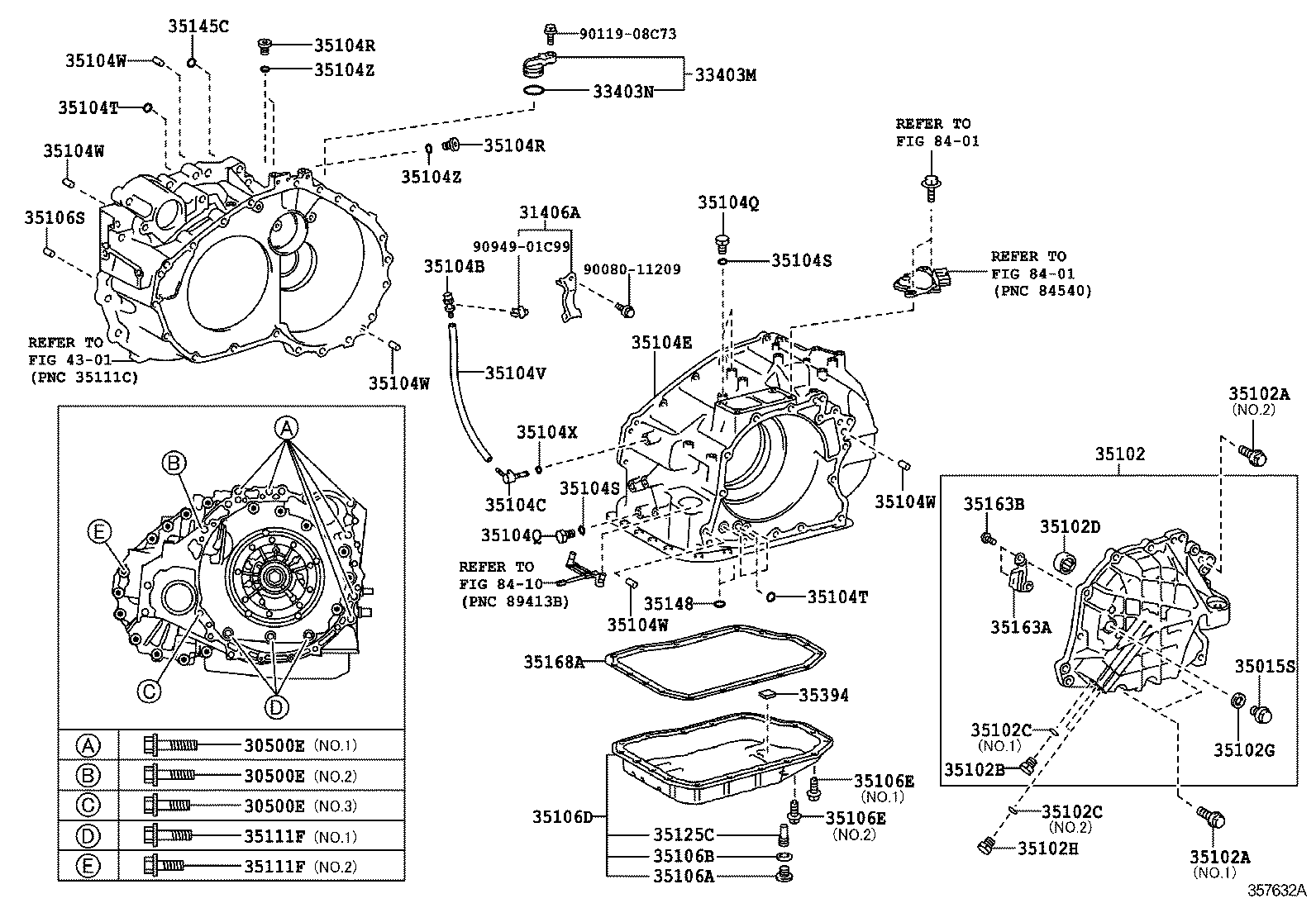

TRANSMISSION CASE OIL PAN ATM

U660E (1109-1202)GSL30

SIENNA | TRANSMISSION CASE OIL PAN ATM 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) 31406A - BRACKET SUB-ASSY, FLEXIBLE HOSE 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) 35015S - PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER) 35102 - COVER SUB-ASSY, TRANSAXLE REAR 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) 35102B - PLUG(FOR TRANSAXLE REAR COVER) 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) 35102D - BEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER) 35102G - GASKET (FOR TRANSAXLE REAR COVER ) 35102H - PLUG, NO.2 (FOR TRANSAXLE REAR COVER) 35104B - PLUG, BREATHER, NO.1 (ATM) 35104C - PLUG, BREATHER, NO.2 (ATM) 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) 35104V - HOSE (FOR BREATHER PLUG) 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) 35104X - RING, O (FOR BREATHER PLUG) 35104Z - GASKET (FOR TRANSAXLE CASE) 35104Z - GASKET (FOR TRANSAXLE CASE) 35106A - PLUG SUB-ASSY, DRAIN (ATM) 35106B - GASKET, DRAIN PLUG (ATM) 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL 35106E - BOLT (FOR TRANSAXLE OIL PAN) 35106E - BOLT (FOR TRANSAXLE OIL PAN) 35106S - PIN, RING (FOR TRANSAXLE CASE) 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) 35125C - TUBE, TRANSMISSION OIL FILLER, NO.1 35145C - GASKET, TRANSAXLE CASE 35148 - GASKET, GOVERNOR APPLY, NO.1 35163A - PLATE, TRANSAXLE REAR COVER 35163B - SCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE) 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
