TOYOTA SIENNA GSL30L-PFTQKK / POWERTRAIN-CHASSIS / THROTTLE LINK VALVE LEVER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

THROTTLE LINK VALVE LEVER ATM

U660E (1109- )GSL3#

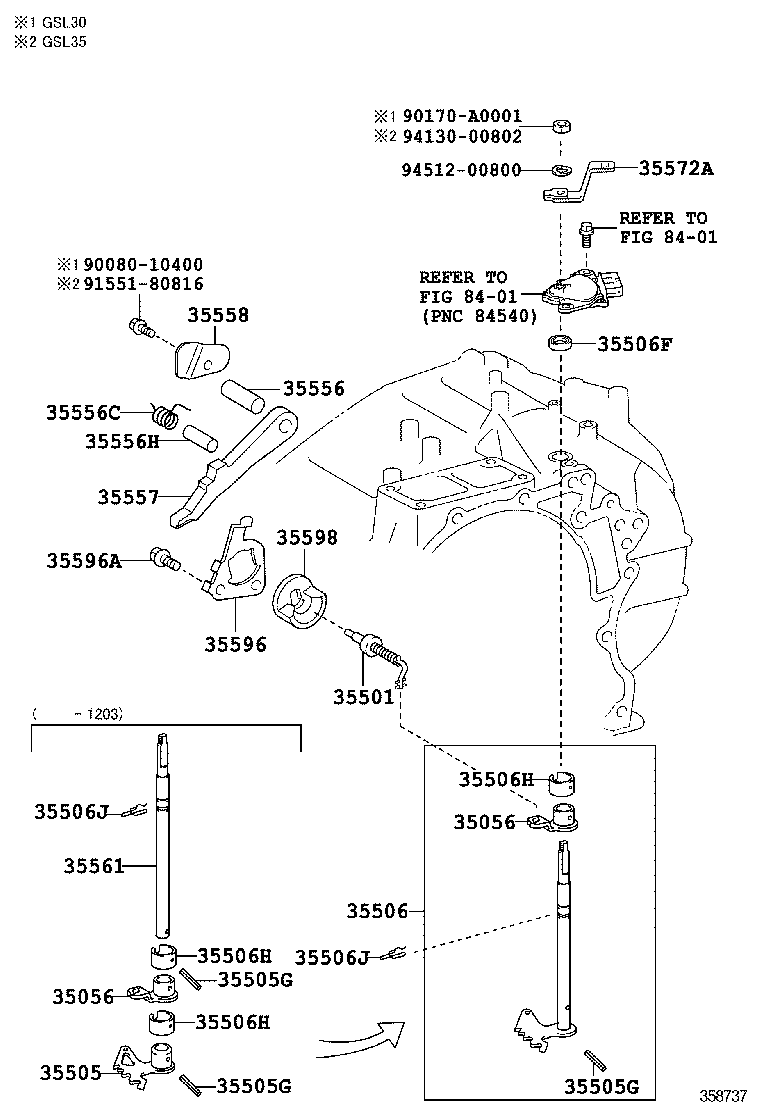

SIENNA | THROTTLE LINK VALVE LEVER ATM 35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER 35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER 35501 - ROD SUB-ASSY, PARKING LOCK 35505 - LEVER SUB-ASSY, MANUAL VALVE 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) 35556 - SHAFT, PARKING LOCK PAWL 35556C - SPRING, TORSION (FOR PARKING LOCK PAWL SHAFT) 35556H - SHAFT, PARKING LOCK PAWL 35557 - PAWL, PARKING LOCK 35558 - CLAMP, PAWL SHAFT 35561 - SHAFT, MANUAL VALVE LEVER 35572A - LEVER, TRANSMISSION CONTROL SHAFT 35596 - PLATE, PAWL STOPPER 35596A - BOLT (FOR PAWL STOPPER PLATE) 35598 - SLEEVE, PARKING LOCK ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
